Work Surface Components

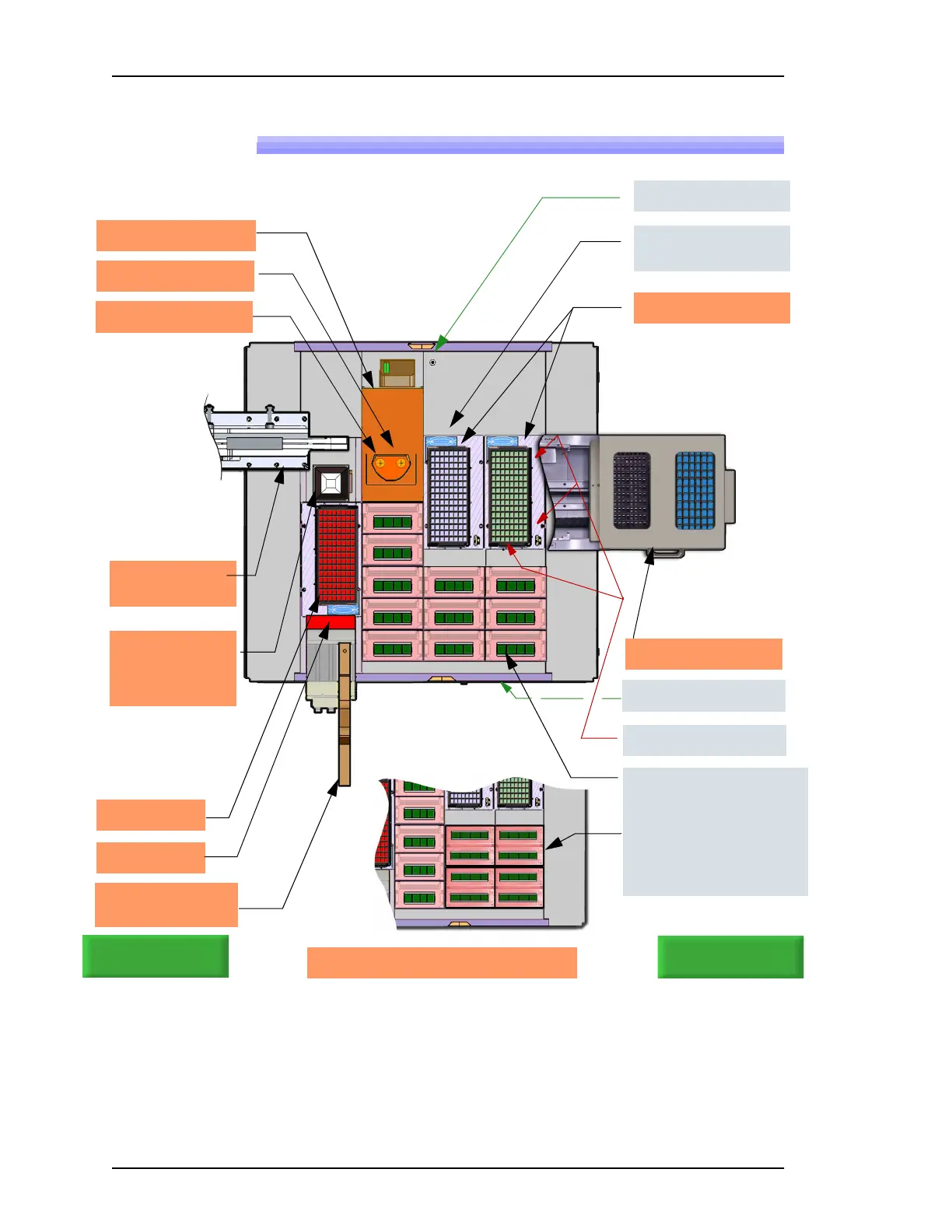

Figure 2: Some features on the PSV7000 work surface—
shown here with static trays and 11 programmers.
1
The system can be configured with a reject tray or a reject bin or both
except when 3D Inspection Model UX is installed. Note that the static
trays and Dual Tray Feeder would not both be used. (Refer to Owner’s
Manual or on-screen Help).
ïThe Big Picture
Tray-capture
magnet (3)
The Power Panel ð
Laser Rotor (rotates)
Laser Module
Antistatic connection
Reject Bin
1
Reject Tray
1
Tape-In Module
(Tape Feeder)
FlashCORE Programmers
(11 shown)
LumenX Programmers (4
shown) with some Flash-
CORE. See page 4.
Input & Output Trays
Tray alignment pins
Antistatic connections
Tape-Output
Module
3D-Lead Inspec-
tion System.
Model VX shown.
This label color = Optional equipment
Laser Rotor tips (2)
Dual Tray Feeder EX
