■ PSV7000 Machine Components ◘ Programmer Overview
PSV7000 Operator’s Manual —5—
back
FlashCORE
FlashCORE III is a robust programming engine supplied in the
PS-Family of products. Each programmer requires an Actuator Plate
and a Socket Adapter for the specific device package being pro-
grammed. Socket Adapter can have up to four sockets on them.

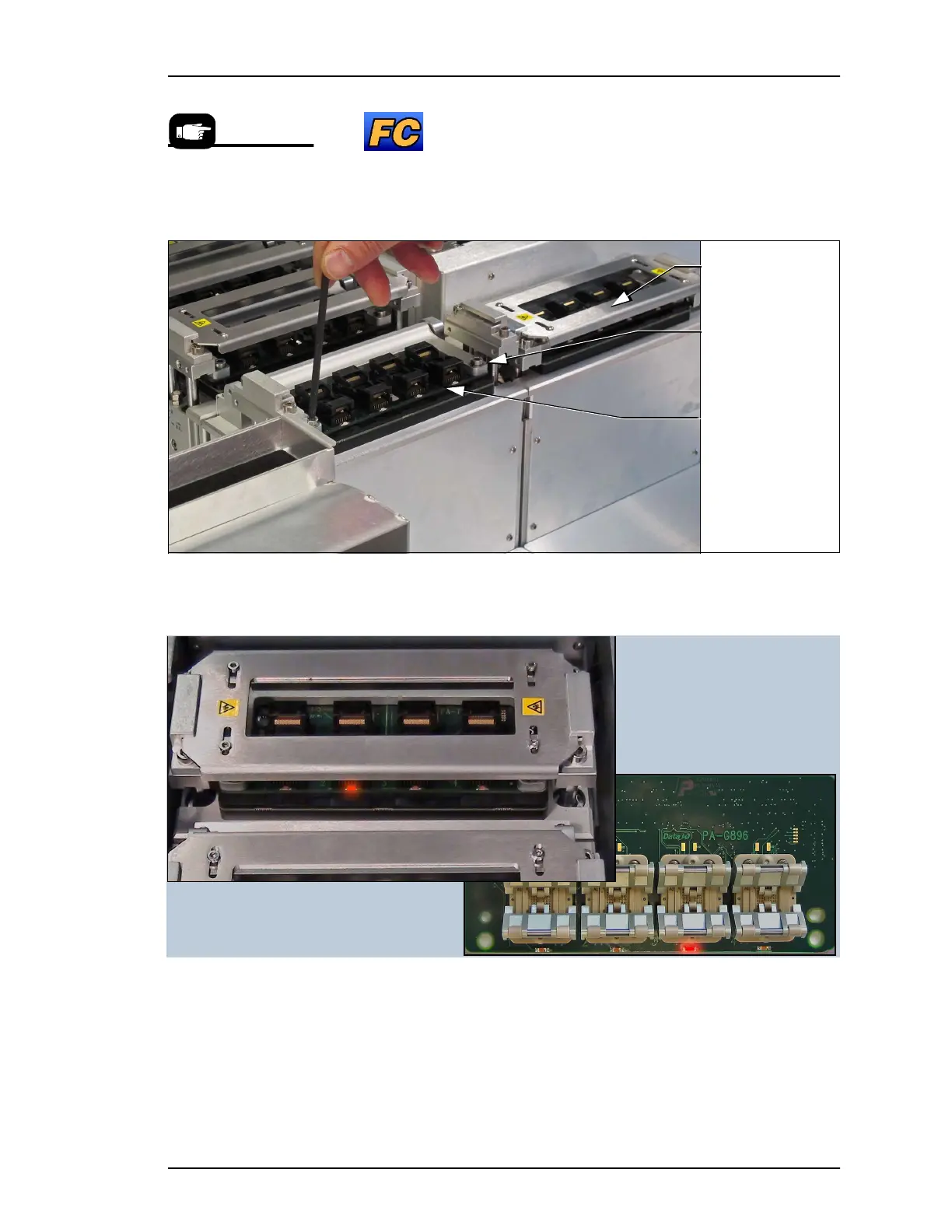

Figure 6: FlashCORE III programmers.
LED Interpretation on FlashCORE Programmers
Figure 7: Each FlashCORE Socket Adapter has one red LED per socket.
A) Standard Adapter; socket 2 has failed. B) HIC Adapter. Socket 3 has
failed. The Actuator Plate is not shown on the HIC Adapter for clarity.
Steady Red = FAILED PROGRAMMING
Jobs for FC program-
mers are created with
TaskLink Software.
One Actuator Plate
each
Socket Adapter
clamp
One Socket
Adapter each
A
B
