1-6 Dispense Area
1-6-1 AutoLab TF 40/80/120/160 System
1-6-1-1 Water Dispensing

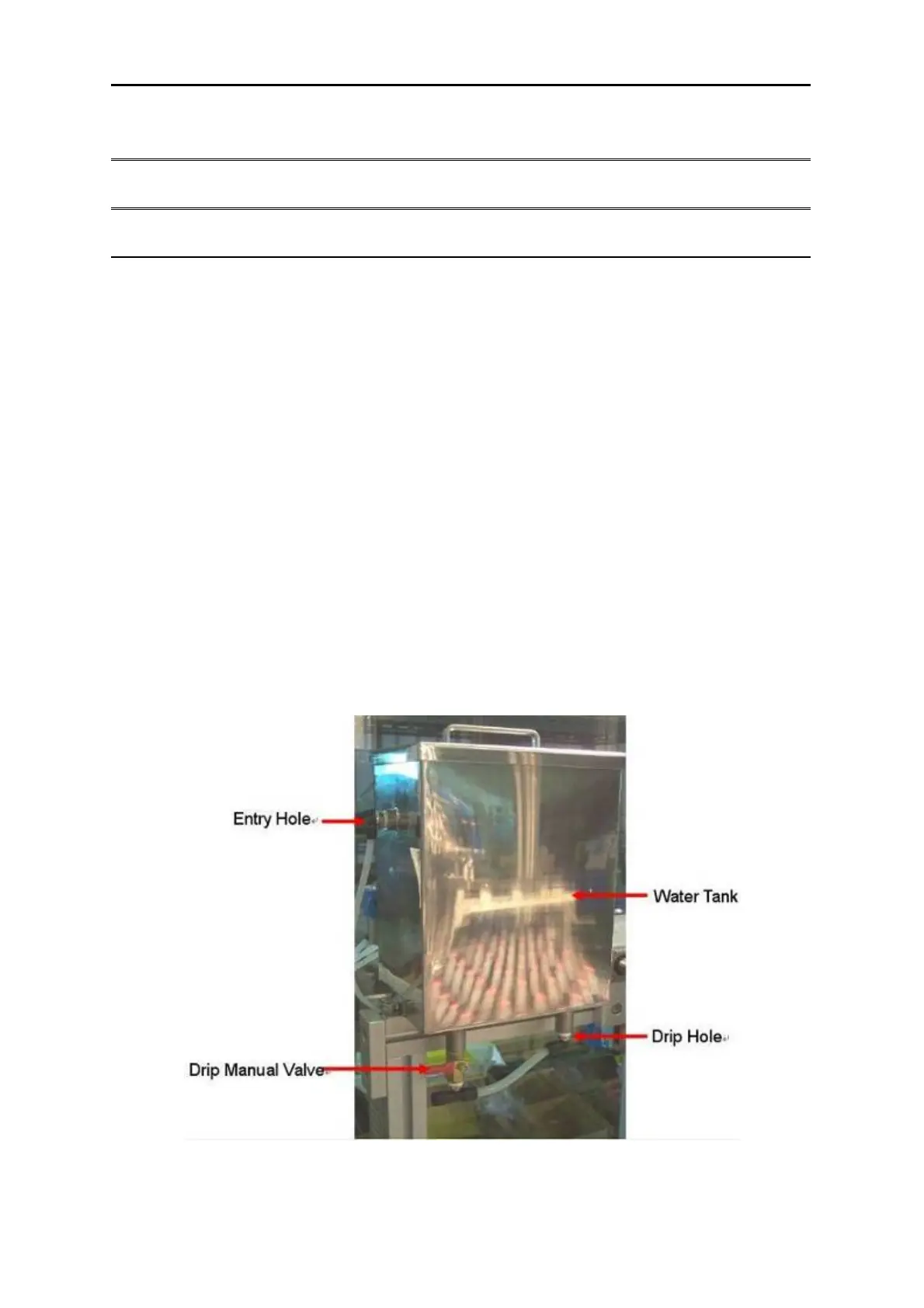

Water tank
This water tank with level sensor and automatic refill, and the capacity is 7 litres.
Over flow tube
For overflow, in case of refill control errors, water will be able to flow away from the tube.
Drain cock valve
For open the drain manually.
Dispense Valve
For dispense water.
Dye Pot Tray sensor
For detect type of dye pot tray, up to 4 types of dye pot trays can be identified
Balance up/down air cylinder
This device is used to control balance up/down.
Outlet container push air valve
This device is used to control the cylinder that move the outlet container push bar to
front and back position.
