AutoLab TF Dispenser Technical Manual – Revision 5
AutoLab TF dispensers Technical Manual TFTMTF / Rev 5.0 / 24
th
May 2006 Page 43 of 150

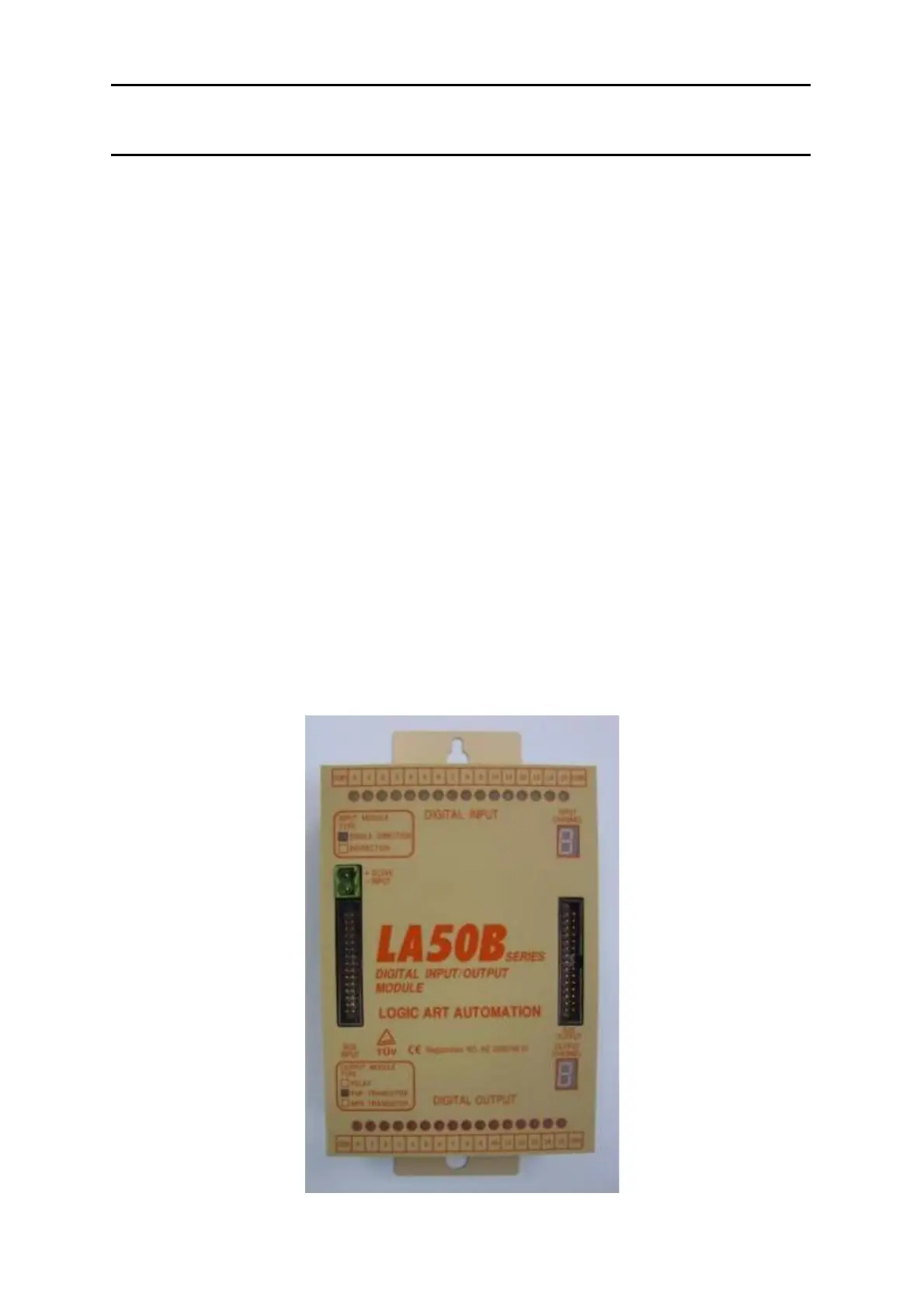

2-2-8 LA 50B D.I.O（PNP）Module
LA50B D.I.O（PNP） module controls all digital signal input/output of AutoLab TF. There are
two parts of this module. Top is digital input (green light) and below is digital output (red light).
The digital input is used to detect the situation of signal input units. For example, the position
of the cylinder, Magnetic Sensor, container type detect, limit switch, approach sensor and
level sensor. The digital output is controlled by transistor. There are advantages of high speed
switch, no wasting etc.
DIGITAL INPUT
Connect the input point
DIGITAL OUTPUT
Connect the output point
DC 24V INPUT
Power input
BUS INPUT
Connect the upper module
BUS OUTPUT
Connect the lower module
INPUT CHANNEL
Show the ID of this module. Normally the input ID and output Id are the same.
OUTPUT CHANNEL
Show the ID of this module. Normally the input ID and output Id are the same.
