AutoLab TF Dispenser Technical Manual – Revision 5
AutoLab TF dispensers Technical Manual TFTMTF / Rev 5.0 / 24
th
May 2006 Page 42 of 150
Note:
1. There are two versions of LA50B CPU for AutoLab TF and SPS systems. Please refer to below
pictures to show the different between the two. From the outer appearance there is a yellow label
“LA600” on original LA50B CPU. And the newer CPU has a label “600+N2” on it
2. All shipments delivered after the date August 23rd 2004 use the new design CPU module. The new
design CPU has no difference in functionality, just improved design.
3. The part numbers of CPUs are as follows:
TF-0022-0502 LA50B CPU (600) used for TF-40/80/120/160.
TF-0022-0503 LA50B CPU (600) used for TF-88/128/168.
TF-0022-0504 LA50B CPU (600) used for SPS.
TF-0022-1502 LA50B CPU (600+N2) used for TF-40/80/120/160.
TF-0022-1503 LA50B CPU (600+N2) used for TF-88/128/168.
TF-0022-1504 LA50B CPU (600+N2) used for SPS.

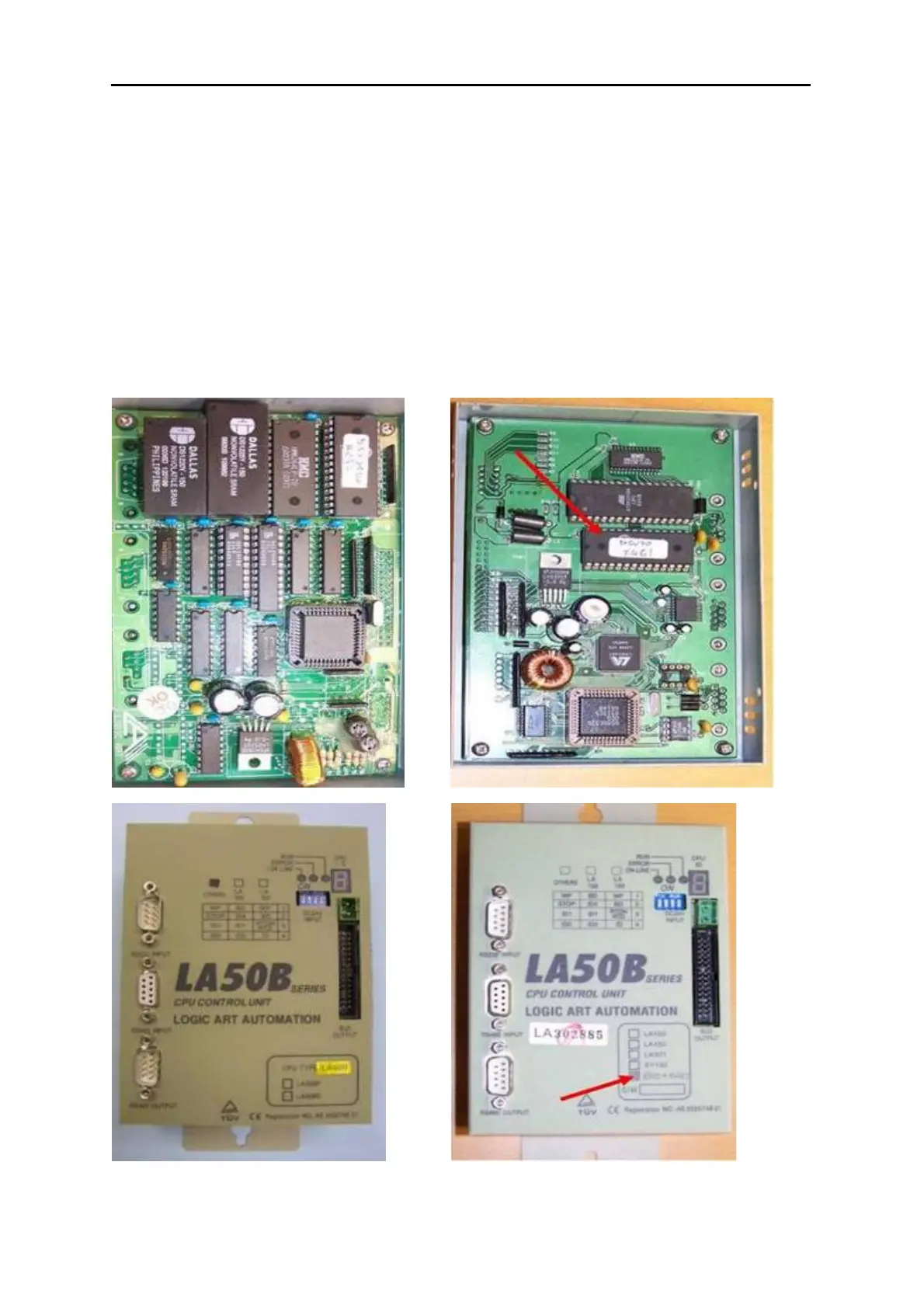

Inner layout of original LA50B CPU (LA600) Inner layout of new LA50B CPU (600+N2)
Outer appearance of original LA50B CPU Outer appearance of new LA50B CPU
