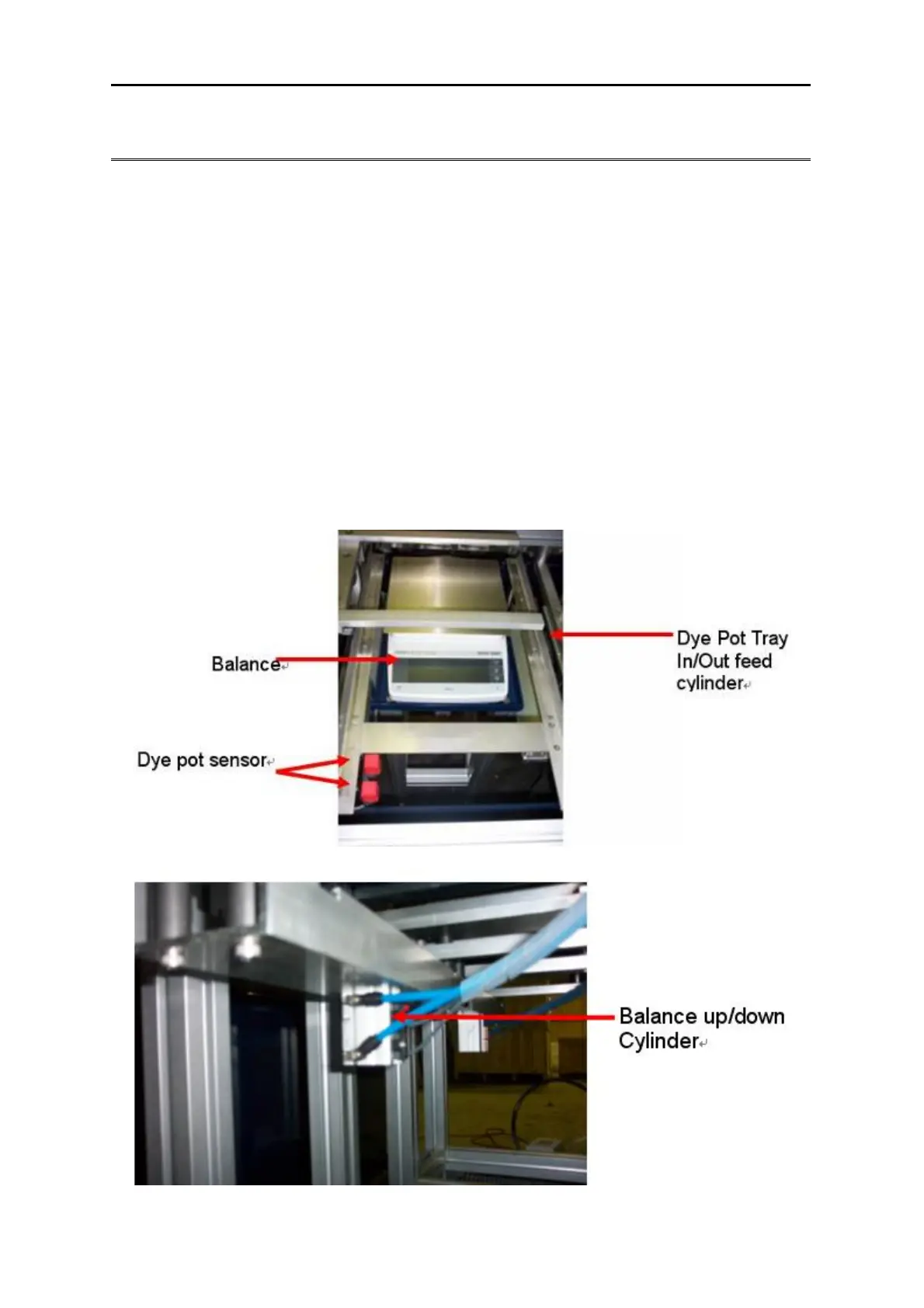

1-6-1-2 Dyepot tray movement
Ack button
Push the button moving dye pot to and out the scale position.
Air regulator
For set the air pressure. The pressure should be within the range of 4.5~ 6.0 kg/cm
2
Air valves of water dispensing head
The 5-3 solenoid valve is used to control the front, middle and back dispense head.
Air valve of dyepot tray up/down
The 5-2 solenoid valve is used to control the cylinder movement of upward and
downward.
Air valve of dye pot tray
The 5-1 solenoid valve is used to control the movement of dye pot cylinder
