Enter/Exit Programming Mode PDF417
232 Gryphon™ I GD/GBT/GM4500
PDF417 Set Length 2
This feature specifies one of the bar code lengths for PDF417 Length Control on
page 230
. Length 2 is the maximum label length if in Variable Length Mode, or
the second fixed length if in Fixed Length Mode. Length includes the bar code’s
c
heck, data, and full-ASCII shift characters. The length does not include start/
stop characters. Characters can be set from 01 to 2,710 characters (pad with
zeroes) in increments of 01. Any value greater than 2,710 will be considered to
be 2,710.
See
page 303 for detailed instructions on setting this feature.

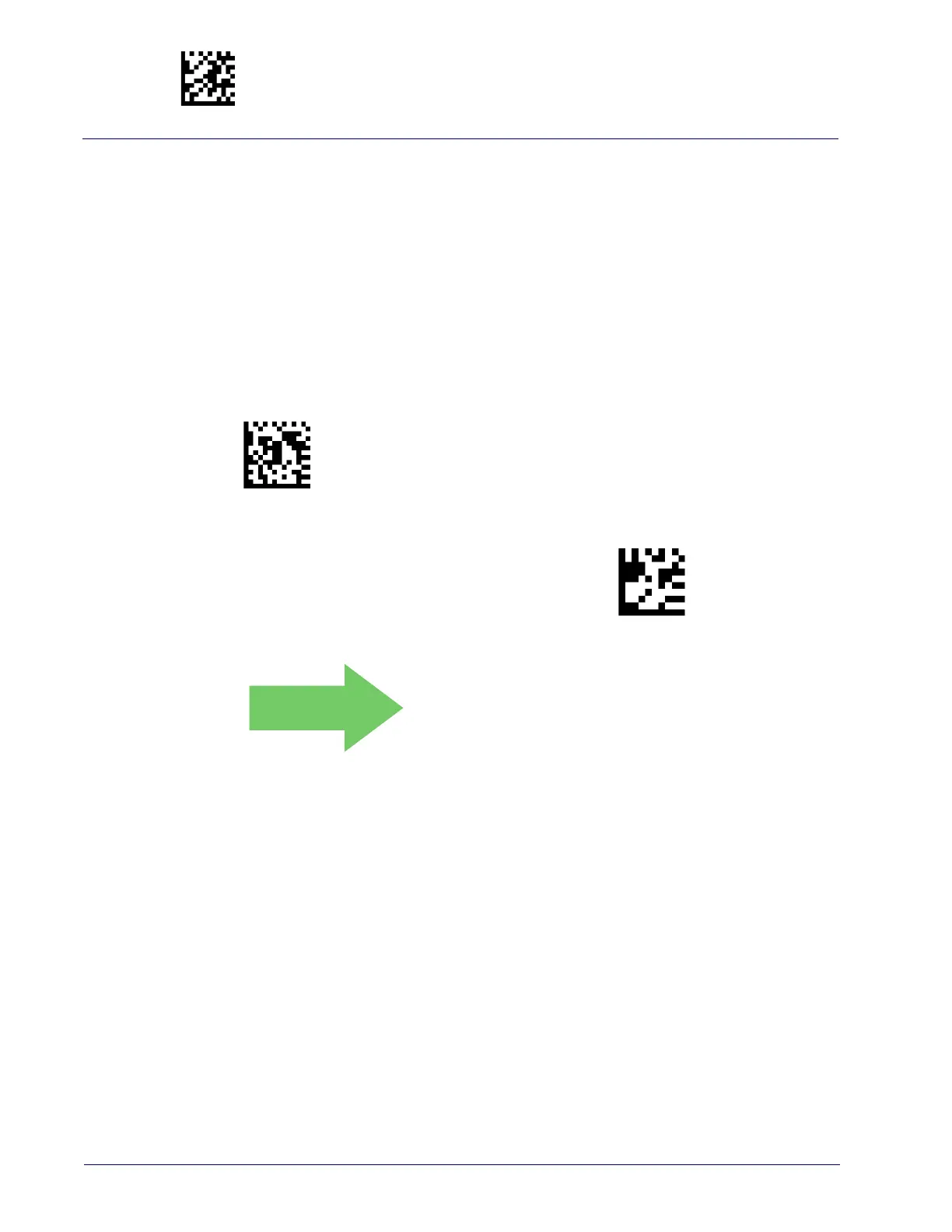

Select PDF417 Length 2 Setting
To configure this feature, scan the ENTER/EXIT PRO-
GRAMMING MODE bar code above, then the bar code at
left follow
ed by the digits from the Alphanumeric char-
acters in
Appendix D, Keypad
representing your
desired character(s). End by scanning the ENTER/EXIT
bar code again.
Make a mistake? Scan the CANCEL bar code to abort and
not save
the entry string. You can then start again at the
beginning.
CANCEL
DEFAULT
Length 2 is 2,710 Characters
To Next Page
