Datalogic Gryphon I GBT4500 Product Reference Guide

Standard Cable Pinouts
Product Reference Guide 317
Standard Cable Pinouts

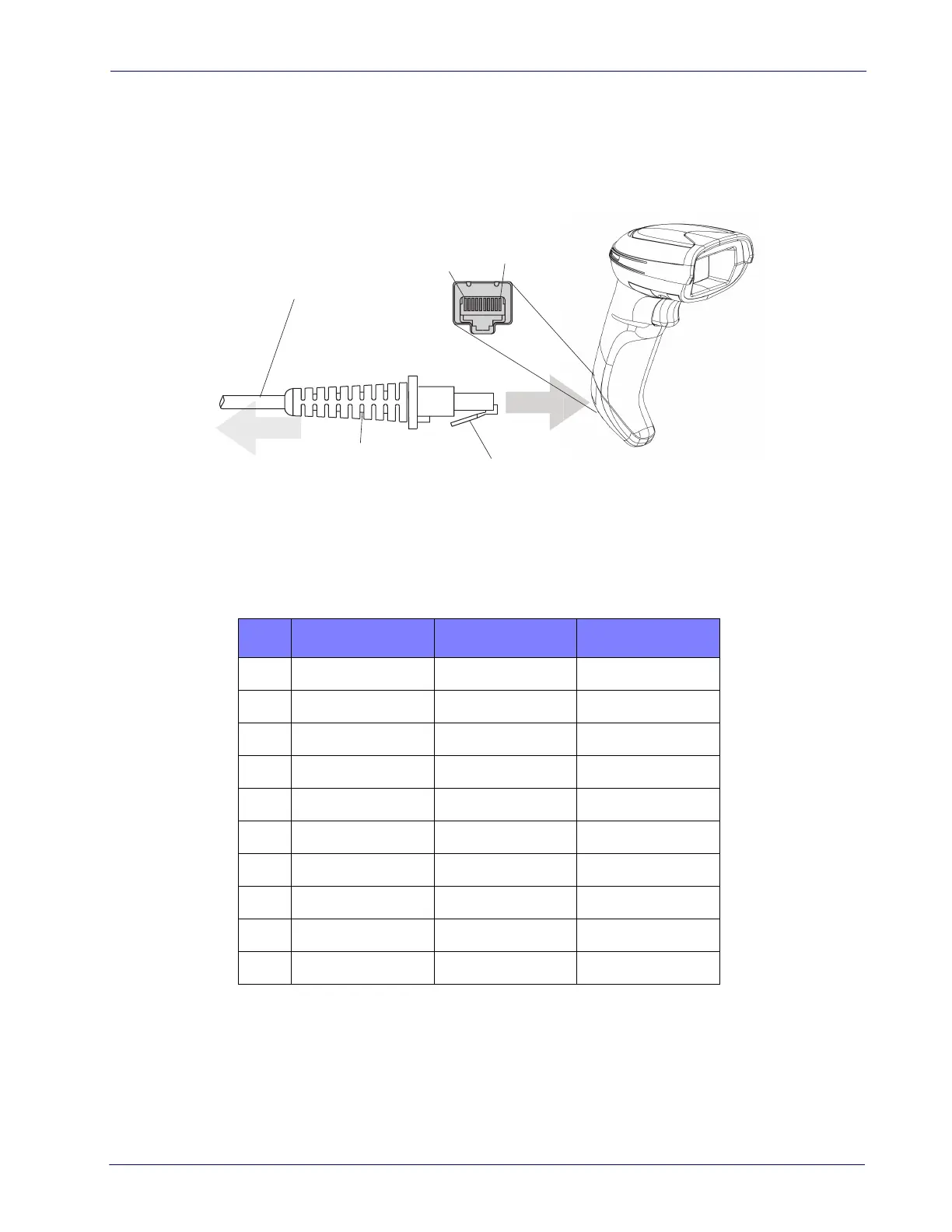

Figure 22 and Table 29 provide standard pinout information for the scanner’s
cable.
Figure 22. Standard Cable Pinouts
The signal descriptions in Table 29 apply to the connector on the scanner and
are for reference only.
Table 29. Standard Cable Pinouts — Scanner Side
Pin RS-232 USB Keyboard Wedge
1 RTS (out)
2 D+ CLKIN (KBD side)
3 D- DATAIN (KBD side)
4 GND GND GND
5 RX
6 TX
7 VCC VCC VCC
8 CLKOUT (PC side)
9 DATAOUT (PC side)
10 CTS (in)
Cable Clip (Latch)
To Host
Cable
Cable Strain Relief
Interface Cable Port
Pin 1
Pin 10
