Case Conversion

Product Reference Guide

117

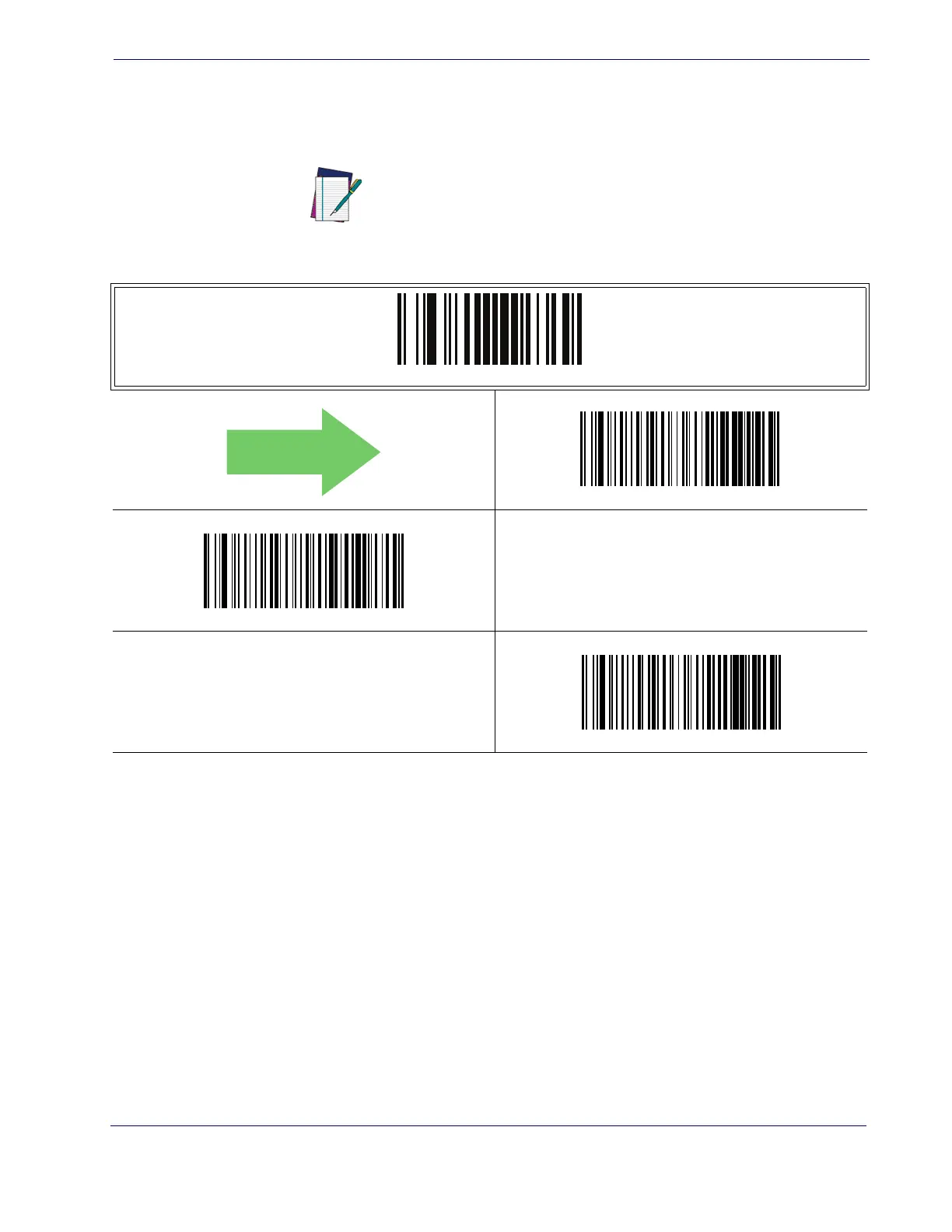

Case Conversion

This feature allows conversion of the case of all alphabetic characters to upper or lower

case.

NOTE

Case conversion affects ONLY scanned barcode data, and does not

affect Label ID, Prefix, Suffix, or other appended data.

ENTER/EXIT PROGRAMMING MODE

Case Conversion = Disable (no case conversion)

Case Conversion = Convert to upper case

Case Conversion = Convert to lower case

DEFAULT
