Symbologies

184 QuickScan® QD2100

Code 32 (Italian Pharmaceutical) — cont.

Code 32 Check Character Transmission

Enable this option to transmit the check character along with Code 32 barcode data.

Code 32 Start/Stop Character Transmission

This option enables/disable transmission of Code 32 start and stop characters.

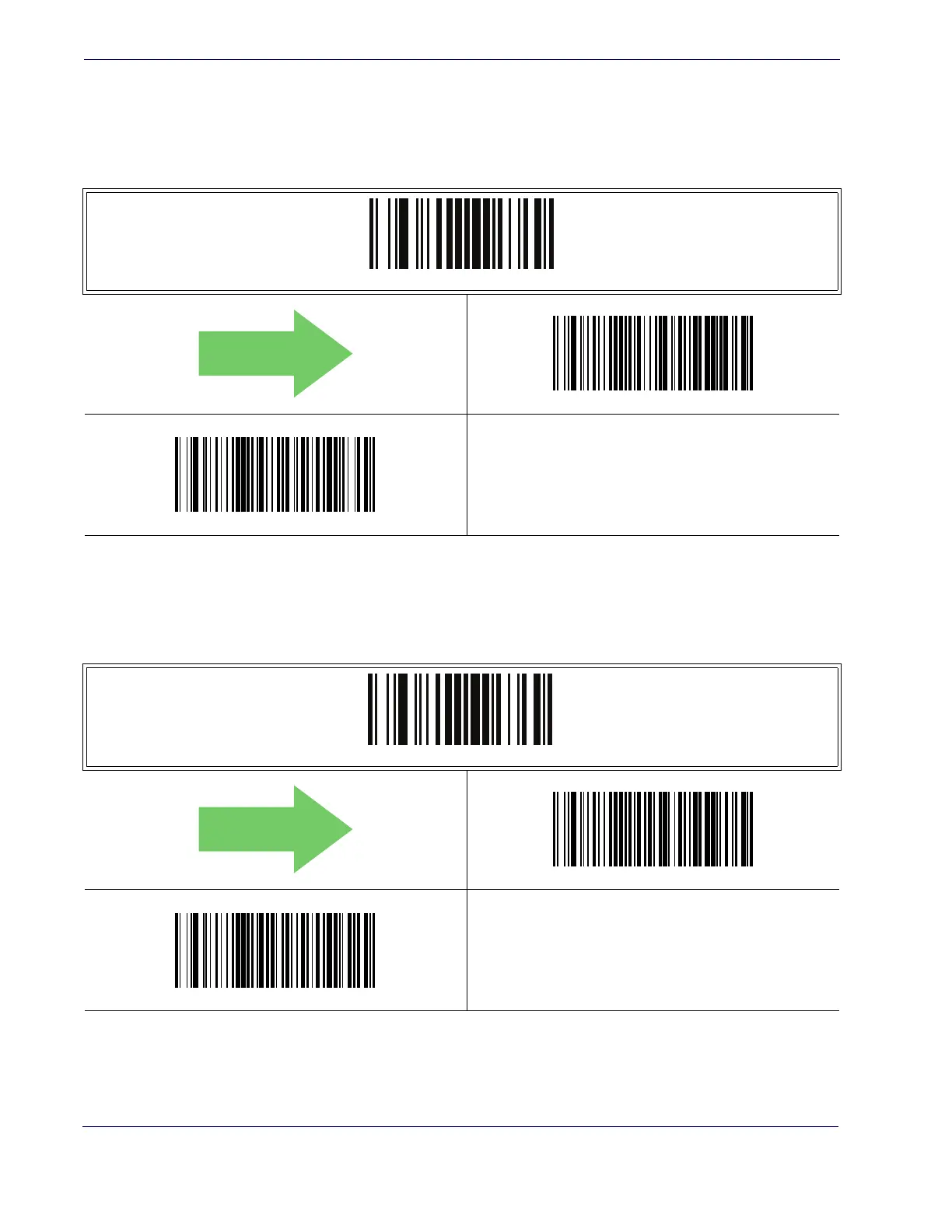

ENTER/EXIT PROGRAMMING MODE

Code 32 Check Character Transmission = Don’t Send

Code 32 Check Character Transmission = Send

DEFAULT

ENTER/EXIT PROGRAMMING MODE

Code 32 Start/Stop Character Transmission = Don’t Transmit

Code 32 Start/Stop Character Transmission = Transmit

DEFAULT
