Code 128

Product Reference Guide

189

Code 128 — cont.

Code 128 Quiet Zones

This feature specifies the number of quiet zones for Code 128 labels. Quiet zones are

blank areas at the ends of a barcode and are typically 10 times the width of the narrowest

bar or space in the label.

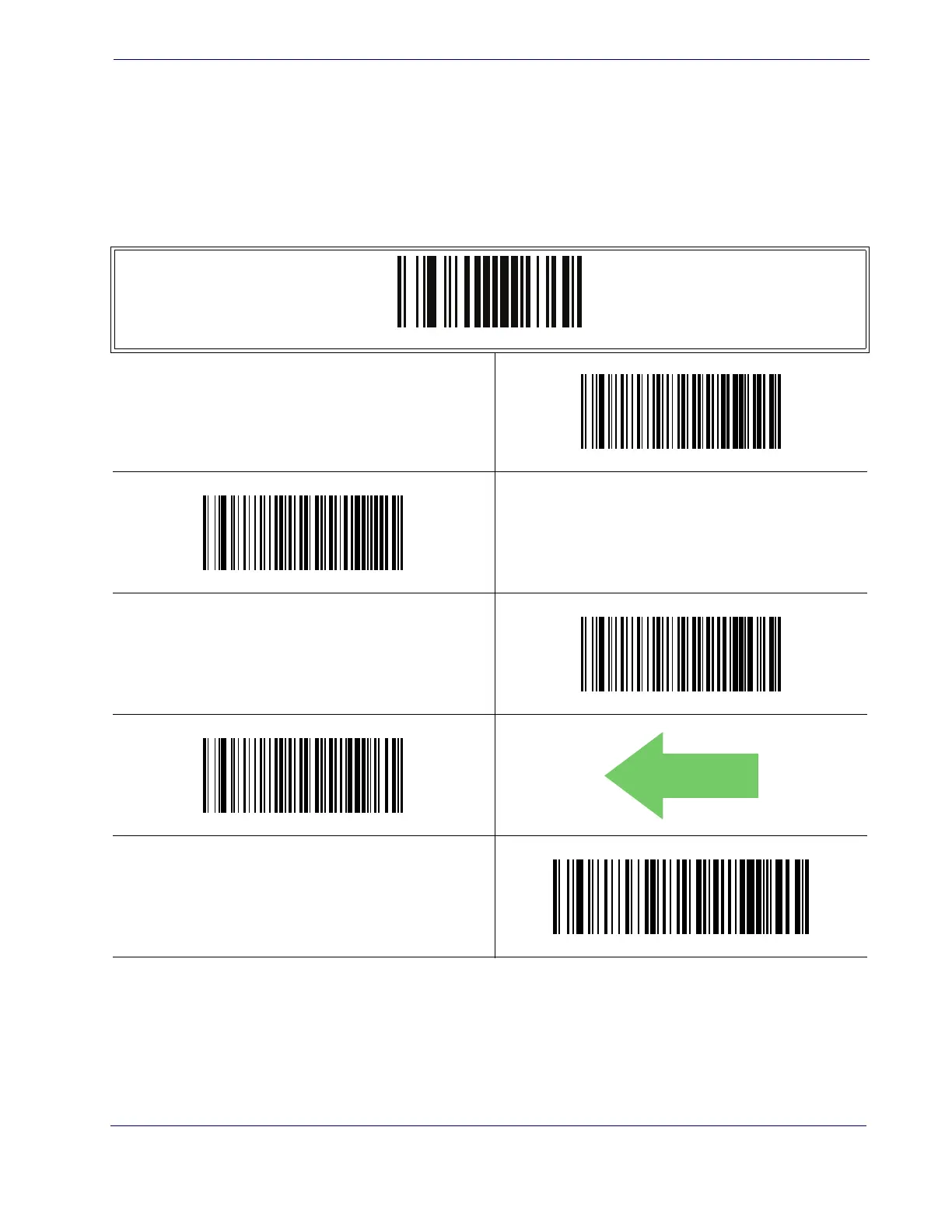

ENTER/EXIT PROGRAMMING MODE

Code 128 Quiet Zones = No Quiet Zones

Code 128 Quiet Zones = Quiet Zone on one side

Code 128 Quiet Zones = Quiet Zones on two sides

Code 128 Quiet Zones = Auto

Code 128 Quiet Zones = Virtual Quiet Zones on two sides

DEFAULT
