Code 39

Product Reference Guide

181

Code 39 — cont.

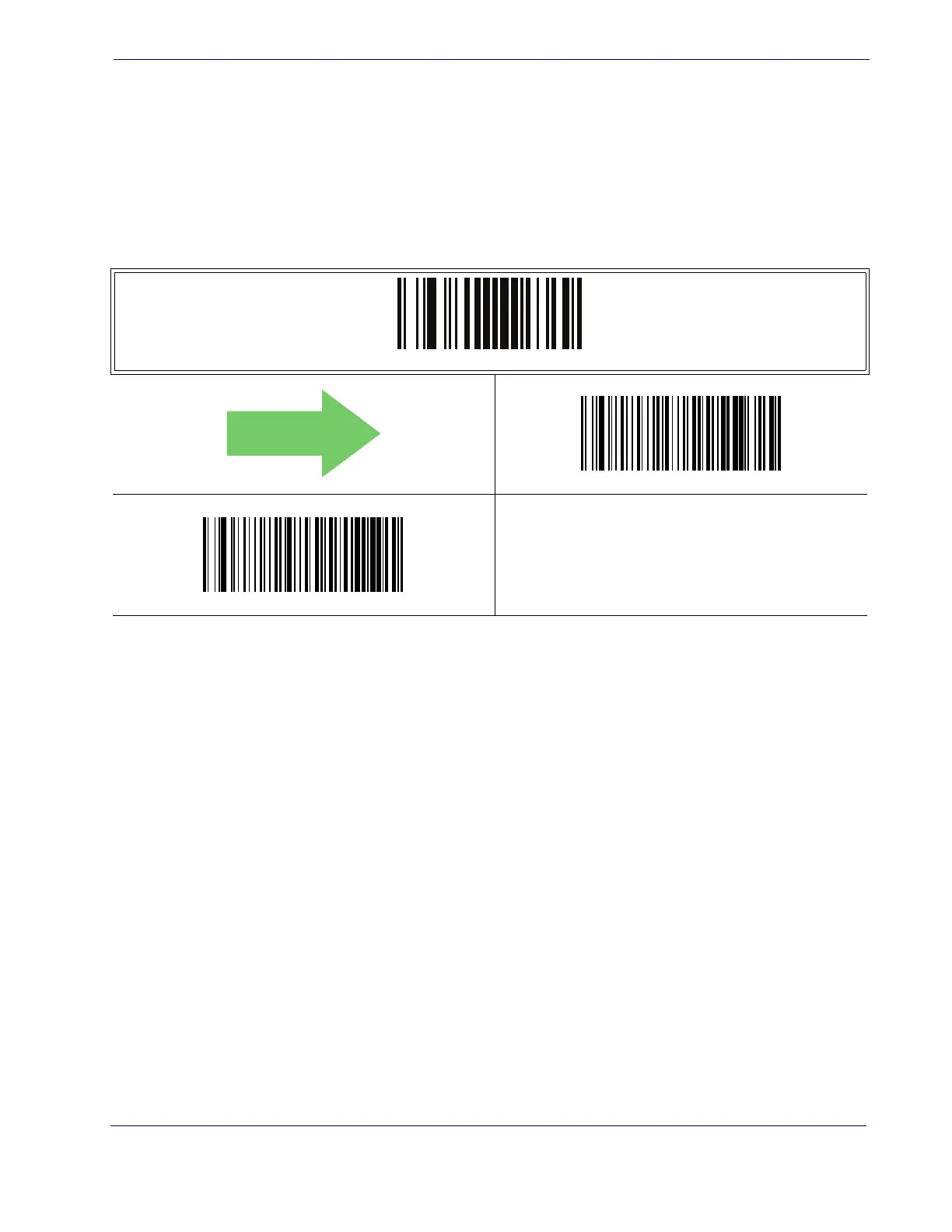

Code 39 Character Correlation

When correlation is enabled, the barcode reader will combine label data from multiple

scans when decoding. Enabling correlation will help the scanner read labels that have

some spots and/or voids. It may also help read labels that have damaged areas. Enabling

correlation will also increase the chances that a label will be read incorrectly.

ENTER/EXIT PROGRAMMING MODE

Code 39 Character Correlation = Disable

Code 39 Character Correlation = Enable

DEFAULT

Default Chapter1
