Industrial 2 of 5

Product Reference Guide

273

Industrial 2 of 5 — cont.

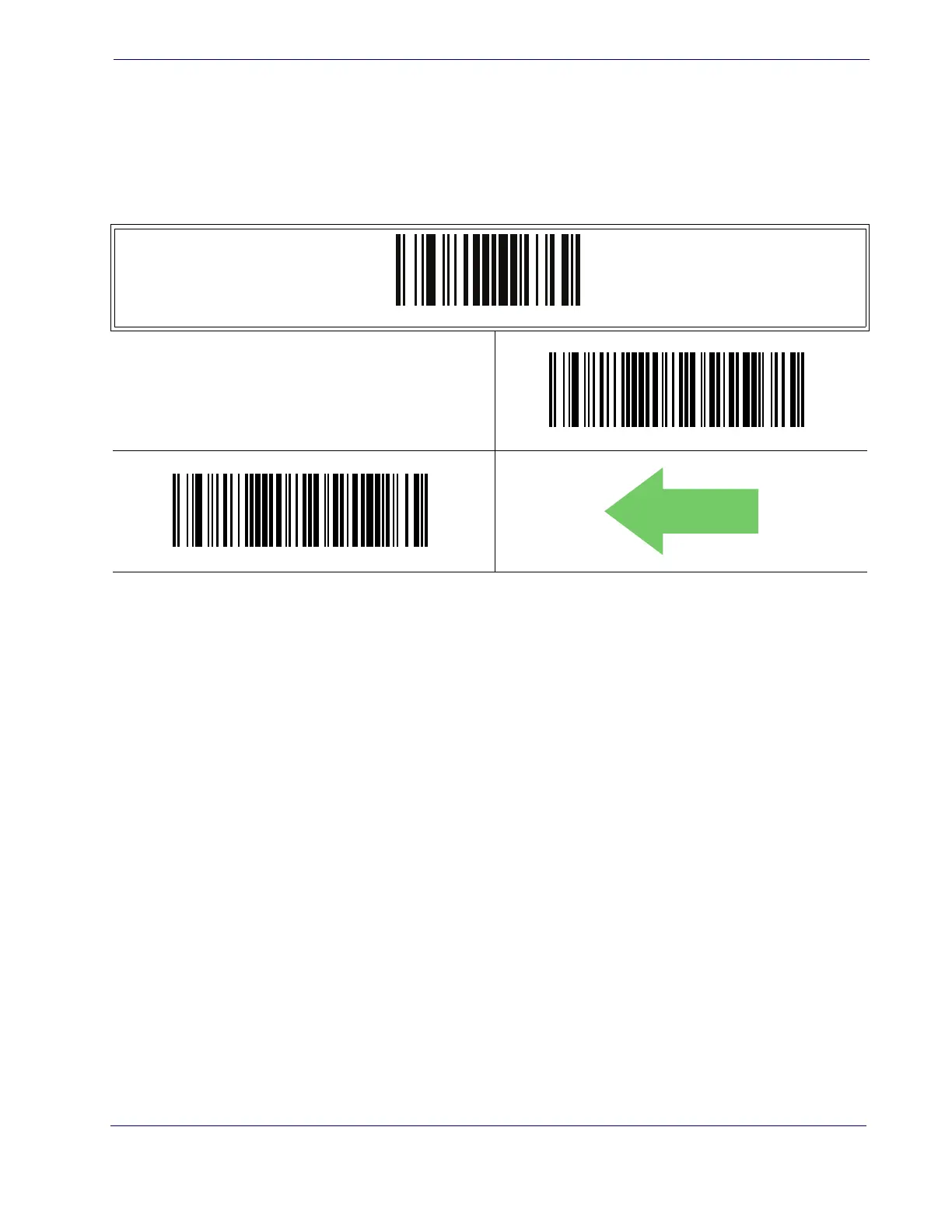

Industrial 2 of 5 Check Character Transmission

Enables/disables transmission of an Industrial 2 of 5 check character.

ENTER/EXIT PROGRAMMING MODE

Industrial 2 of 5 Check Character Transmission = Disable

Industrial 2 of 5 Check Character Transmission = Enable

DEFAULT

Default Chapter1
- Product Reference Guide1
- Table of Contents3
