Symbologies

230 QuickScan® QD2100

Codabar — cont.

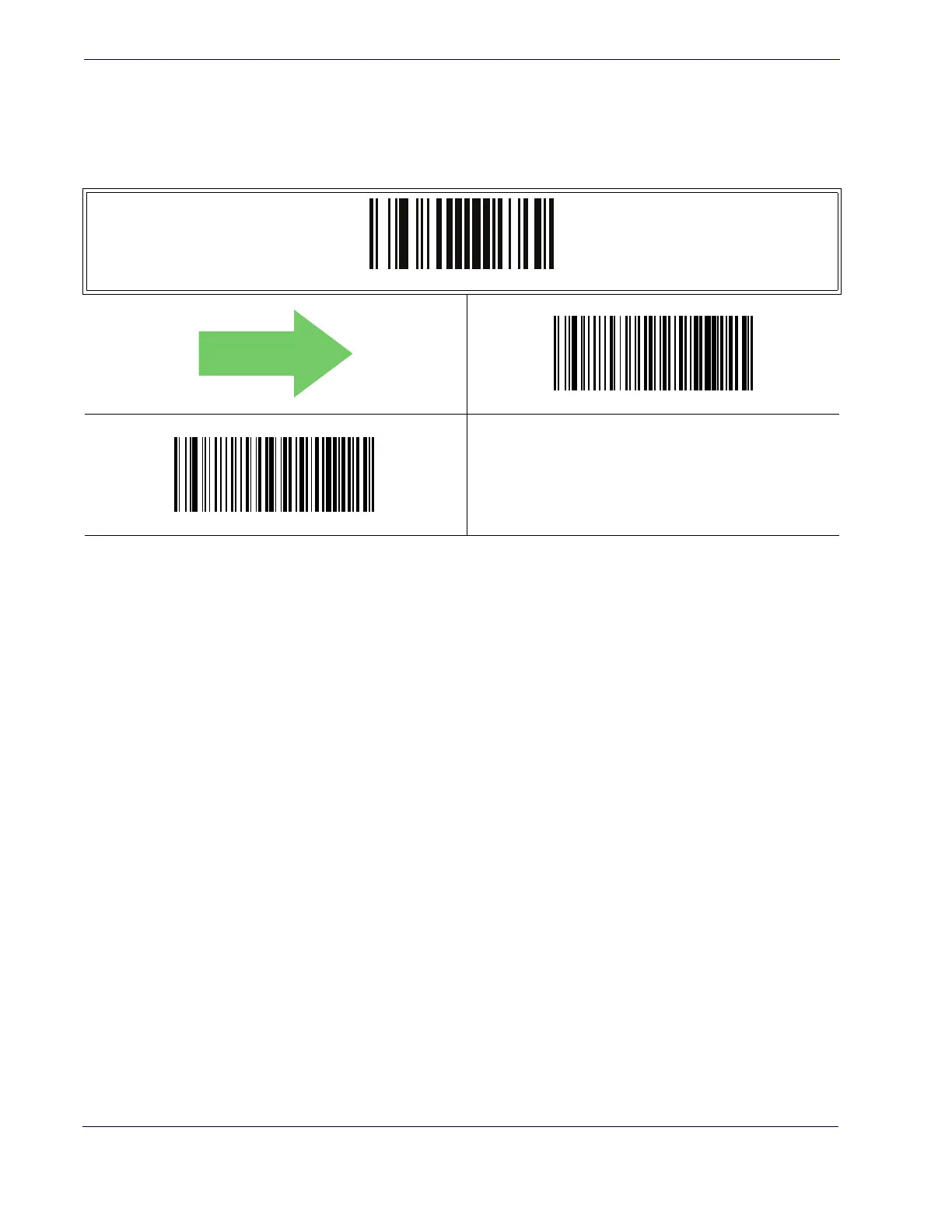

Codabar Start/Stop Character Match

When enabled, this option requires that start and stop characters match.

ENTER/EXIT PROGRAMMING MODE

Codabar Start/Stop Character Match = Don’t Require Match

Codabar Start/Stop Character Match = Require Match

DEFAULT
