Code 11

Product Reference Guide

247

Code 11

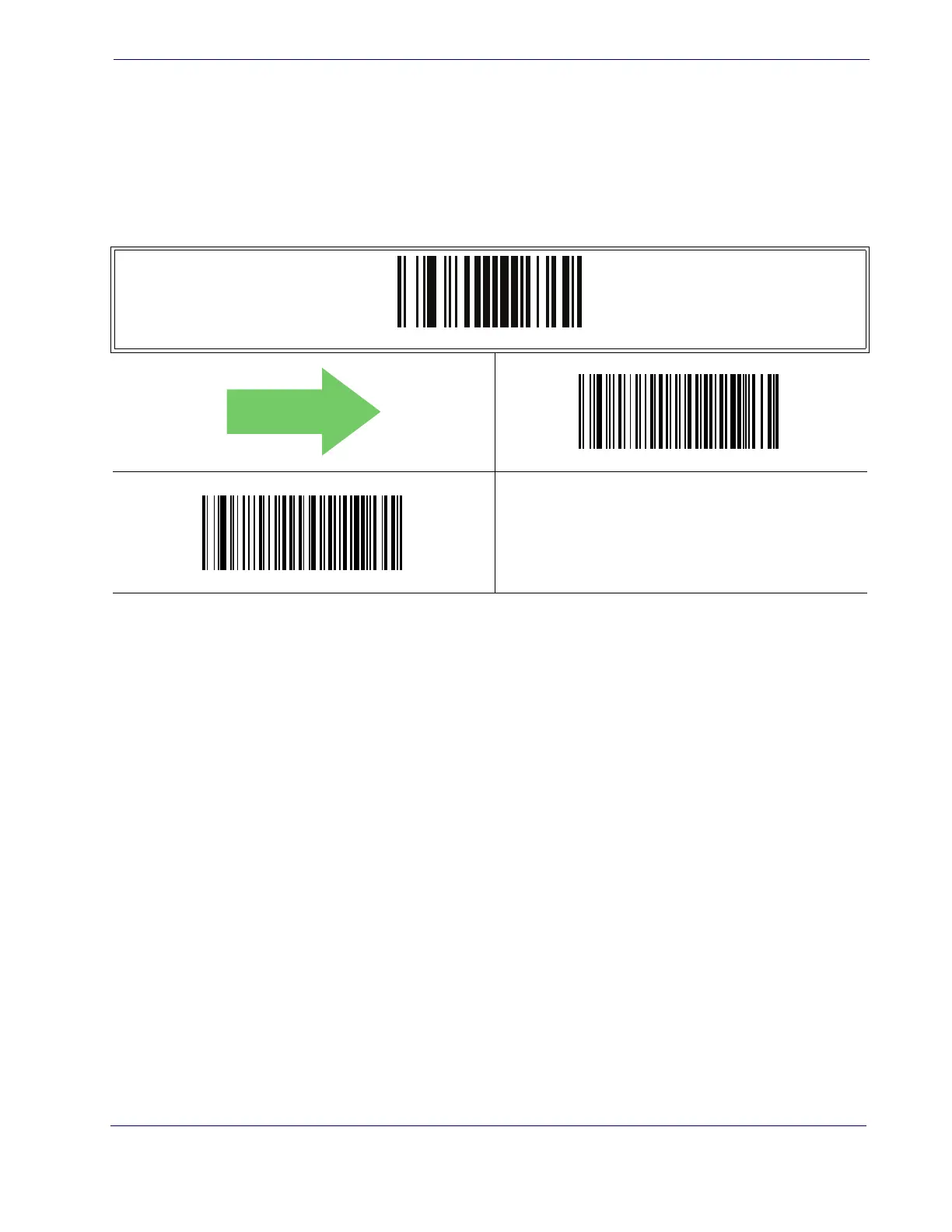

The following options apply to the Code 11 symbology.

Code 11 Enable/Disable

When disabled, the reader will not read Code 11 barcodes.

ENTER/EXIT PROGRAMMING MODE

Code 11 = Disable

Code 11 = Enable

DEFAULT
