Symbologies

152 QuickScan® QD2100

Add-Ons — cont.

P2 Add-Ons Minimum Reads

This feature specifies the minimum number of times a P2 add-on must be read before it

is marked as valid and then combined with a base label.

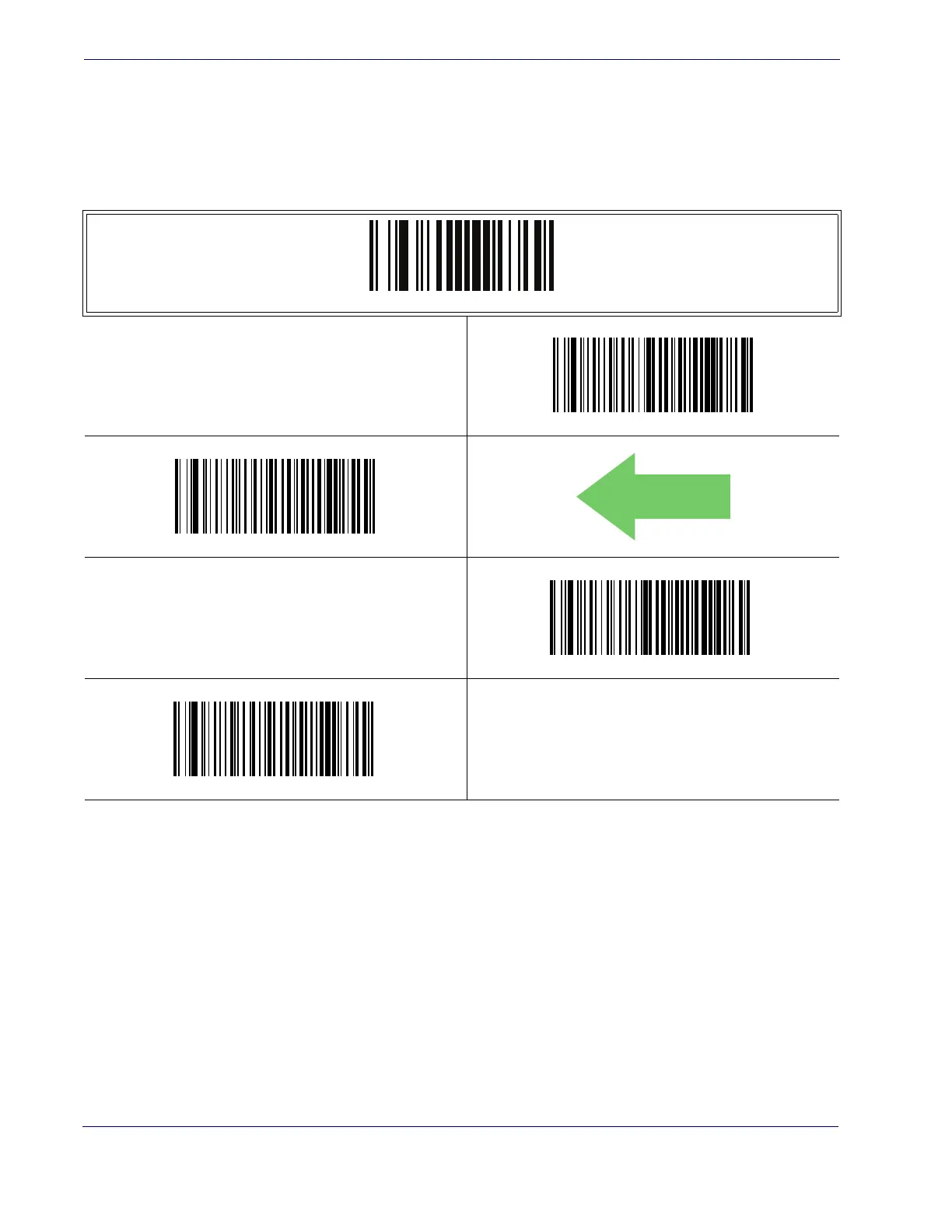

ENTER/EXIT PROGRAMMING MODE

P2 Add-Ons Minimum Reads = 1

P2 Add-Ons Minimum Reads = 2

P2 Add-Ons Minimum Reads = 3

P2 Add-Ons Minimum Reads = 4

DEFAULT
