IATA

Product Reference Guide

281

IATA

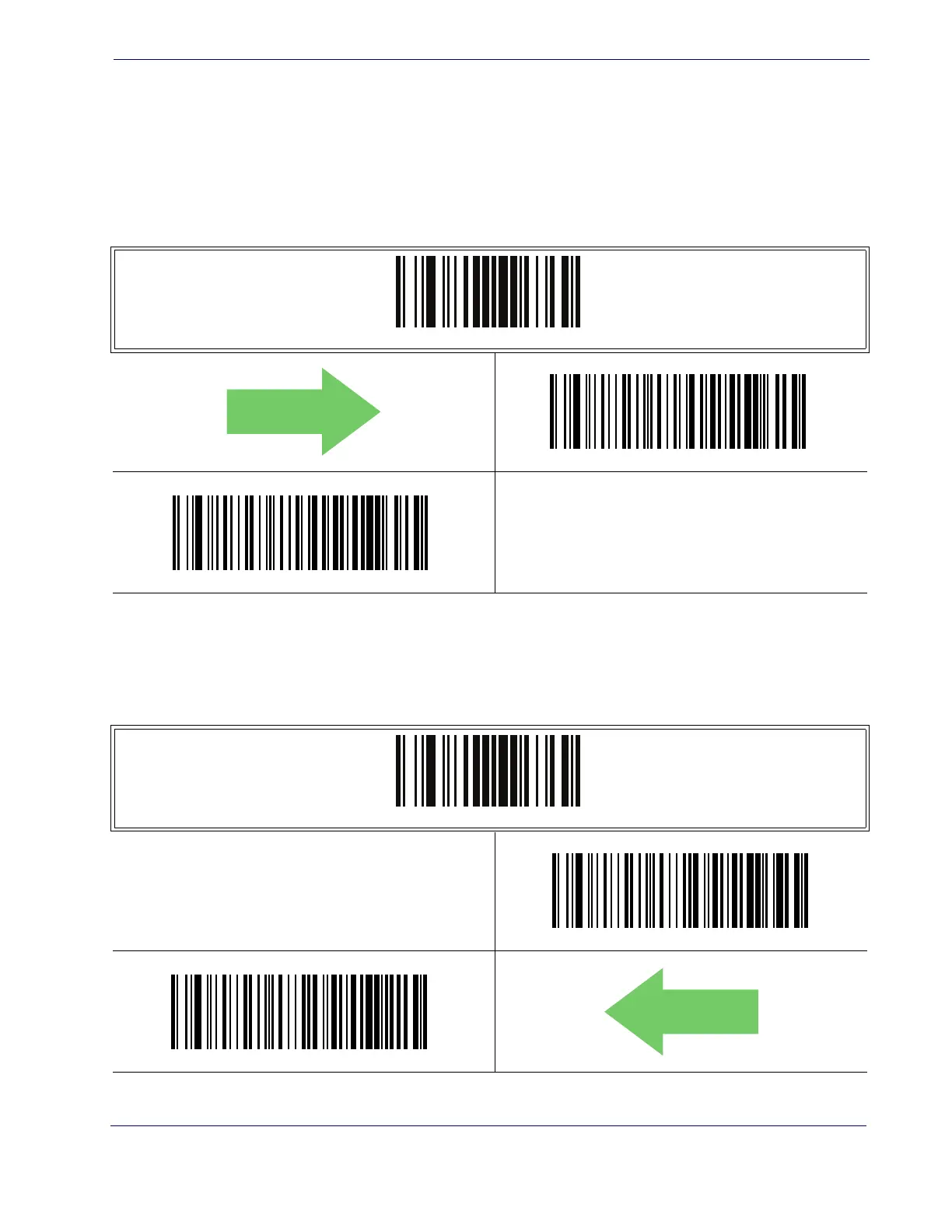

The following options apply to the IATA symbology.

IATA Enable/Disable

Enables/Disables the ability of the reader to decode IATA labels.

IATA Check Character Transmission

Enables/Disables calculation and verification of an optional Industrial 2 of 5 check char-

acter.

ENTER/EXIT PROGRAMMING MODE

IATA = Disable

IATA = Enable

DEFAULT

ENTER/EXIT PROGRAMMING MODE

IATA Check Character Transmission = Disable

IATA Check Character Transmission = Enable

DEFAULT
