Symbologies

164 QuickScan® QD2100

GS1 DataBar

Limited

The following options apply to the GS1 DataBar Limited (formerly RSS Limited) sym-

bology.

GS1 DataBar Limited Enable/Disable

When disabled, the reader will not read GS1 DataBar Limited barcodes.

GS1 DataBar Limited GS1-128 Emulation

When enabled, GS1 DataBar Limited barcodes will be translated to the GS1-128 label

data format.

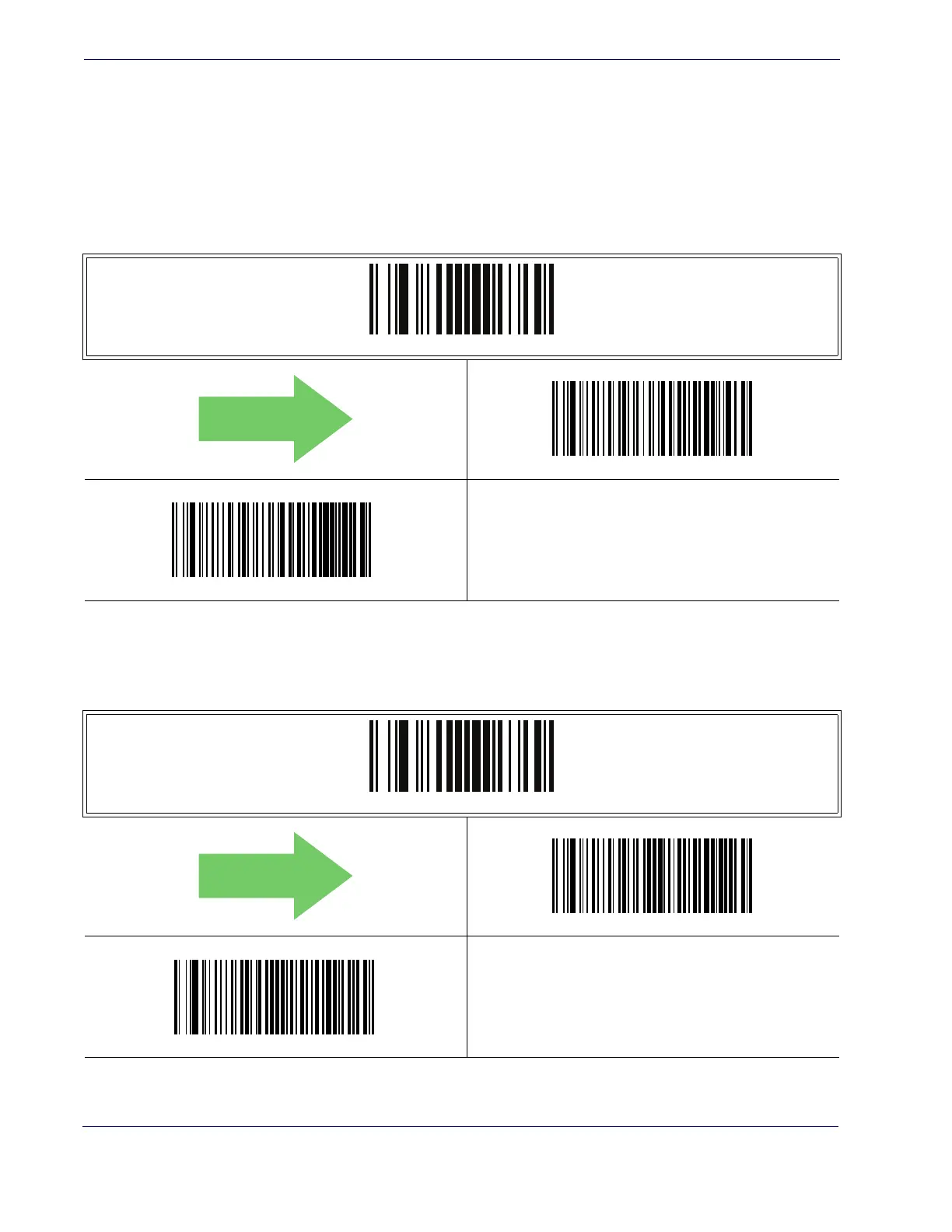

ENTER/EXIT PROGRAMMING MODE

GS1 DataBar Limited = Disable

GS1 DataBar Limited = Enable

DEFAULT

ENTER/EXIT PROGRAMMING MODE

GS1 DataBar Limited GS1-128 Emulation = Disable

GS1 DataBar Limited GS1-128 Emulation = Enable

DEFAULT
