Symbologies

200 QuickScan® QD2100

GS1-128

The following options apply to the GS1-128 symbology. (Also known as USS-128,

GTIN-128, UCC-128.)

GS1-128 Enable

This option enables/disables the ability of the reader to translate GS1-128 labels to the

GS1-128 data format. Options are:

• Transmit GS1-128 labels in Code 128 data format.

• Transmit GS1-128 labels in GS1-128 data format.

• Do not transmit GS1-128 labels.

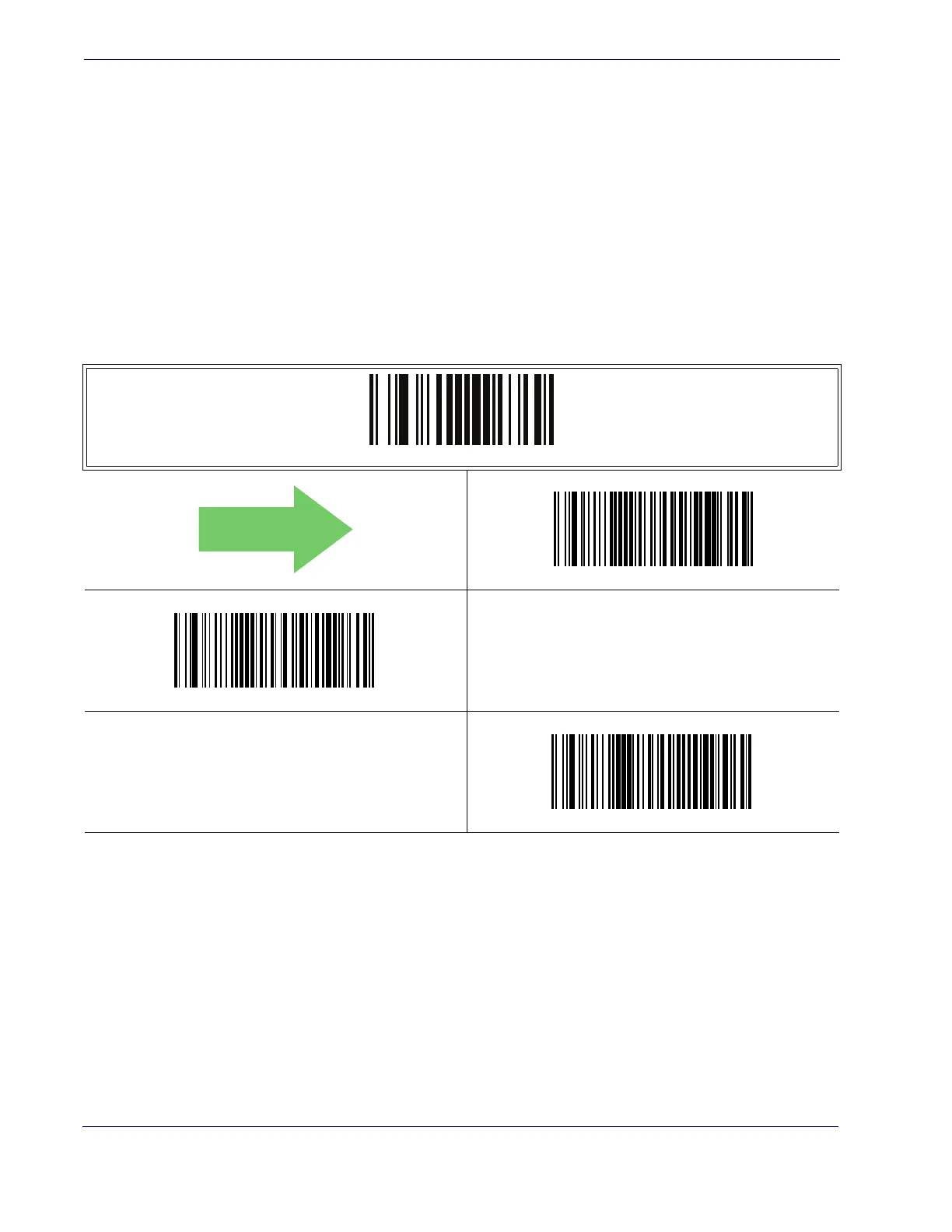

ENTER/EXIT PROGRAMMING MODE

GS1-128 = Transmit in Code 128 data format

GS1-128 = Transmit in GS1-128 data format

GS1-128 = Do not transmit GS1-128 labels

DEFAULT
