ISBT 128

Product Reference Guide

285

ISBT 128 — cont.

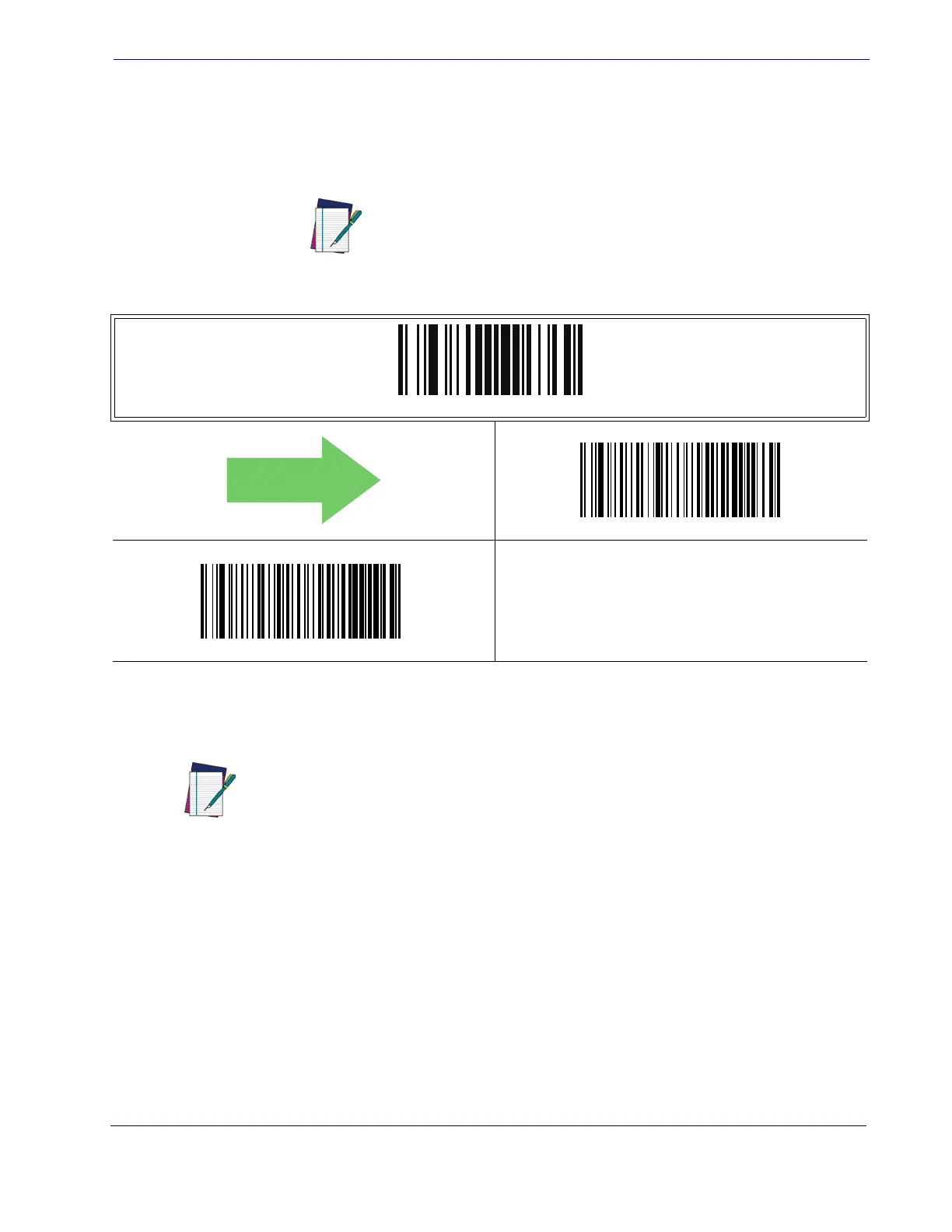

ISBT 128 Force Concatenation

When enabled, this feature forces all ISBT 128 labels to be concatenated.

ISBT 128 Advanced Concatenation Options

NOTE

This option is only valid when

ISBT 128 Concatenation is enabled.

(

see page 282).

ENTER/EXIT PROGRAMMING MODE

ISBT 128 Force Concatenation = Disable

ISBT 128 Force Concatenation = Enable

DEFAULT

NOTE

Use the Datalogic Aladdin configuration application or Contact Cus-

tomer Support to set up pairs of label types for concatenation.
