Symbologies

182 QuickScan® QD2100

Code 39 Stitching

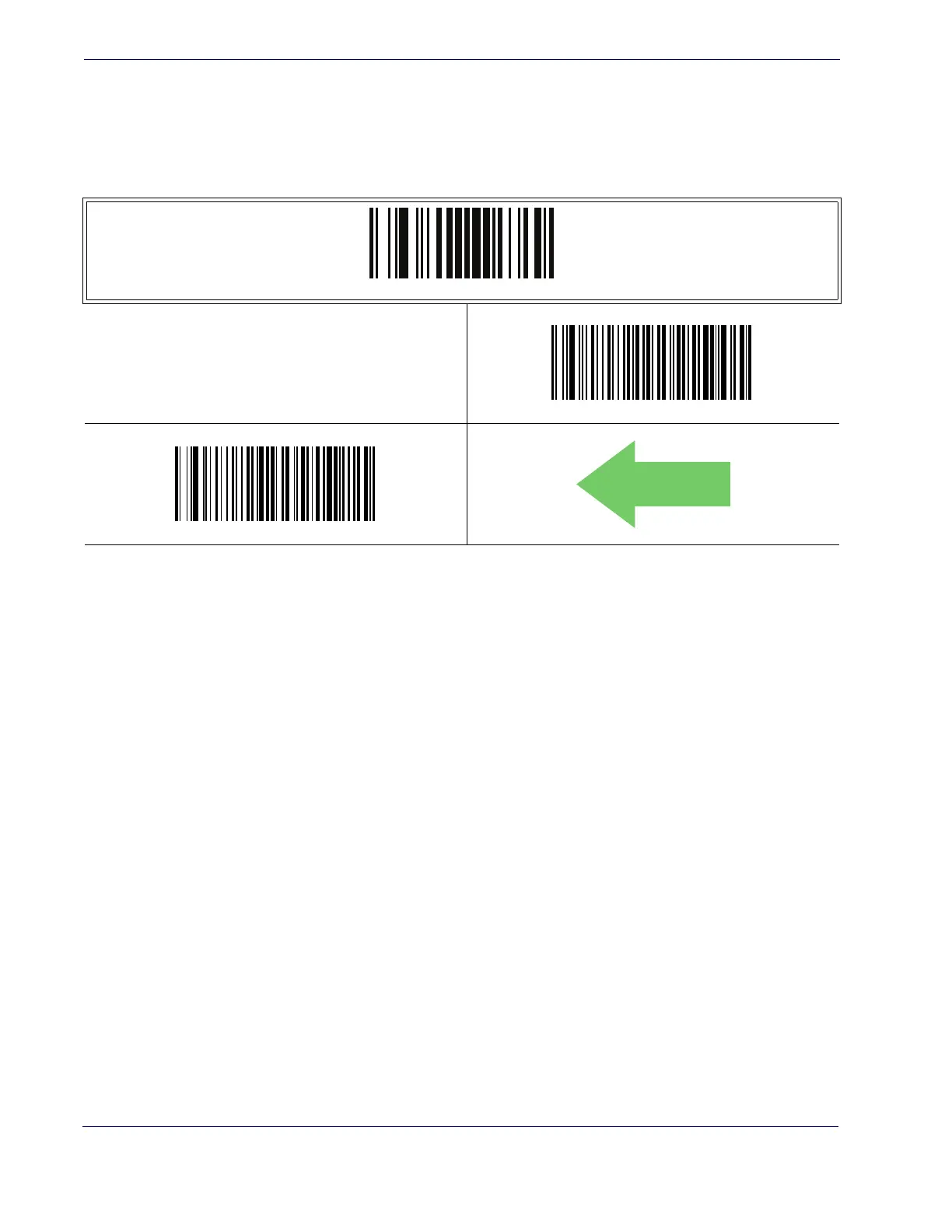

This option enables/disables stitching for Code 39 labels. When parts of a Code 39 bar-

code are presented to the reader with this feature enabled, the barcode parts will be as-

sembled by the reader’s software, and the data will be decoded if all barcode proofing

requirements are met.

ENTER/EXIT PROGRAMMING MODE

Code 39 Stitching = Disable

Code 39 Stitching = Enable

DEFAULT

Default Chapter1
