202 QuickScan® QD2100

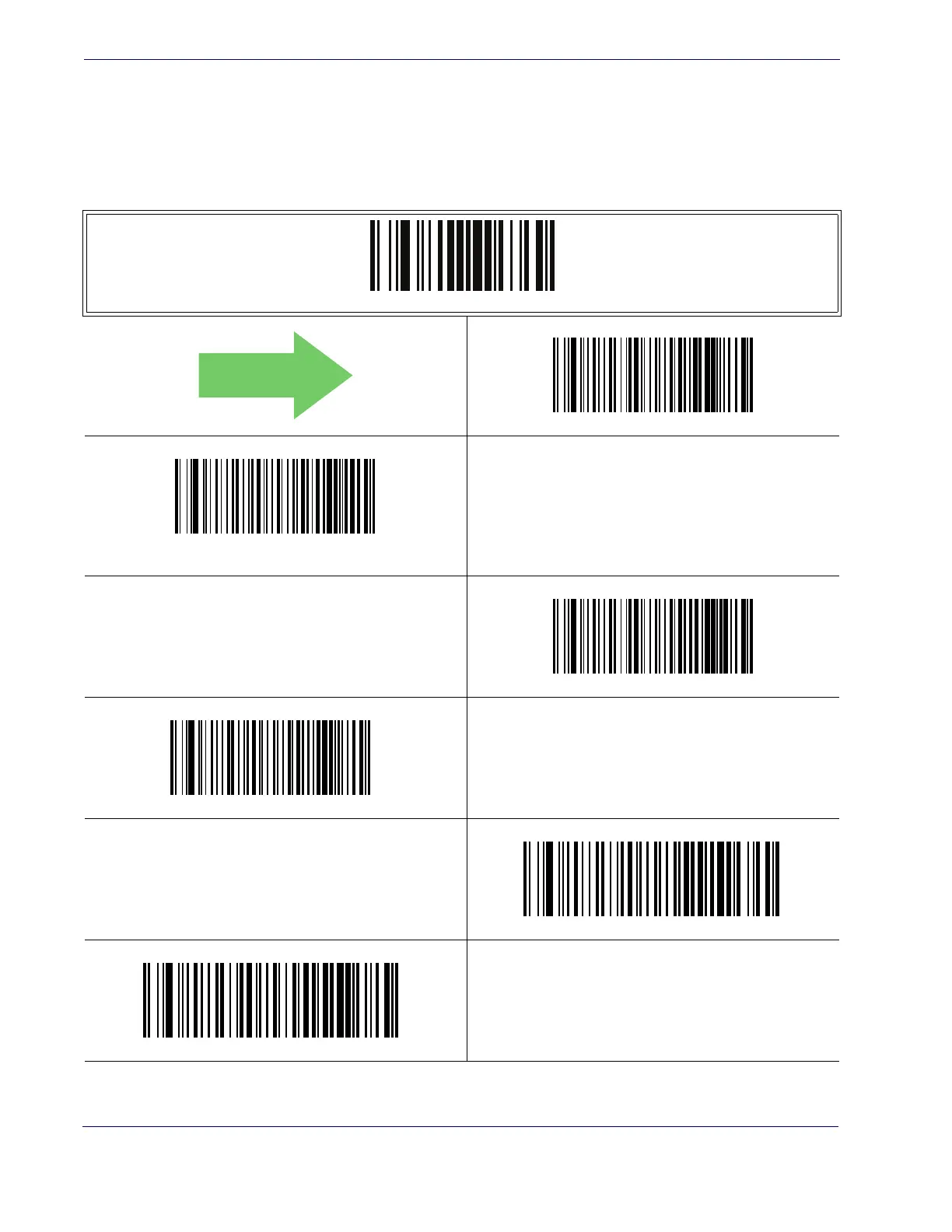

Interleaved 2 of 5 (I 2 of 5) — cont.

I 2 of 5 Check Character Calculation

This option enables/disables calculation and verification of an optional I 2 of 5 check

character. When disabled, any check character in label is treated as a data character.

ENTER/EXIT PROGRAMMING MODE

I 2 of 5 Check Character Calculation = Disable

I 2 of 5 Check Character Calculation = Check Standard

(Modulo 10)

I 2 of 5 Check Character Calculation = Check German Parcel

I 2 of 5 Check Character Calculation = Check DHL

I 2 of 5 Check Character Calculation = Check Daimler Chrysler

I 2 of 5 Check Character Calculation = Check Bosch

DEFAULT
