Symbologies

250 QuickScan® QD2100

Code 11 — cont.

Code 11 Minimum Reads

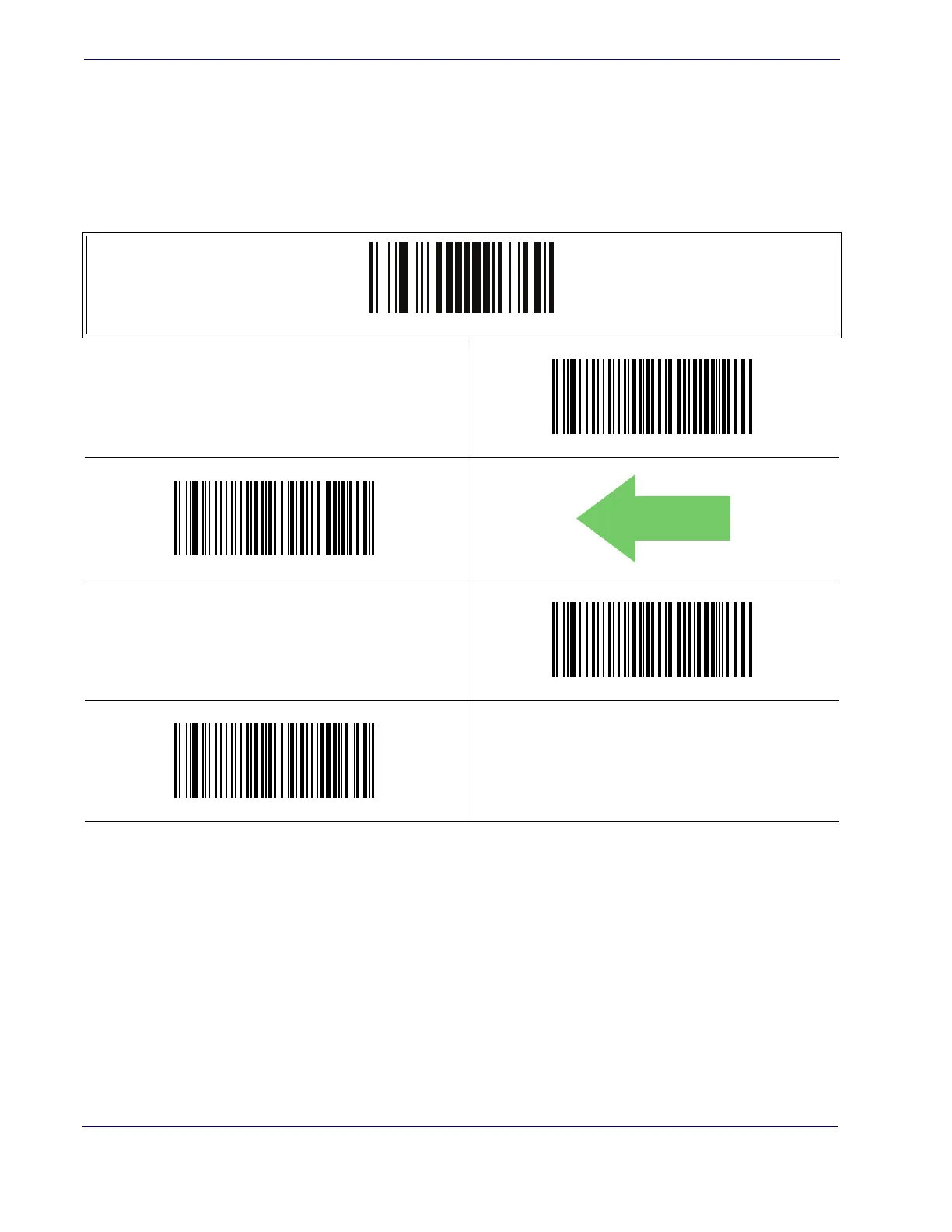

This feature specifies the minimum number of consecutive times a Code 11 label must

be decoded before it is accepted as good read..

ENTER/EXIT PROGRAMMING MODE

Code 11 Minimum Reads = 1

Code 11 Minimum Reads = 2

Code 11 Minimum Reads = 3

Code 11 Minimum Reads = 4

DEFAULT
