General Features

24 QuickScan® QD2100

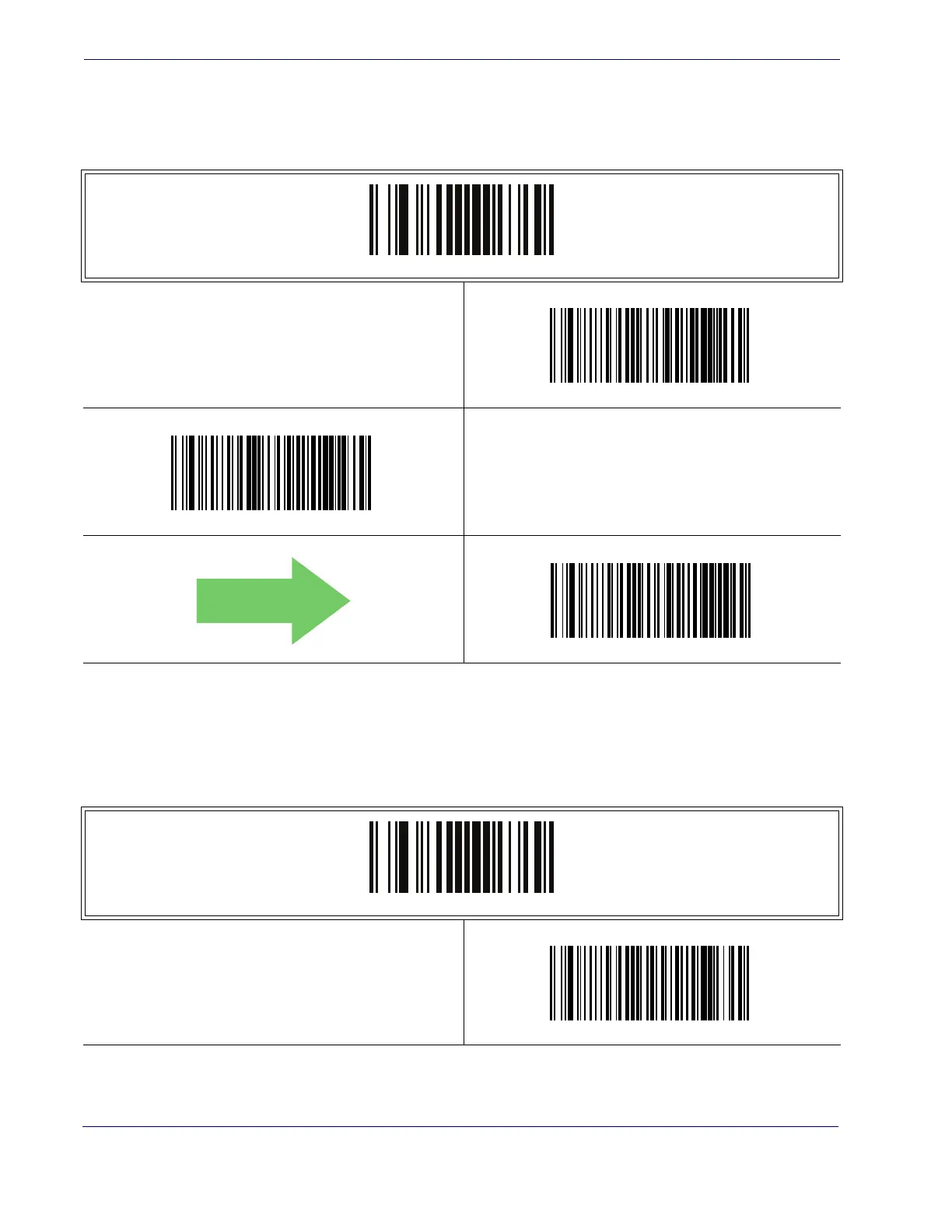

Good Read Beep Frequency

Adjusts the good read beep to sound at a selectable low, medium or high frequency, se-

lectable from the list below. (Controls the beeper’s pitch/tone.)

Good Read Beep Length

Specifies the duration of a good read beep.

ENTER/EXIT PROGRAMMING MODE

Good Read Beep Frequency = Low

Good Read Beep Frequency = Medium

Good Read Beep Frequency = High

DEFAULT

ENTER/EXIT PROGRAMMING MODE

Good Read Beep Length = 60 msec

Default Chapter1
- Product Reference Guide1
- Table of Contents3
Chapter 1 Introduction11
- About this Guide11
- Manual Overview11
- ASCII Chart11
- Product Reference Guide11
- Manual Conventions12
- References12
- Technical Support13
Product Reference Guide13
Chapter 2. Getting Started15
- About the Imager15
- Unpacking15
- Product Reference Guide15
- Setting up the Imager16
- Resetting the Product Configuration to Defaults19
Chapter 3. Interfaces21
- Interface Selection21
- Configuring the Interface21
- Global Interface Features25
  - Host Commands - Obey/Ignore25
  - USB Suspend Mode26
Chapter 4. General Features27
- Double Read Timeout27
- Label Gone Timeout29
- LED and Beeper Indicators31
- Scanning Features39
- Flash on Time45
- Flash off Time47
- Stand Mode Sensitivity49
- Green Spot Duration50
Chapter 5. RS-232 ONLY Interface51
- Introduction51
- RS-232 Standard Factory Settings51
- Baud Rate51
- Data Bits53
- Stop Bits54
- Parity55
- Handshaking Control56
Chapter 6. RS-232/USB-Com Interfaces57
- Introduction57
- Standard Factory Settings57
- Intercharacter Delay58
- Beep on ASCII BEL60
- Beep on Not on File60
- ACK NAK Options61
- Indicate Transmission Failure71
- Disable Character72
- Enable Character74
Chapter 7. Keyboard Interface77
- Introduction77
- Standard Factory Settings77
- Scancode Tables77
- Country Mode78
- Caps Lock State81
- Numlock81
- Send Control Characters82
- Wedge Quiet Interval83
- Intercharacter Delay85
- Intercode Delay87
- USB Keyboard Speed89
Chapter 8. USB-OEM Interface91
- Introduction91
- Standard Factory Settings91
- USB-OEM Device Usage92
- USB-OEM Interface Options93
Chapter 9. IBM 46XX Interface95
- Introduction95
- IBM Standard Factory Settings95
- 46Xx Number of Host Resets96
- Transmit Labels in Code 39 Format99
- IBM 46XX Interface Options100
Chapter 10. Wand Emulation Interface101
- Introduction101
- Wand Emulation Standard Factory Settings101
- Wand Idle State101
- Wand Polarity102
- Wand Signal Speed103
- Wand Label Symbology Conversion104
- Wand Transmit Noise105
Chapter 11. Data Editing107
- Data Editing Overview107
- Please Keep in Mind108
- Global Prefix/Suffix108
  - Example: Setting a Prefix108
- Global AIM ID110
- Gs1-128 Aim ID112
- Label ID113
- Case Conversion127
- Character Conversion128
Chapter 12. Symbologies131
- Introduction131
  - Symbologies131
- Standard Factory Settings for Symbologies132
- Disable All Symbologies132
- Coupon Control133
- Upc-A134
  - UPC-A Enable/Disable134
  - UPC-A Check Character Transmission134
  - Expand UPC-A to EAN-13135
  - UPC-A Number System Character Transmission135
  - In-Store Minimum Reads136
- Upc-E137
  - UPC-E Enable/Disable137
  - UPC-E Check Character Transmission137
  - Expand UPC-E to EAN-13138
  - Expand UPC-E to UPC-A138
  - UPC-E Number System Character Transmission139
  - UPC-E Minimum Reads140
- GTIN Formatting141
- Ean 13142
  - EAN 13 Enable/Disable142
  - EAN 13 Check Character Transmission142
  - EAN-13 Flag 1 Character143
  - EAN-13 ISBN Conversion144
  - ISSN Enable/Disable144
  - EAN 13 Minimum Reads145
- Ean 8146
  - EAN 8 Enable/Disable146
  - EAN 8 Check Character Transmission146
  - Expand EAN 8 to EAN 13147
  - EAN 8 Minimum Reads148
- UPC/EAN Global Settings149
  - UPC/EAN Decoding Level149
  - UPC/EAN Correlation151
  - UPC/EAN Price Weight Check152
  - UPC-A Minimum Reads153
- Add-Ons154
  - Optional Add-Ons154
  - Optional Add-On Timer156
  - Optional GS1-128 Add-On Timer159
  - P2 Add-Ons Minimum Reads162
  - P5 Add-Ons Minimum Reads163
  - GS1-128 Add-Ons Minimum Reads164
- GS1 Databar TM Omnidirectional165
  - GS1 Databar Omnidirectional Enable/Disable165
  - GS1 Databar Omnidirectional GS1-128 Emulation165
  - GS1 Databar Omnidirectional Minimum Reads166
- GS1 Databar TM Expanded167
  - GS1 Databar Expanded Enable/Disable167
  - GS1 Databar Expanded GS1-128 Emulation167
  - GS1 Databar Expanded Minimum Reads168
  - GS1 Databar Expanded Length Control169
  - GS1 Databar Expanded Set Length 1170
  - GS1 Databar Expanded Set Length 2172
- GS1 Databar TM Limited174
  - GS1 Databar Limited Enable/Disable174
  - GS1 Databar Limited GS1-128 Emulation174
  - GS1 Databar Limited Minimum Reads175
- Code 39176
  - Code 39 Enable/Disable176
  - Code 39 Check Character Calculation177
  - Code 39 Check Character Transmission178
  - Code 39 Start/Stop Character Transmission178
  - Code 39 Full ASCII179
  - Code 39 Quiet Zones180
  - Code 39 Minimum Reads181
  - Code 39 Decoding Level182
  - Code 39 Length Control184
  - Code 39 Set Length 1185
  - Code 39 Set Length 2187
  - Code 39 Interdigit Ratio189
  - Code 39 Character Correlation191
  - Code 39 Stitching192
- Code 32 (Italian Pharmaceutical)193
  - Code 32 Enable/Disable193
  - Code 32 Feature Setting Exceptions193
  - Code 32 Check Character Transmission194
  - Code 32 Start/Stop Character Transmission194
- Code 39 CIP (French Pharmaceutical)195
  - Code 39 CIP Enable/Disable195
- Code 128195
  - Code 128 Enable/Disable195
  - Expand Code 128 to Code 39196
  - Code 128 Check Character Transmission196
  - Code 128 Function Character Transmission197
  - Code 128 Sub-Code Change Transmission198
  - Code 128 Quiet Zones199
  - Code 128 Minimum Reads200
  - Code 128 Decoding Level201
  - Code 128 Length Control203
  - Code 128 Set Length 1204
  - Code 128 Set Length 2206
  - Code 128 Character Correlation208
  - Code 128 Stitching209
- Gs1-128210
  - GS1-128 Enable210
- Interleaved 2 of 5 (I 2 of 5)211
  - I 2 of 5 Enable/Disable211
  - I 2 of 5 Check Character Calculation212
  - I 2 of 5 Check Character Transmission213
  - I 2 of 5 Minimum Reads214
  - Of 5 Decoding Level215
  - I 2 of 5 Length Control217
  - Interleaved 2 of 5 CIP HR224
    - Interleaved 2 of 5 CIP HR Enable/Disable224
  - Datalogic 2 of 5224
  - Codabar236
  - ABC Codabar254
  - Code 11257
  - Standard 2 of 5272
  - Standard 2 of 5 Stitching281
- Industrial 2 of 5282
  - Industrial 2 of 5 Enable/Disable282
  - Industrial 2 of 5 Check Character Calculation282
  - Industrial 2 of 5 Check Character Transmission283
  - Industrial 2 of 5 Length Control284
  - Industrial 2 of 5 Set Length 1285
  - Industrial 2 of 5 Set Length 2287
  - Industrial 2 of 5 Minimum Reads289
  - Industrial 2 of 5 Stitching290
  - Industrial 2 of 5 Character Correlation290
- Iata291
  - IATA Enable/Disable291
  - IATA Check Character Transmission291
- Isbt 128292
  - ISBT 128 Concatenation292
  - ISBT 128 Concatenation Mode293
  - ISBT 128 Dynamic Concatenation Timeout294
  - ISBT 128 Force Concatenation295
  - ISBT 128 Advanced Concatenation Options295
- Msi296
  - MSI Enable/Disable296
  - MSI Check Character Calculation297
  - MSI Check Character Transmission298
  - MSI Length Control298
  - MSI Set Length 1299
  - MSI Set Length 2301
  - MSI Minimum Reads303
  - MSI Decoding Level304
- Plessey306
  - Plessey Enable/Disable306
  - Plessey Check Character Calculation307
  - Plessey Check Character Transmission308
  - Plessey Length Control308
  - Plessey Set Length 1309
  - Plessey Set Length 2311
  - Plessey Minimum Reads313
  - Plessey Decoding Level314
  - Plessey Stitching315
  - Plessey Character Correlation316
- Code 93316
  - Code 93 Enable/Disable316
  - Code 93 Check Character Calculation317
  - Code 93 Check Character Transmission318
  - Code 93 Length Control318
  - Code 93 Set Length 1319
  - Code 93 Set Length 2321
  - Code 93 Minimum Reads323
  - Code 93 Decoding Level324
  - Code 93 Quiet Zones326
  - Code 93 Stitching327
  - Code 93 Character Correlation327
- Codablock F328
  - Codablock F Enable/Disable328
  - Codablock F EAN Enable/Disable329
  - Codablock F AIM Check329
  - Codablock F Length Control330
  - Codablock F Set Length 1331
  - Codablock F Set Length 2333
- Code 4335
  - Code 4 Enable/Disable335
  - Code 4 Check Character Transmission336
  - Code 4 Hex to Decimal Conversion336
  - Code 5337
  - Code 4 and Code 5 Common Configuration Items339
    - Code 4 and 5 Decoding Level339
    - Code 4 and Code 5 Minimum Reads341
  - Follett 2 of 5342
    - Follett 2 of 5 Enable/Disable342
Appendix A. Technical Specifications343
- Standard Cable Pinouts345
Appendix B. Standard Defaults347
- Default Exceptions358
Appendix C. LED and Beeper Indications361
- LED and Beeper Indications362
- Error Codes363
Appendix D Sample Barcodes365
- Upc-A365
- Interleaved 2 of 5365
- Codabar366
- Code 11366
- GS1 Databar (RSS)367
  - GS1 Databar-14367
Appendix E. Keypad369
Appendix F. Scancode Tables373
- Control Character Emulation373
- Interface Type PC at PS/2 or USB-Keyboard374
- Interface Type PC at PS/2 Alt Mode or USB-Keyboard Alt Mode376
- Digital Interface378
- Ibm31Xx 102-Key380
- Ibm Xt382
- Microsoft Windows Codepage 1252384
Index385
