PRODUCT REFERENCE GUIDE XIII

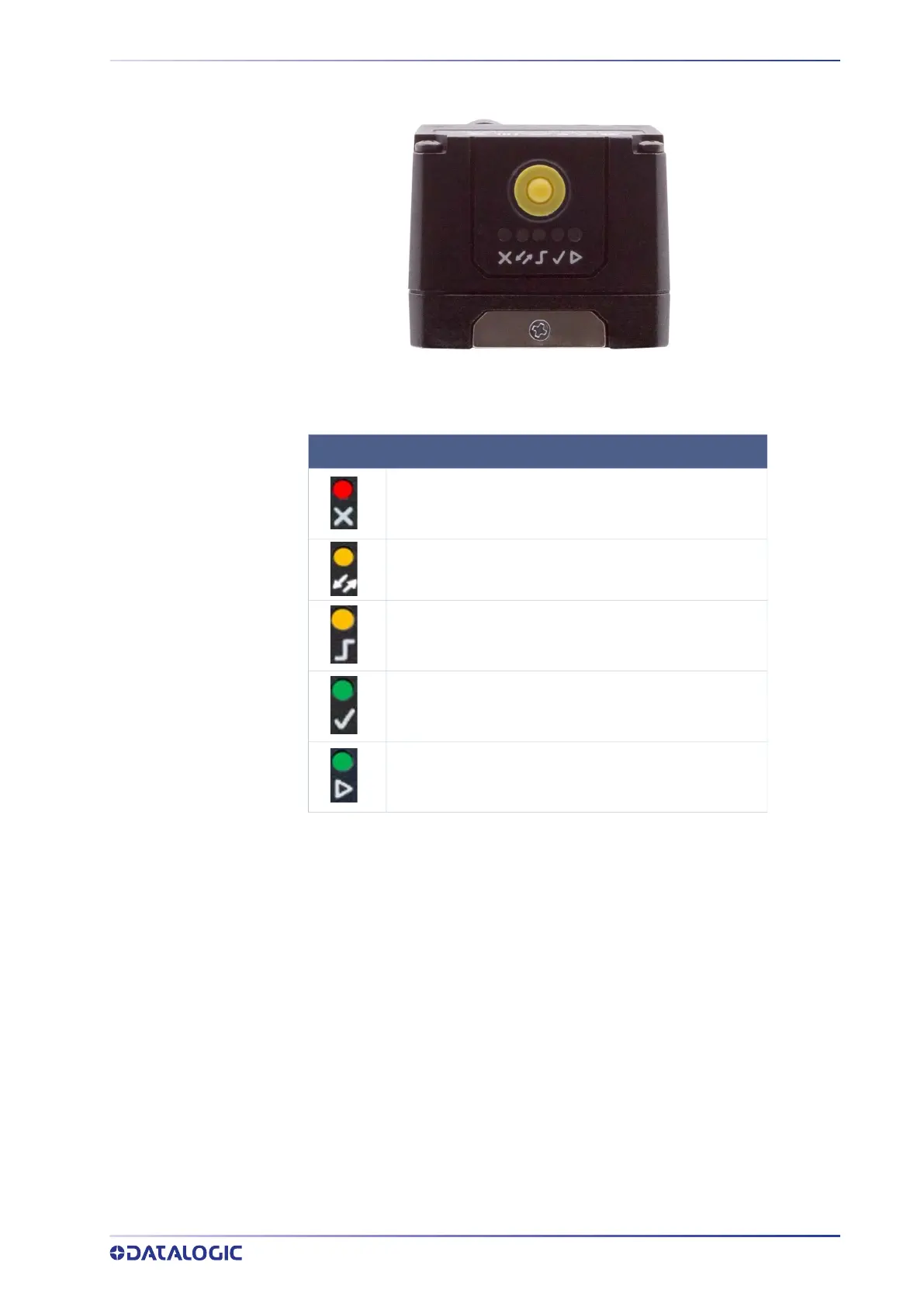

Figure 2 - HMI Interface Details

HMI CONFIGURATION

NO GOOD object

• in Teach phase: blinking, NO GOOD object teaching

• in Run phase: NO GOOD object detected

• for future use

Trigger

• in Teach phase: trigger input status

•in Run phase: trigger received

GOOD object

• in Teach phase: blinking, GOOD object teaching

• in Run phase: GOOD object detected

Run

• steady: device in Run phase

• blinking: Teaching required
