RAPID CONFIGURATION
11 SMART-VS PLUS
TEACHING

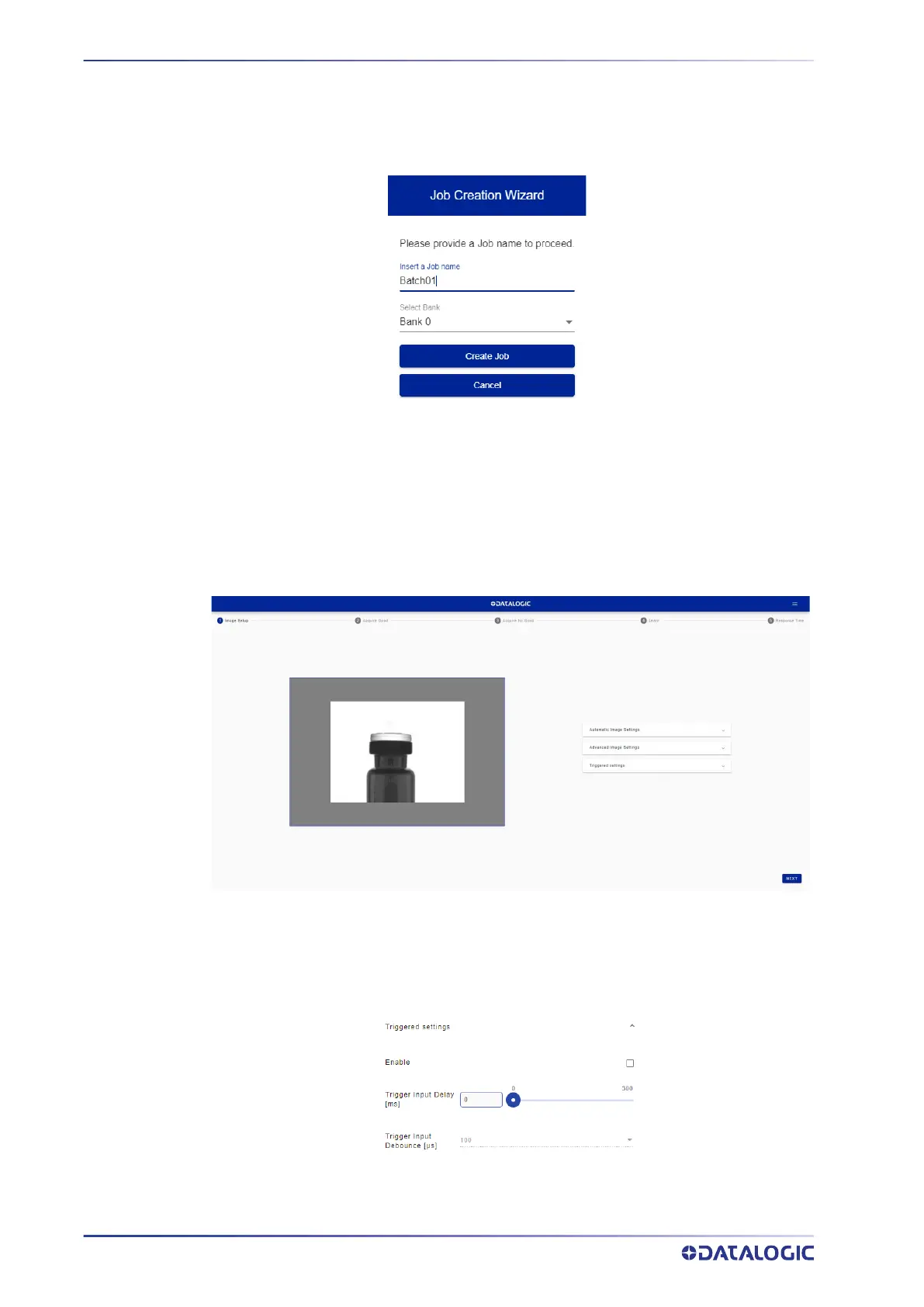

To perform Teaching on your Smart-VS Plus device, enter a job name, select the bank
where to store it, click on the Create Job button, and follow the procedure described
below.
Step 1: Image Setup
On the Image Setup page, select Start Automatic Setup to automatically set the Focus
Distance, the Exposure Time, and the Sensor Gain parameters (suggested). Alternatively,
select Advanced Image Settings to manually set the parameters.
It is also possible to move the Field of View based on the application needs, which can
be useful when objects of different batch formats must be inspected on the same line.
To do this, simply click on the image and drag it throughout the gray area.
After completing image setup, click NEXT.
Trigger Settings:
The “Trigger Settings” button allows to enable training in triggered mode by configuring
the parameters relating to the trigger.
When enabled, the trigger mode modifies the acquisition of the images and therefore
adds to the GOOD and NOT GOOD selections.
