Step 3: Acquire NO GOOD

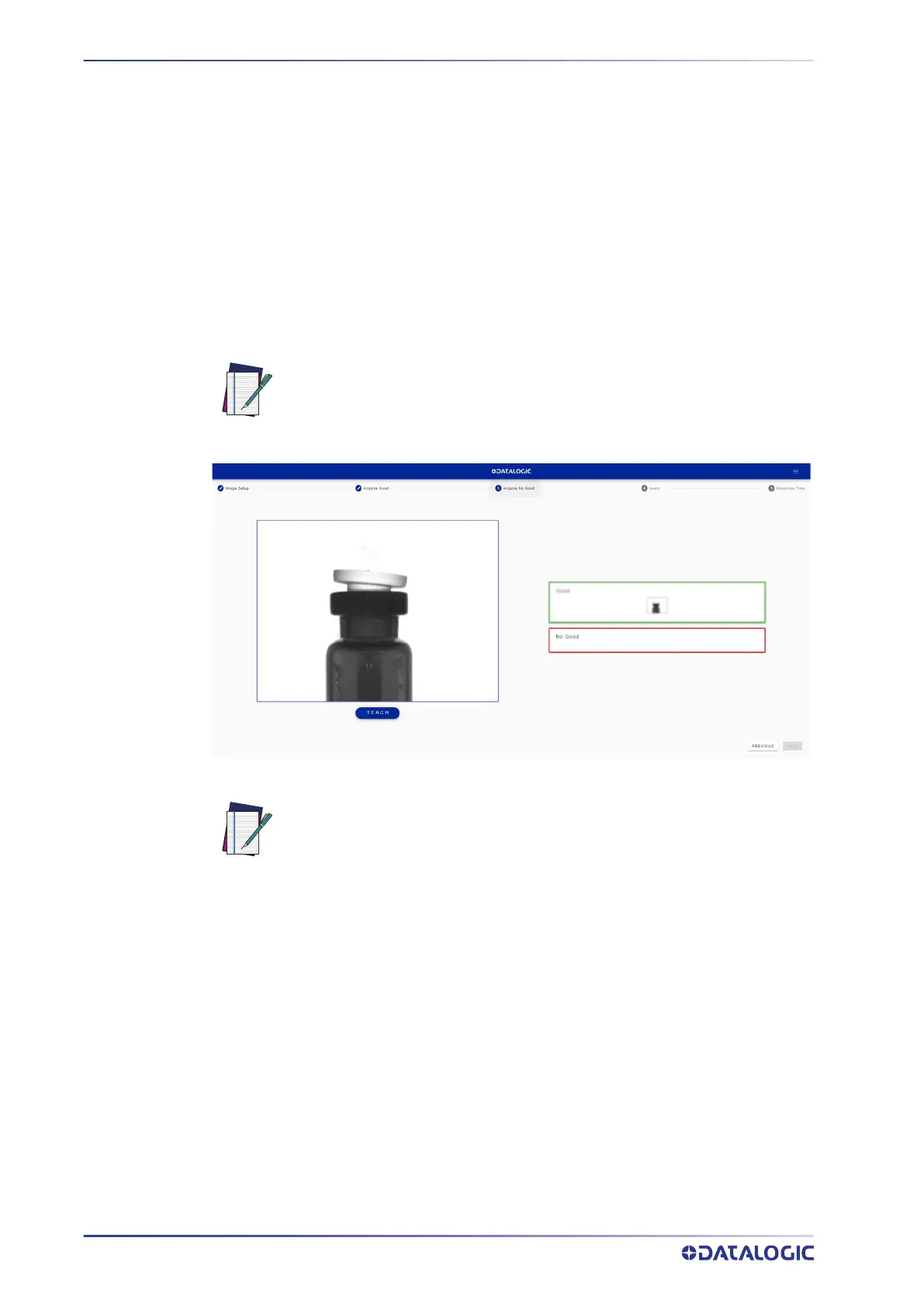

On the Acquire NO GOOD page, if the triggered mode is not enabled, one or more NO
GOOD objects can be acquired by clicking on the Teach button. If the triggered mode is
enabled, there will be two buttons: CONTINOUS and START. When START button is
clicked, every image acquired will be added to the NO GOOD objects. Clicking instead
the CONTINOUS button, the Smart-VS will switch working like when the triggered mode
was not enabled.
On the Acquire NO GOOD page, one or more NO GOOD objects can be acquired by
clicking on the Teach button.
It is recommended to acquire as many NO GOOD images as the known number of
instances to be treated as NO GOOD.
After adding at least one NO GOOD object, you can click on the Teach button.
NOTE: The GOOD and NO GOOD boxes can store a total of 20 images, of
which at least one per box. This means that each box can have a maximum
of 19 images.
NOTE: Click on an acquired object in the NO GOOD box and select DELETE to
delete it.
