MECHANICAL DIMENSIONS
Smart-VS Plus can be installed to operate in different positions. The two screw holes
(M3 x 4mm depth) on the body of the device are for mechanical fixture.
The diagrams below give the overall dimensions of the device and may be used for its
installation.
Refer to page 29 for various mounting solutions and correct positioning.

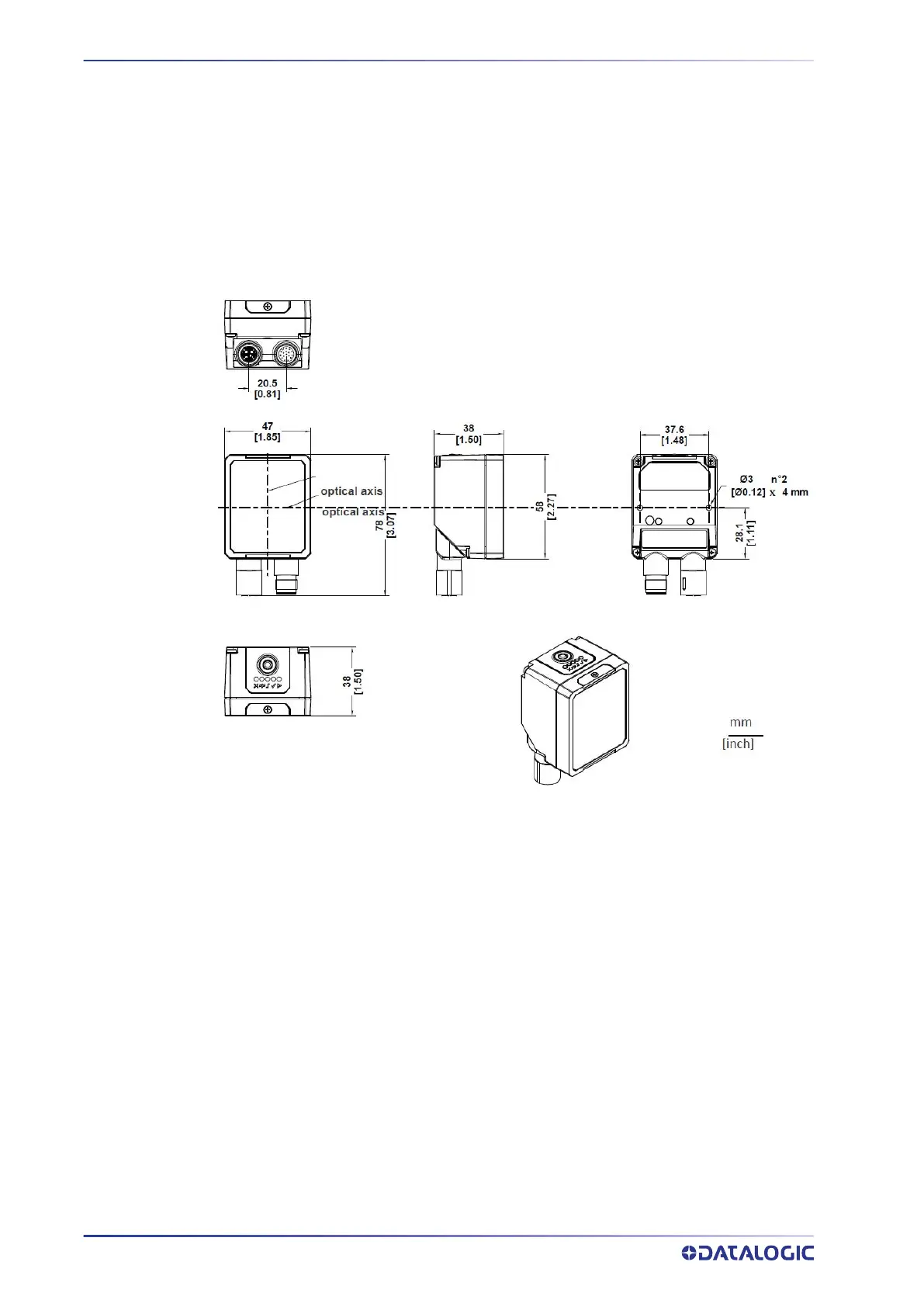

Figure 11 - Overall Dimensions; Connector at 0°
