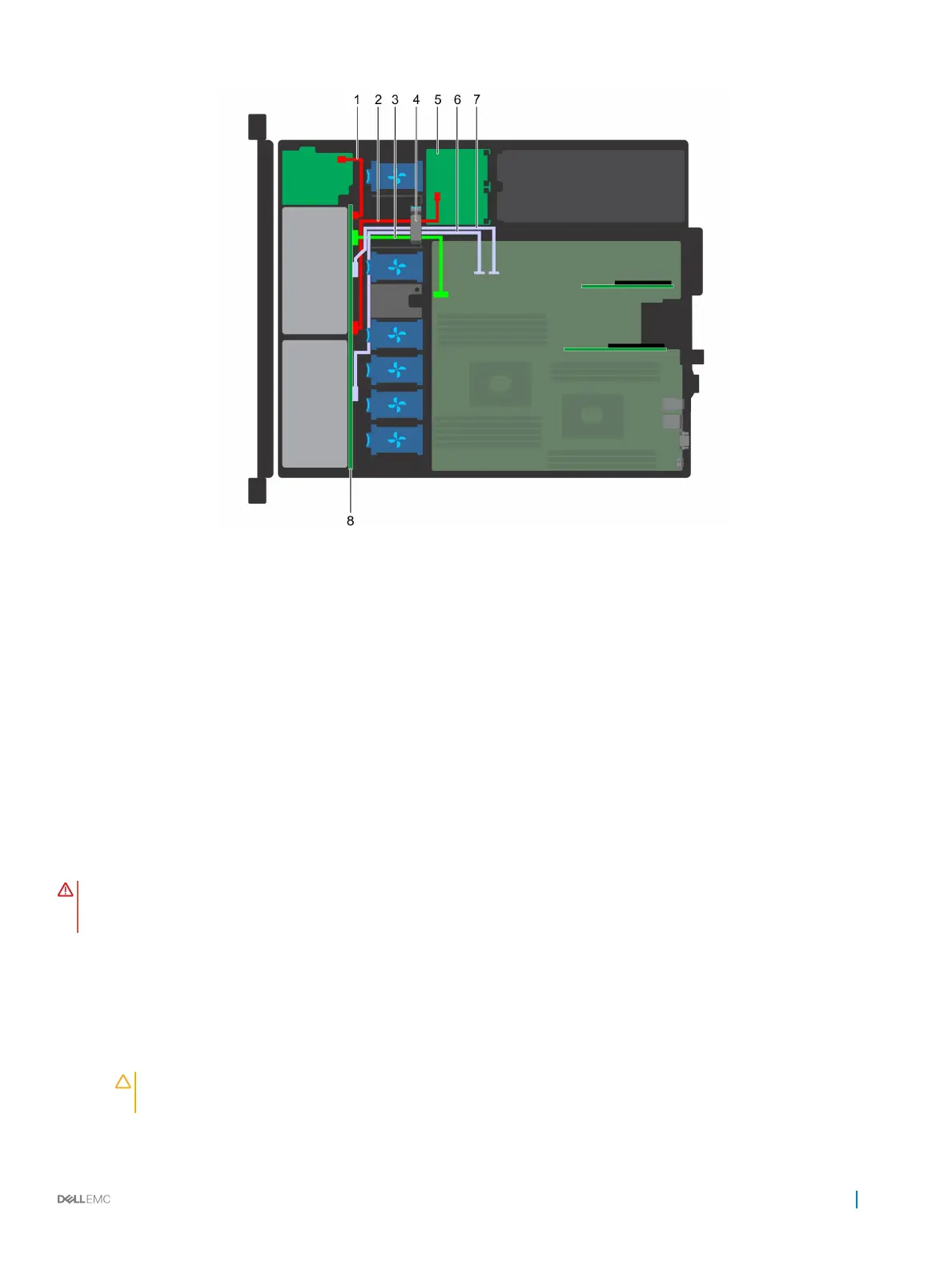

Figure 66. Cable routing - 8 x 2.5 hard drive backplane with onboard SATA
1
FIO power cable 2 backplane signal cable
3 backplane power cable 4 cable routing clip
5 power interposer board 6 SATA cable
7 SATA cable 8 hard drive backplane
System battery
The system battery is used for low-level system functions such as powering the real-time and date settings of the system.
Replacing the system battery
Prerequisites
WARNING
: There is a danger of a new battery exploding if it is incorrectly installed. Replace the battery only with the same or
equivalent type recommended by the manufacturer. For more information, see the safety information that shipped with your
system.
1 Follow the safety guidelines listed in Safety instructions.
2 Follow the procedure listed in Before working inside your system.
3 Remove the expansion card riser.
Steps
1 Locate the battery socket. For more information, see the System board jumpers and connectors section.
CAUTION
: To avoid damage to the battery connector, you must rmly support the connector while installing or
removing a battery.
2 Use a plastic scribe to pry out the system battery.
Installing and removing system components
105
