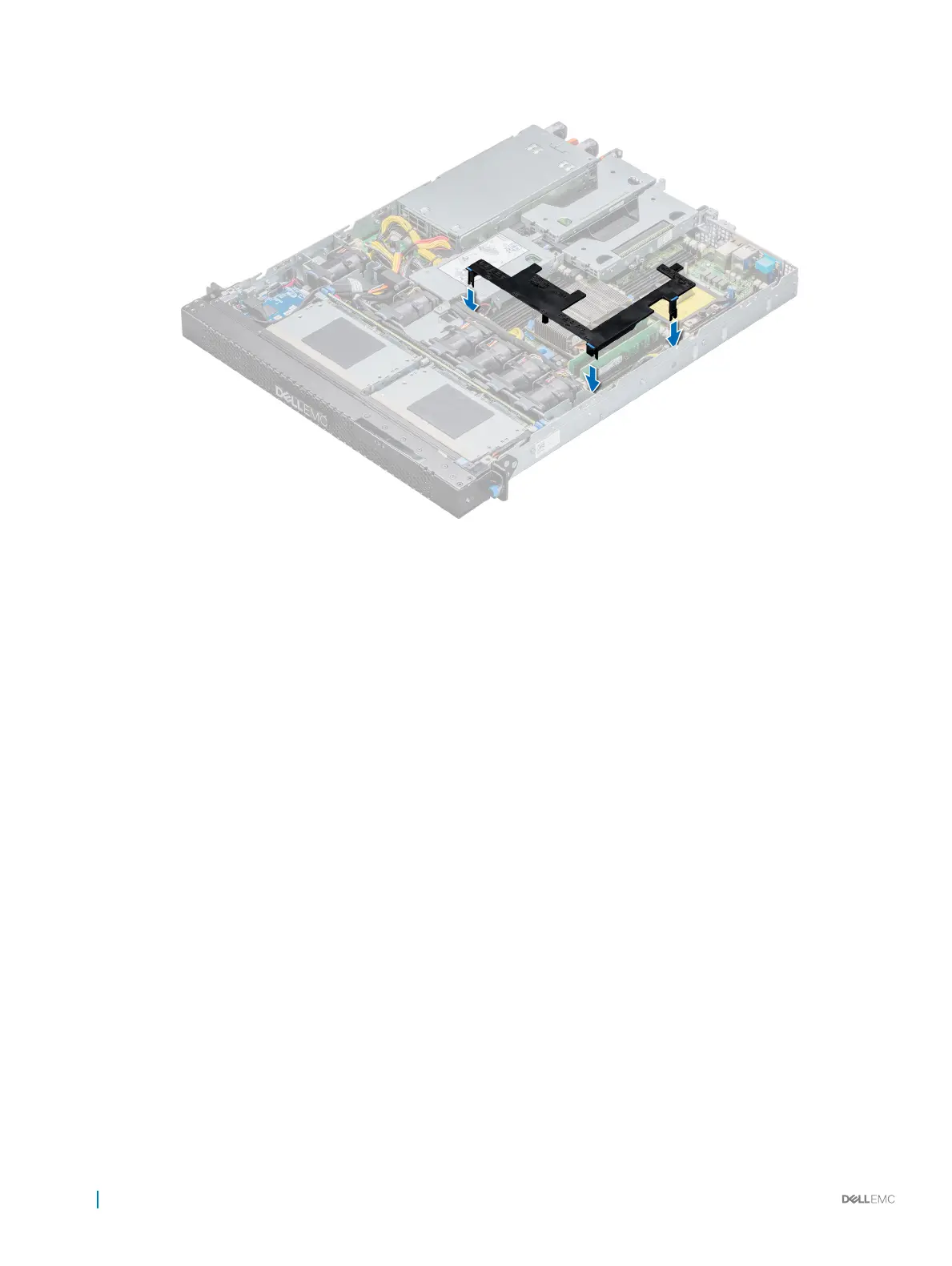

Figure 26. Installing the air shroud
2 Holding the touch points, lower the air shroud into the system until it is rmly seated.
When rmly seated, the memory socket numbers marked on the air shroud align with the respective memory sockets.
Next step
Follow the procedure listed in After working inside your system.
Internal PERC riser
The internal PERC riser has Harpoon-based Premium Performance tier oering that drives IOPs and enhanced SSD performance.
Removing the internal MiniPERC riser
Prerequisites
1 Follow the safety guidelines listed in Safety instructions.
2 Follow the procedure listed in Before working inside your system.
3 Open the cable guiding latch for easy access.
Steps
1 Open the plunger.
2 Hold the blue touch points and lift the internal MiniPERC riser.
68
Installing and removing system components
