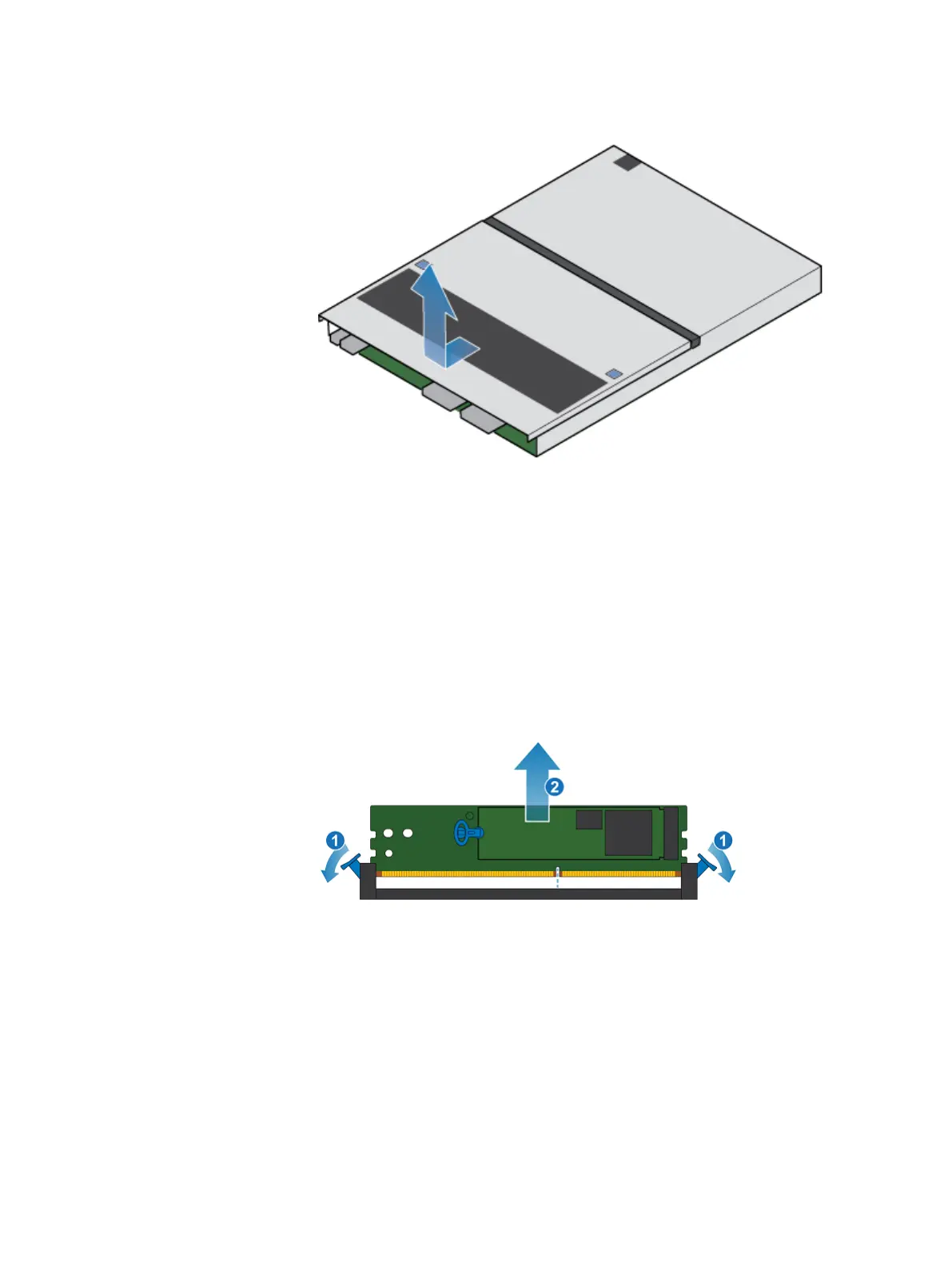

Figure 100 Removing the top cover
Remove the faulted M.2 SSD
Procedure
1. Locate the M.2 SSD adaptor in the SP assembly.
The M.2 SSD adaptor is identified by the blue retaining tabs.
2. Depress the blue retaining tabs downward to free the M.2 SSD adaptor from its
slot.
3. Touching only the outside edges of the M.2 SSD adaptor, remove the M.2 SSD
adaptor.
Figure 101
Removing the M.2 SSD adaptor
4. Identify the faulted M.2 SSD. One is labeled DRIVE 0 and the other is labeled
DRIVE 1.
5. On the faulted M.2 SSD, gently pull the handle on the release tab to separate it
from the tab holding it in place.
6. Pull straight up on the pull tab to free it from the M.2 SSD adaptor.
7. Remove the M.2 SSD from the M.2 SSD adaptor.
Service Procedures
Remove the faulted M.2 SSD 101
