Replace a faulted disk in the DPE
Take the following actions to remove a faulted disk and install the replacement disk
into the DPE.
Identifying and locating the faulted part in Unisphere
Before you replace a faulted part, locate its placement within the storage system.
Procedure
1. In Unisphere, select System View.
2. Select the Enclosures page.
3. Locate the faulted part marked orange, and displayed in the Enclosures view.
Remove a faulted 2.5" disk
Procedure
1. Push down on the orange button to release the latch.
2. Remove the disk from the slot.

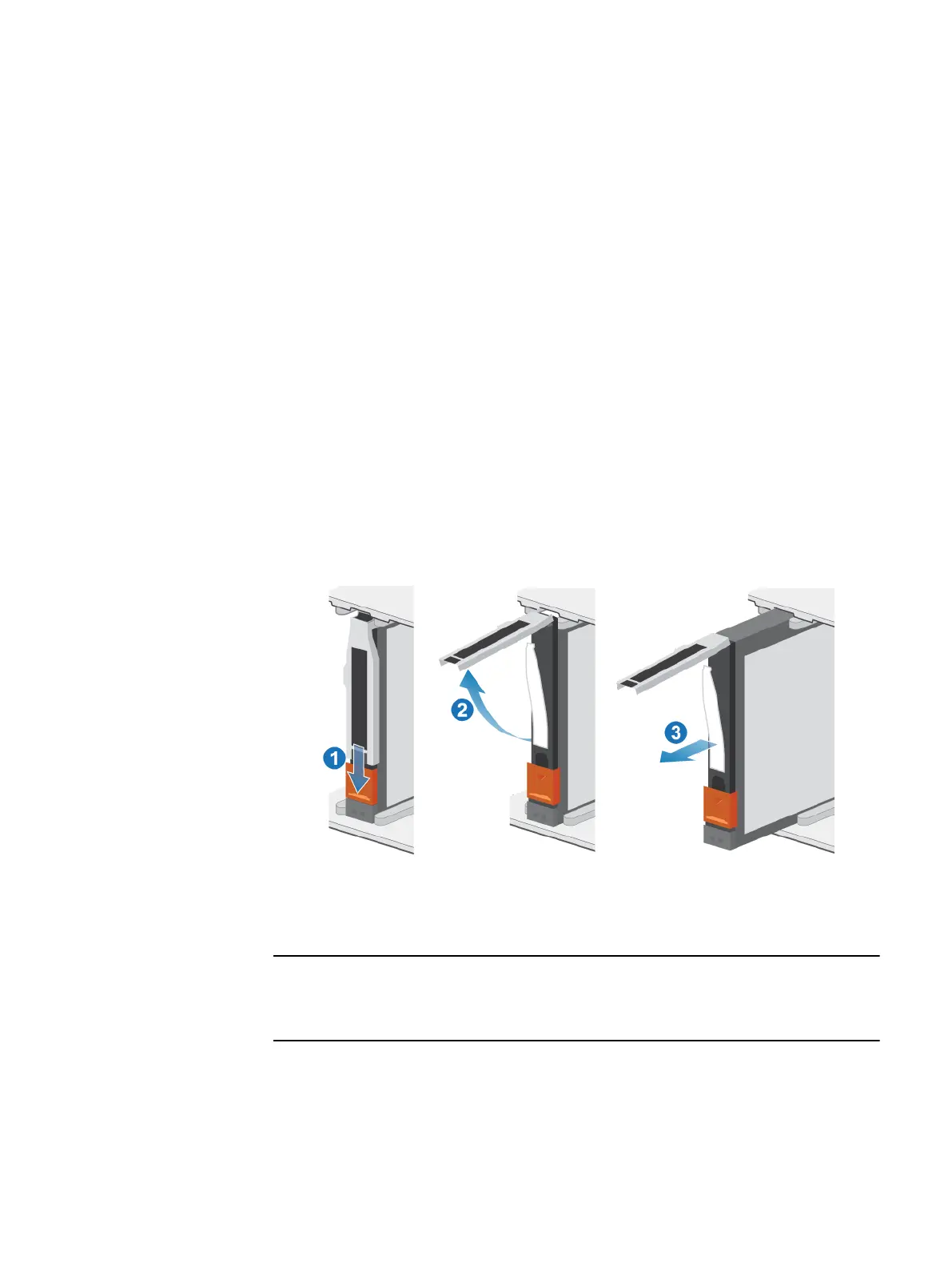

Figure 27
Removing a 2.5" disk
3. Place the disk on a static-free surface.
Install a 2.5" disk
Note
If you are installing multiple disks in a system that is powered up, wait at least 10
seconds before sliding the next disk into position.
Procedure
1. Align the disk with the guides in the slot.
2. With the latch fully opened, gently push the disk into the slot.
The latch begins to rotate downward when it meets the enclosure.
3. Push the orange button until the disk is fully seated in the slot.
Service Procedures
42 Unity 480/F, Unity 680/F, Unity 880/F Installation and Service Guide
