Transfer the 4-port card
If you are replacing the embedded module, remove the 4-port card from the old
embedded module and install it into the new embedded module. Do not transfer the 4-
port card while replacing a SP assembly.
Remove a 4-port card
Procedure
1. Remove the SFPs from the front of the embedded module.
2. Remove the air dam at the front of the embedded module by loosening the four
captive screws.
3. Push down the two blue tabs on the back of the 4-port card to release the 4-
port card.

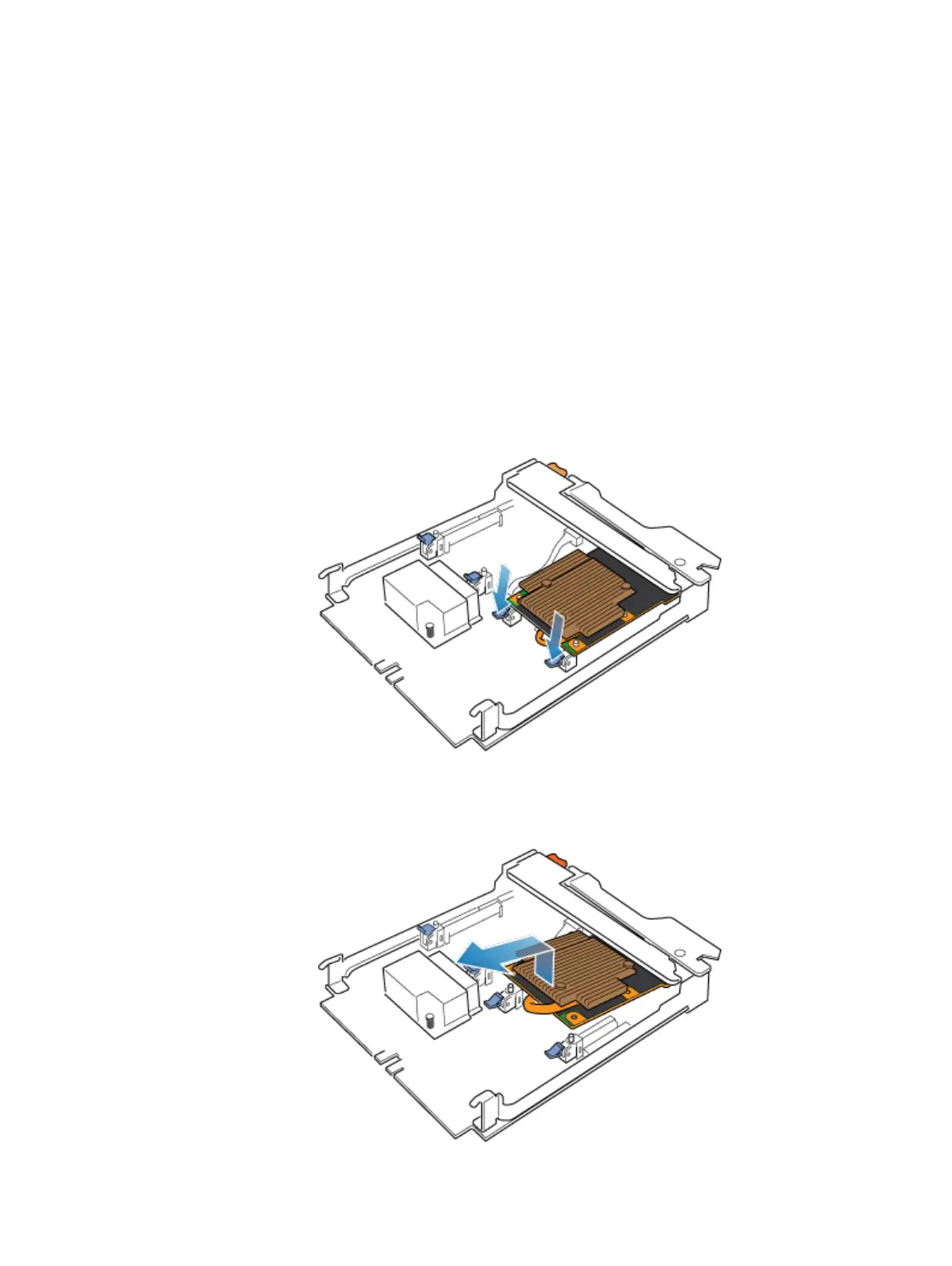

Figure 39 Opening the retaining tabs
4. Lift the 4-port card off the pegs, and pull the 4-port card away from the
embedded module.
Figure 40
Removing the 4-port card
Service Procedures
Transfer the 4-port card 53
