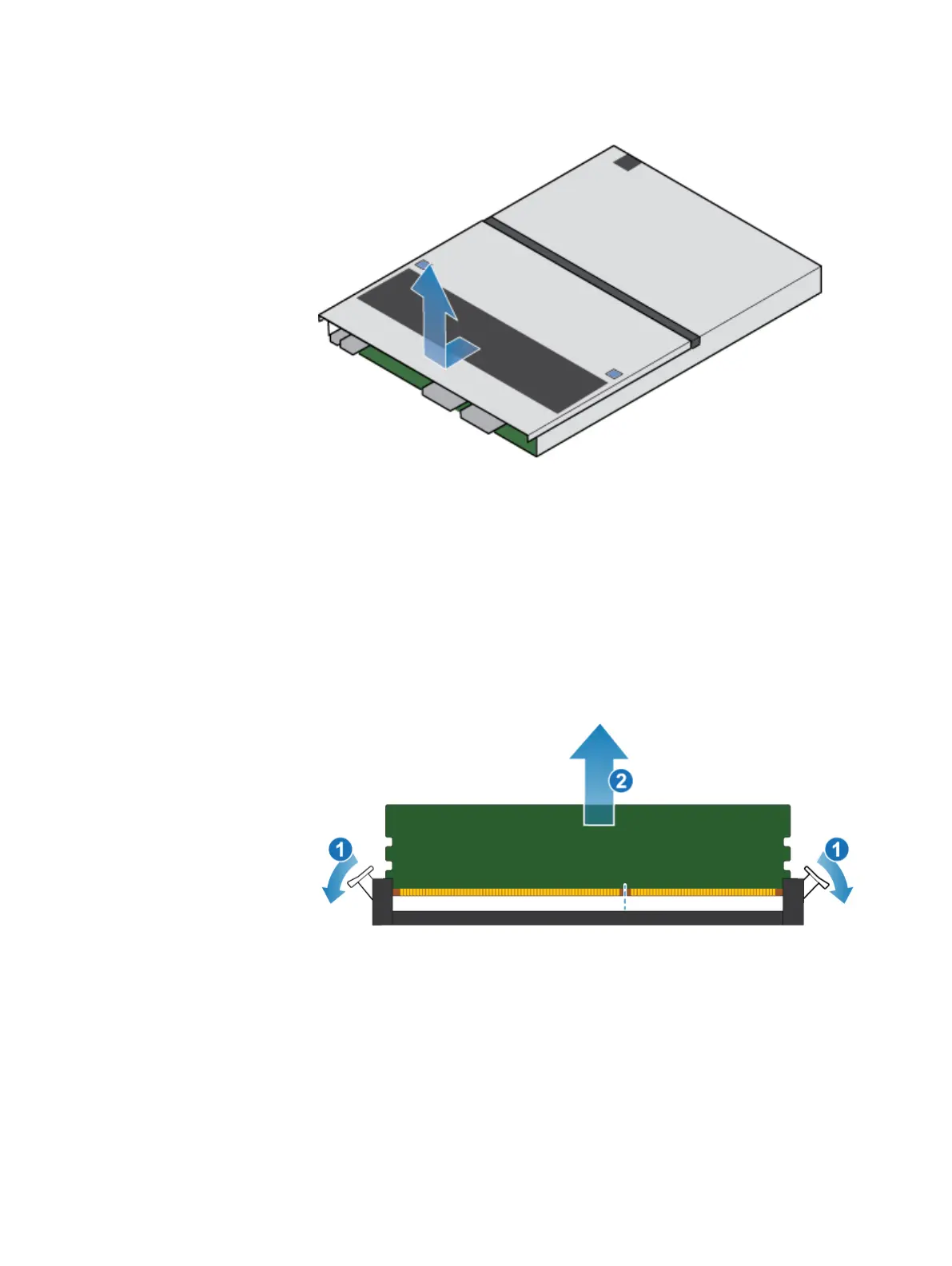

Figure 88 Removing the top cover
Remove the faulted dual inline memory module
Procedure
1. Locate the faulted DIMM in the SP assembly.
The DIMMs are identified by white or black retaining tabs.
2. Depress the white or black retaining tabs downward to free the DIMM from its
slot.
3. Remove the faulted DIMM.
Figure 89
Removing the DIMM
Install the dual inline memory module
Procedure
1. Touching only the outside edges of the DIMM, align the DIMM with the
connector.
2. Firmly push the carrier straight down into the connector.
When the DIMM is fully seated, you will hear a snap, and feel the connector
latches click into place.
Service Procedures
92 Unity 480/F, Unity 680/F, Unity 880/F Installation and Service Guide
