Dell EMC Unity 680/F User Manual

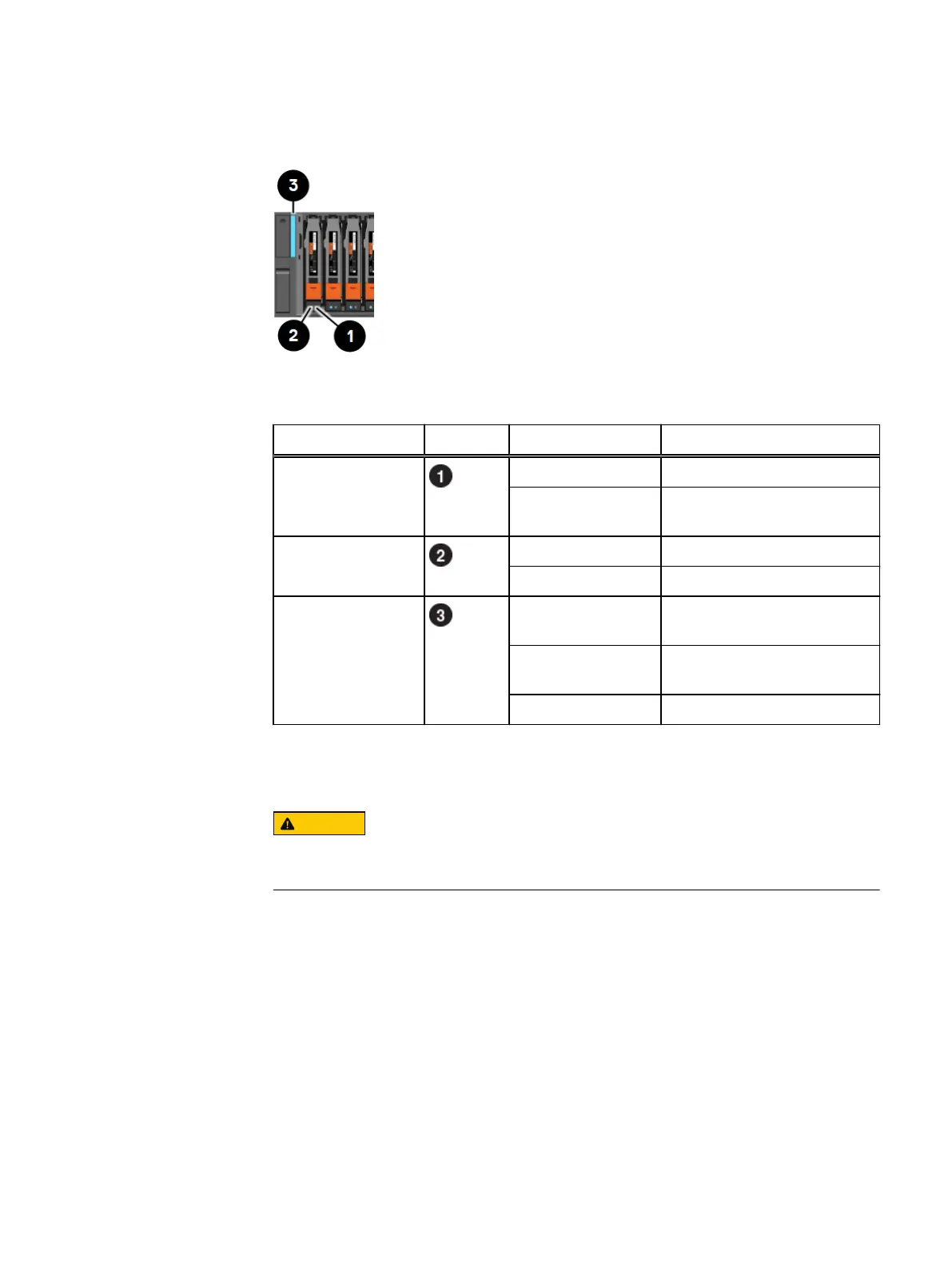

DPE front status LEDs
Figure 8 DPE and disk drive LEDs
Table 2 DPE and disk drive LEDs
LED Location State Description
Disk drive fault Amber Fault has occurred.
Off No fault has occurred, normal
operation.
Disk drive active Blue Disk drive activity.
Off Disk drive is powered off.
DPE fault/power Blue Power is on. No fault has
occurred, normal operation.
Amber Power is on. Fault has occurred
within the enclosure.
Off Power is off.
Installing the front bezel
CAUTION
Remove the plastic protective strip from the front of the bezel prior to placing
the system into operation. Failure to do so will cause the system to overheat.
Procedure
1. If present, remove the plastic protective strip from the front of the bezel.
2. Align the bezel with the enclosure.
3. Gently push the bezel into place on the cabinet until it latches.
4. If the bezel has a lock, insert the key that shipped with your enclosure into the
lock, and turn the key to lock the bezel.
Installation Procedures
20 Unity 480/F, Unity 680/F, Unity 880/F Installation and Service Guide
