Dell EMC Unity 680/F User Manual

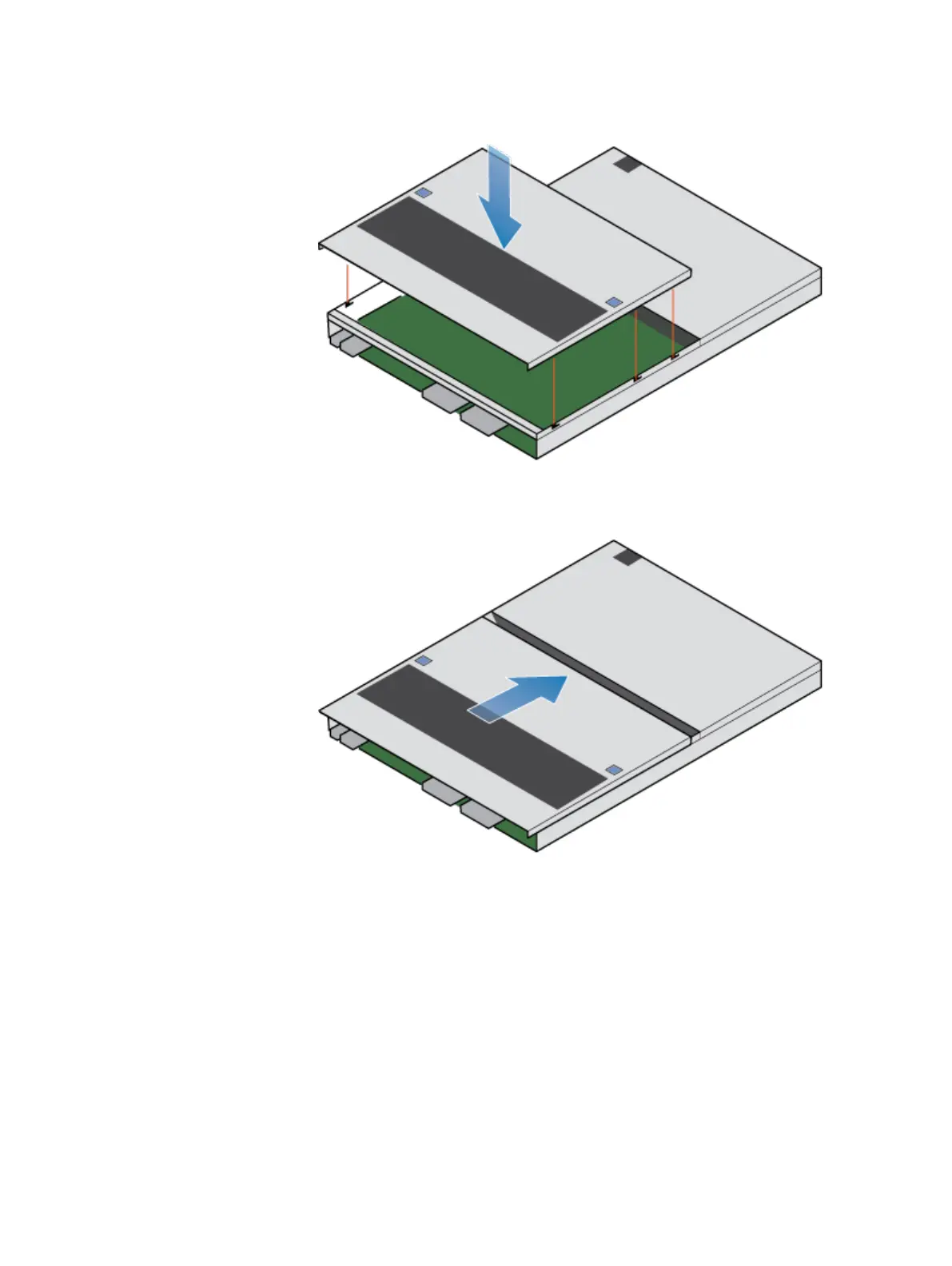

Figure 79 Aligning the top cover
2. Pull the top cover forward to secure it in place.
Figure 80 Securing the top cover
Install the SP assembly
Procedure
1. Align the pins on the top of the SP assembly with the grooves on the top of the
chassis.
2. Slide the SP assembly into the chassis until it stops, about halfway in.
Service Procedures
Install the SP assembly 85
