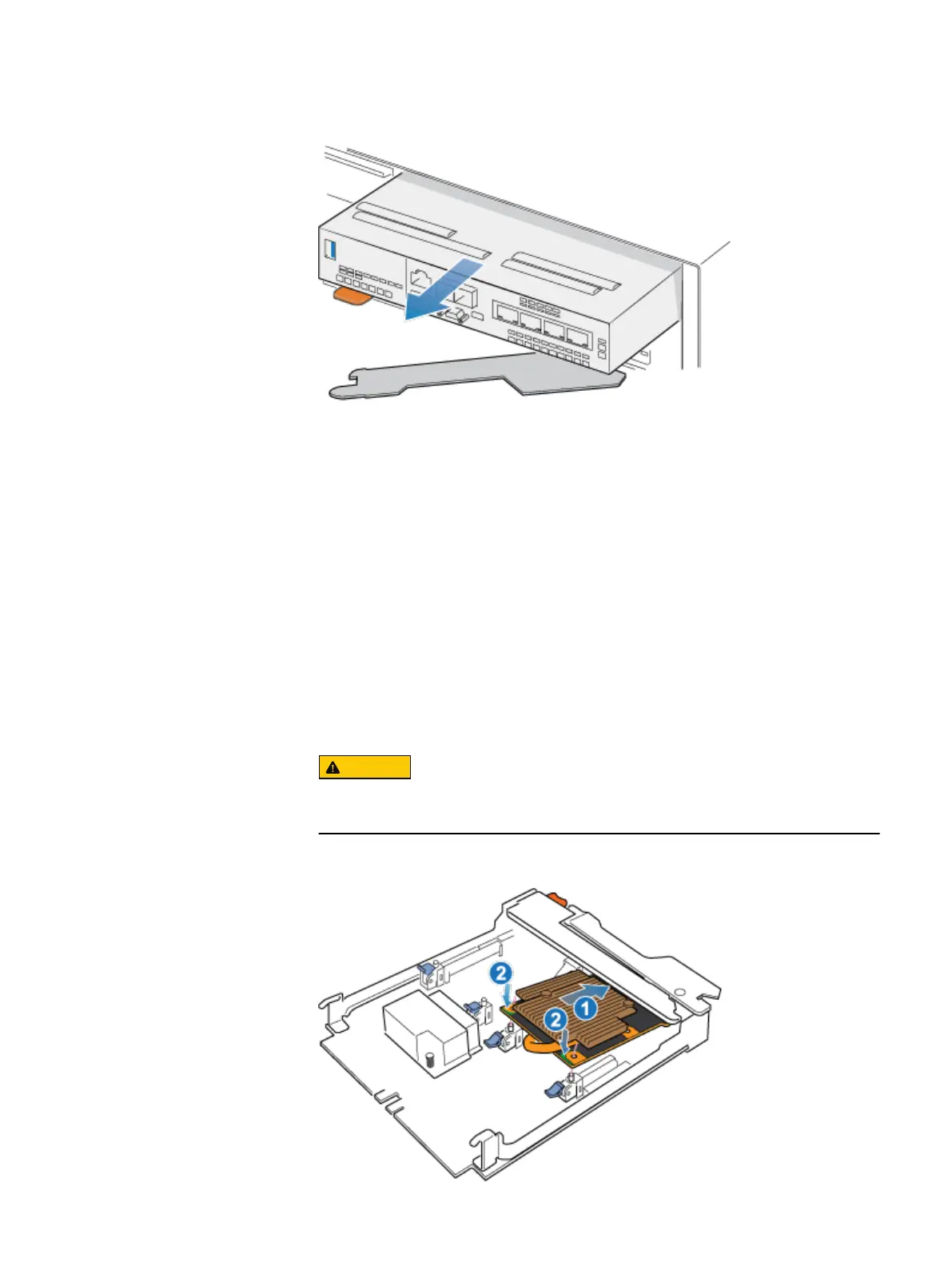

Figure 46 Removing the embedded module from the system
4. Remove the embedded module from the slot.
Identify the location for the new 4-port card
Ensure that you install the new 4-port card in the correct location.
Install the new 4-port card in slot 0 within the embedded module. When looking at the
embedded module from the front, slot 0 is on the left side of the embedded module.
Install a 4-port card
Procedure
1. Remove the air dam at the front of the embedded module.
2. Align the 4-port card in the embedded module so that the ports on the front line
up with the slots on the front of the embedded module.
3. Align the white pegs beneath the holes on the 4-port card.
CAUTION
Do not force the 4-port card into place. If the 4-port card does not
smoothly seat, re-align the pegs and try again.
Figure 47 Seating the 4-port card
Service Procedures
58 Unity 480/F, Unity 680/F, Unity 880/F Installation and Service Guide
