Dell EMC Unity 680/F User Manual

2. Push the power supply into the SP assembly until it clicks into place.

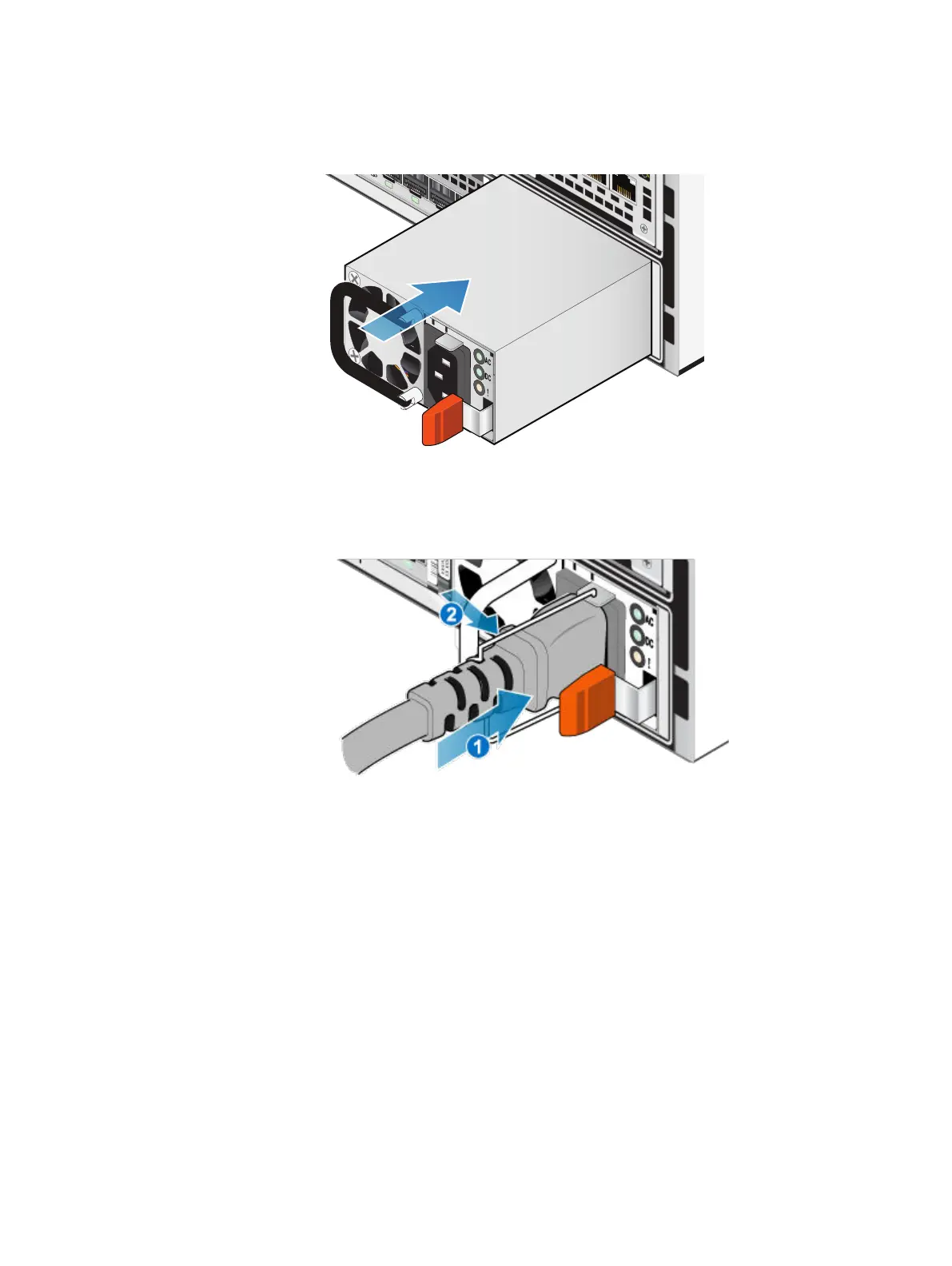

Figure 34 Installing a power supply
0 1 2 3
XXX XXX XXXX XX
REV:XXX
1
3. Connect the power cable to the power supply and secure the cord with the
retention bail at the connector.
Figure 35 Inserting the power cable
Verifying the operation of the new part in Unisphere
Verify that the new part is recognized by your system, and operating correctly.
Procedure
1. In Unisphere, select System View.
2. On the Summary page, confirm that the system status is OK.
3. Select the Enclosures page.
4. Verify that the part appears with the OK status in the enclosure view. You may
need to refresh Unisphere by clicking on the refresh icon next to the
Enclosures view.
If the system health monitor shows the part as faulted, contact your service
provider.
Returning a faulted part
We appreciate the return of defective material within 5 business days (for US
returns). For International customers, please return defective material within 5-10
Service Procedures
48 Unity 480/F, Unity 680/F, Unity 880/F Installation and Service Guide
