Install the top cover on the SP assembly
Procedure
1. Position the top cover over the SP assembly and align it with the slots in the
sides at the rear of the SP assembly.

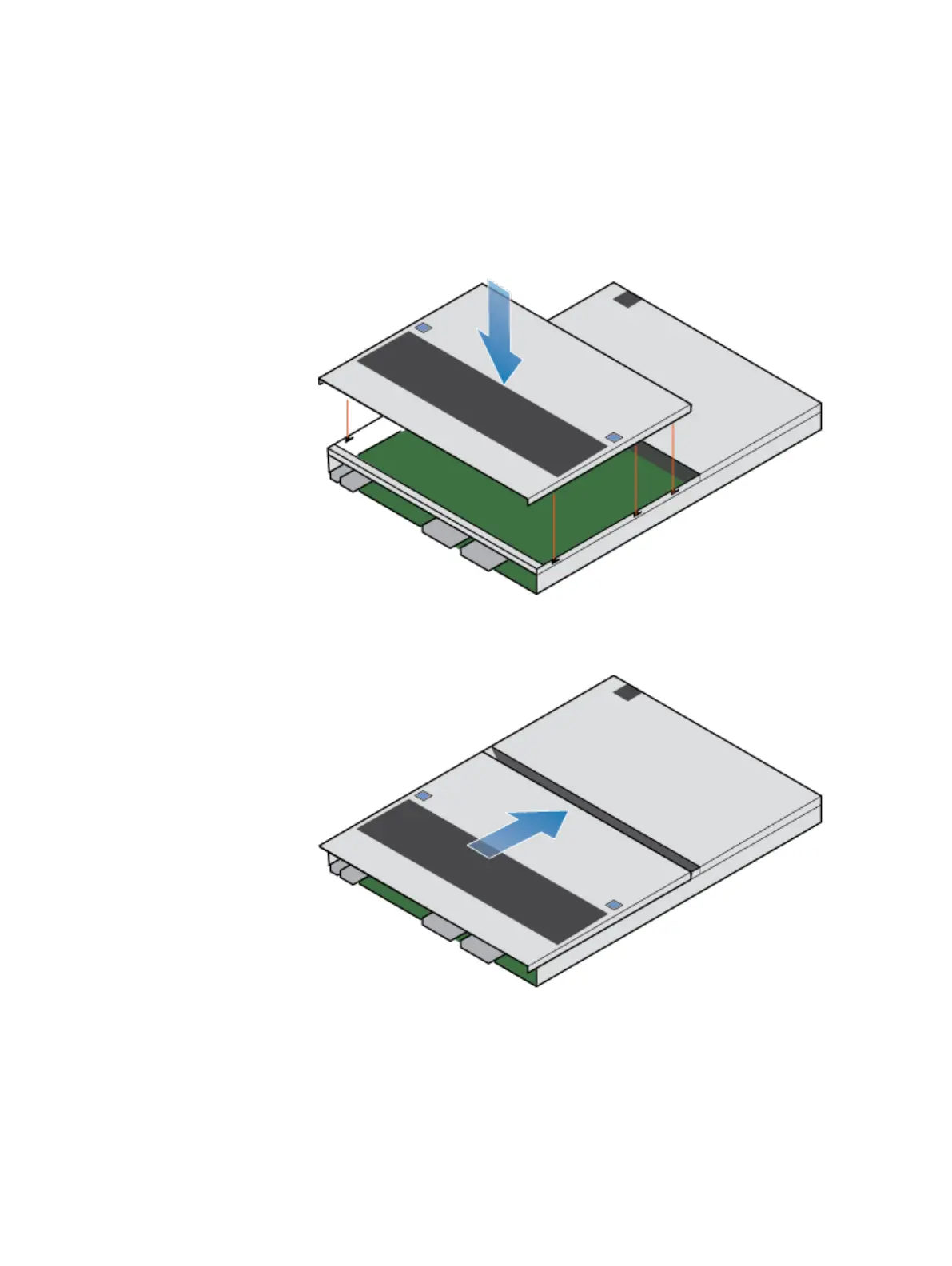

Figure 119 Aligning the top cover
2. Pull the top cover forward to secure it in place.
Figure 120
Securing the top cover
Install the SP assembly
Procedure
1. Align the pins on the top of the SP assembly with the grooves on the top of the
chassis.
2. Slide the SP assembly into the chassis until it stops, about halfway in.
Service Procedures
114 Unity 480/F, Unity 680/F, Unity 880/F Installation and Service Guide
