Dell EMC Unity 680/F User Manual

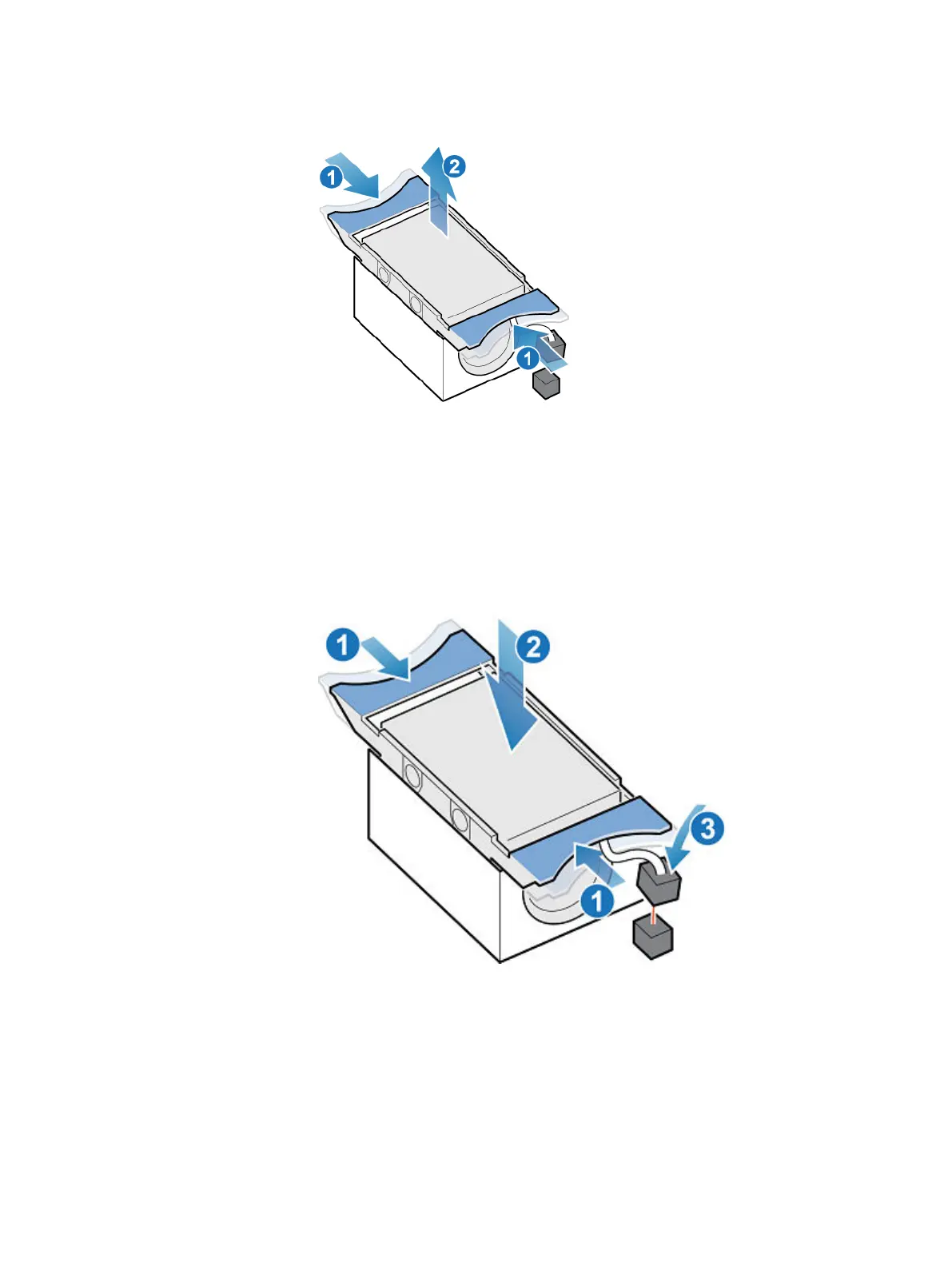

Figure 77 Removing the fan from the motherboard
Install a new fan module
Procedure
1. Place the fan module into the mounting position in the SP assembly.
2. Squeeze the blue tabs and press downward to lock the fan module into position.
3. Connect the fan module power cable to the connector on the motherboard.
Figure 78
Installing the fan module
Install the top cover on the SP assembly
Procedure
1. Position the top cover over the SP assembly and align it with the slots in the
sides at the rear of the SP assembly.
Service Procedures
84 Unity 480/F, Unity 680/F, Unity 880/F Installation and Service Guide
