Install a 4-port card
Procedure
1. Align the 4-port card in the embedded module so that the ports on the front line
up with the slots on the front of the embedded module.
2. Align the white pegs beneath the holes on the 4-port card.
CAUTION
Do not force the 4-port card into place. If the 4-port card does not
smoothly seat, re-align the pegs and try again.

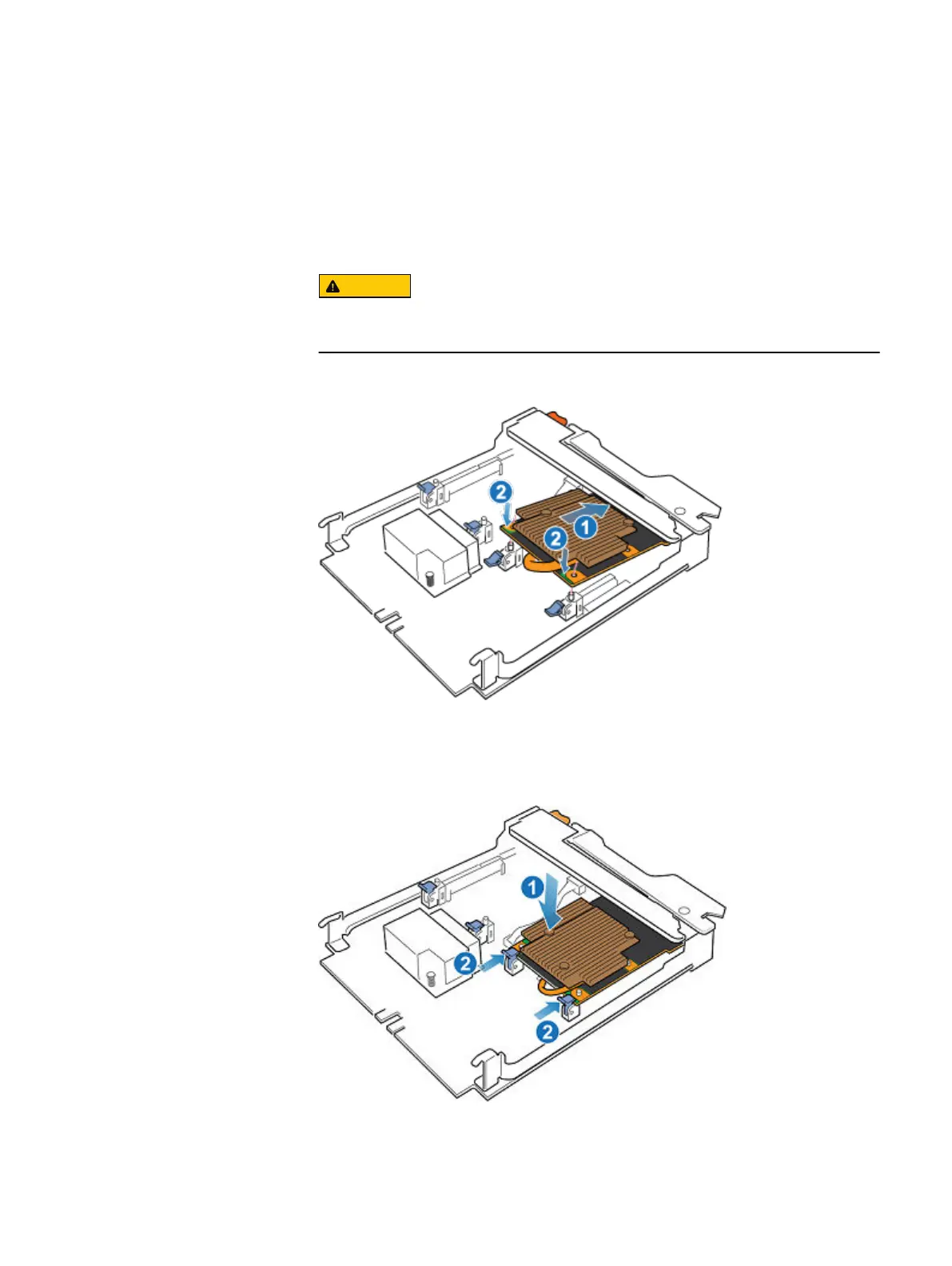

Figure 41 Seating the 4-port card
3. Gently push down on the upper-left circle on the 4-port card.
4. Push up on the blue tabs until they lock into place.
Figure 42
Locking the 4-port card into position
5. Replace the air dam and tighten the four captive screws.
6. Install the SFPs into the embedded module.
Service Procedures
54 Unity 480/F, Unity 680/F, Unity 880/F Installation and Service Guide
