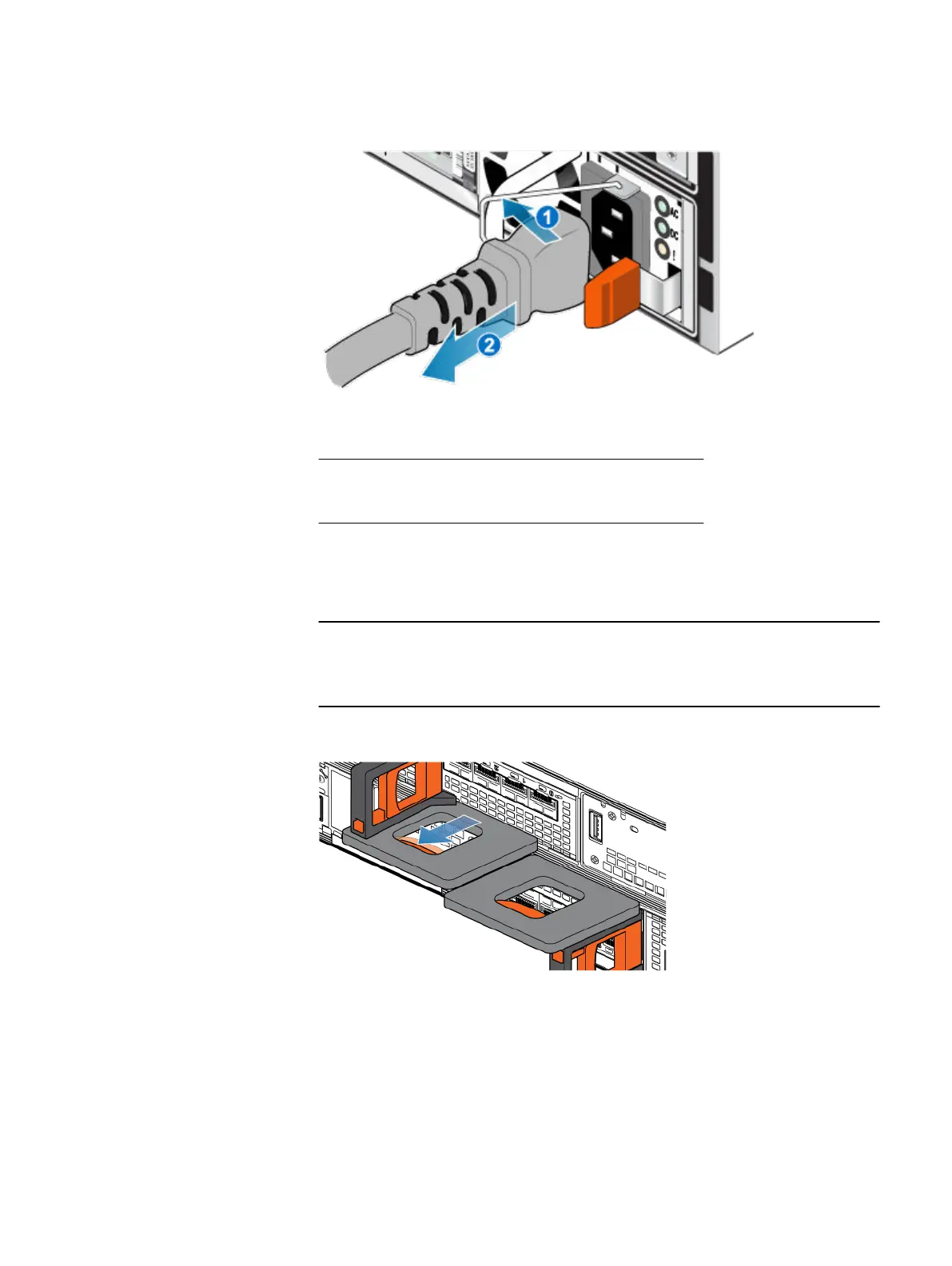

Figure 110 Removing the power cable
2. Disconnect the network and all other cables from the back of the I/O modules
and network ports on the SP assembly.
Do not remove any cables from the other SP assembly.
3. Pull the orange release trigger while gently pushing in on the SP assembly.
The hook disengages from the locking mechanism, and the release tab slides
out.
The SP assembly comes completely out of the chassis. Be prepared to support
the SP assembly to avoid dropping it.
Figure 111 Disengaging the locking mechanism
4. Use the release handle to pull the SP assembly outward enough to grasp the
sides with both hands. Then, with both hands supporting the SP assembly, pull
the SP assembly fully out of the enclosure.
Service Procedures
Remove the SP assembly 109
