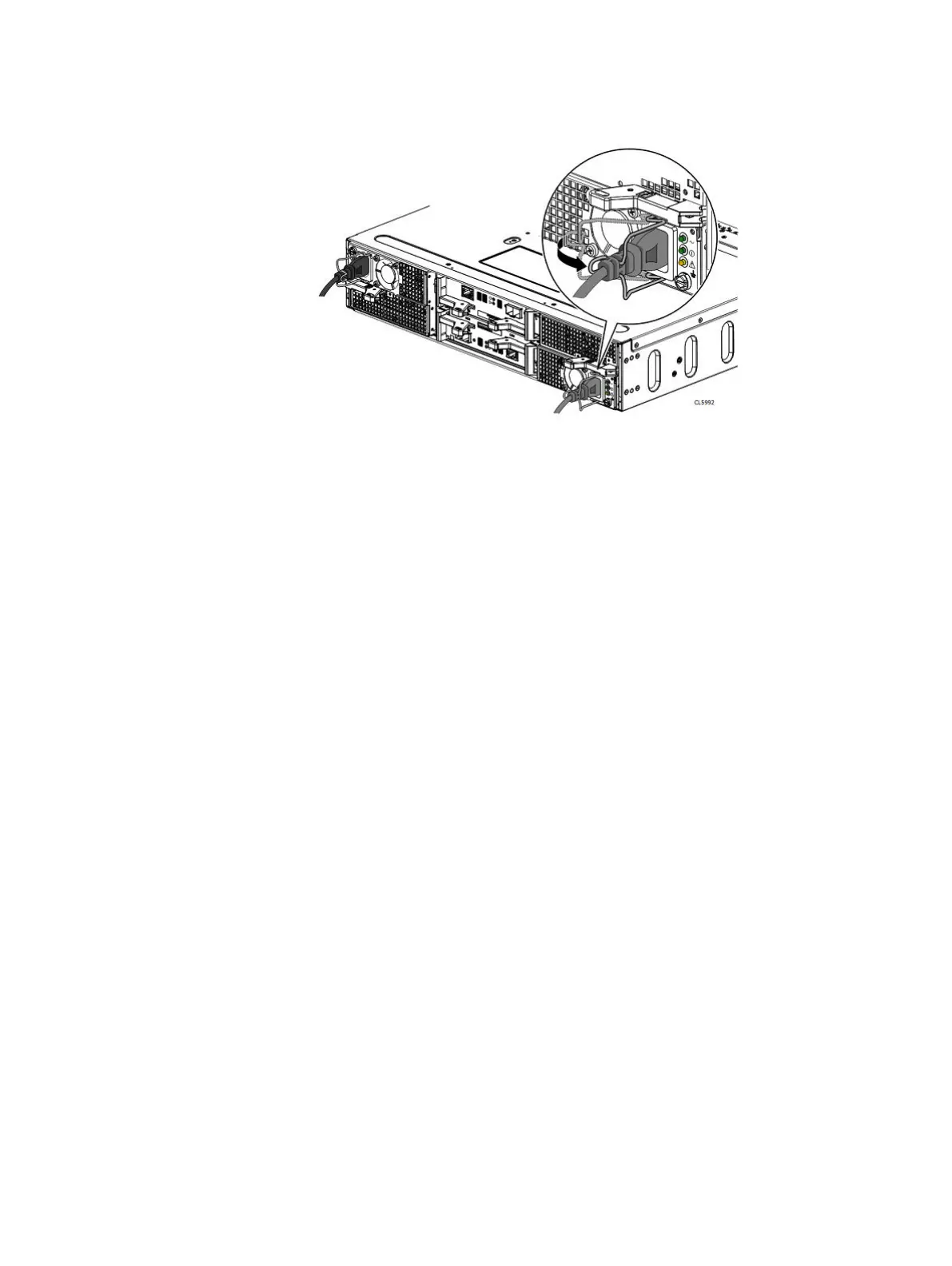

Figure 26 Connecting power cables to the 2U, 25-drive DAE
3. Secure each power cable to the power supply with the cable retention bail.
4. Connect the power to the each DAE as follows:
a. Connect the power cable for LCC A to PDU A.
b. Connect the power cable for LCC B to PDU B.
The enclosures power up immediately once the cable is connected.
5. Bundle and secure the cables as necessary with tie wraps.
Installation Procedures
Connecting power to the DAE 39
