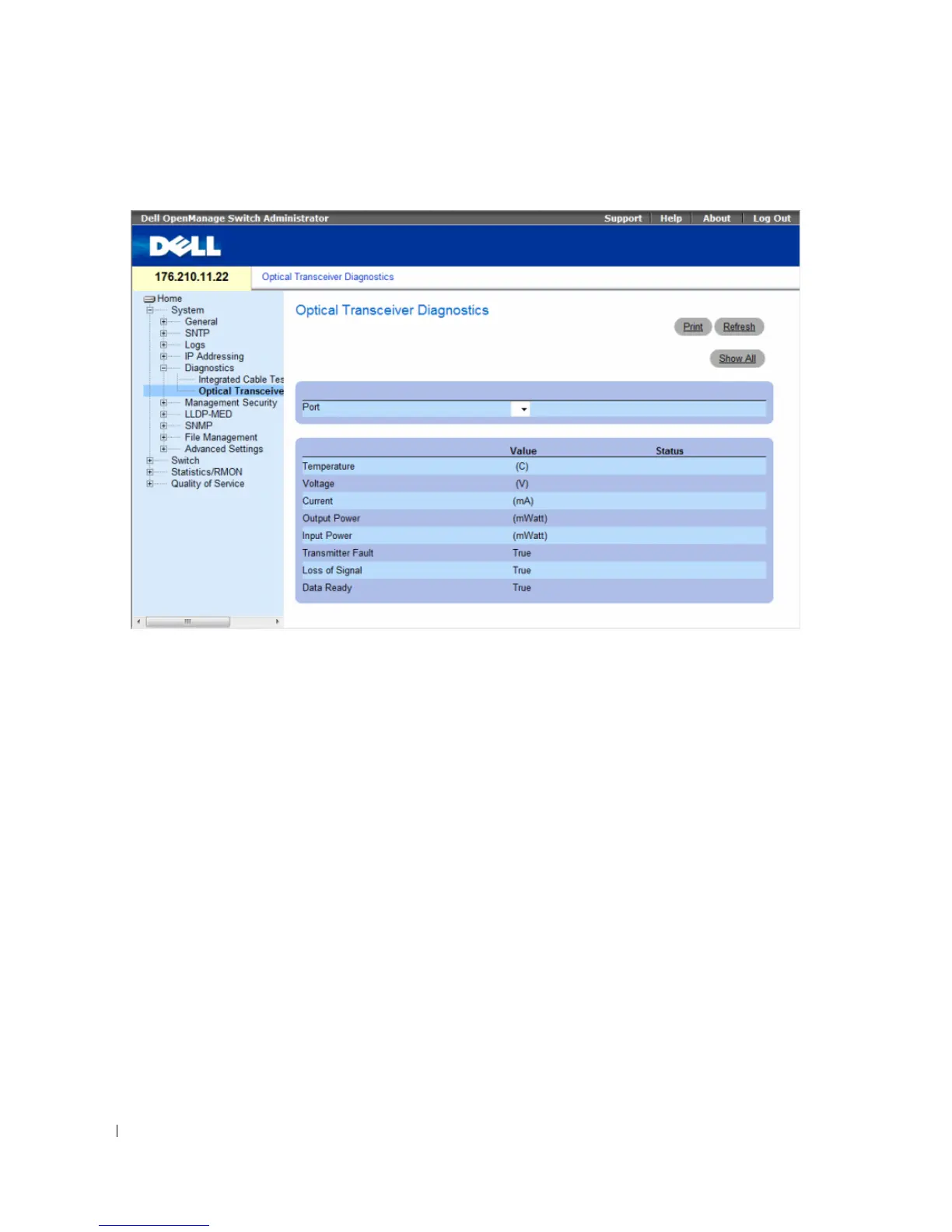

Figure 6-53. Optical Transceiver Diagnostics
The Optical Transceiver Diagnostics page contains the following fields:
• Port — The port number on which the cable is tested.
•
Temperature — The temperature (C) at which the cable is operating.
•
Voltage — The voltage at which the cable is operating.
•
Current — The current at which the cable is operating.
•
Output Power — The rate at which the output power is transmitted.
•
Input Power — The rate at which the input power is transmitted.
•
Transmitter Fault — Indicates if a fault occurred during transmission.
•
Loss of Signal — Indicates if a signal loss occurred in the cable.
•
Data Ready — The transceiver has achieved power up and data is ready.
Displaying the Optical Transceiver Diagnostics Test Results Table
1 Open the Optical Transceiver Diagnostics page.
2 Click Show All .
The test runs and the
Optical Transceiver Diagnostics Table page opens.
