Dell PowerConnect 3524P User Manual

Using Dell OpenManage Switch Administrator 71
Device Representation

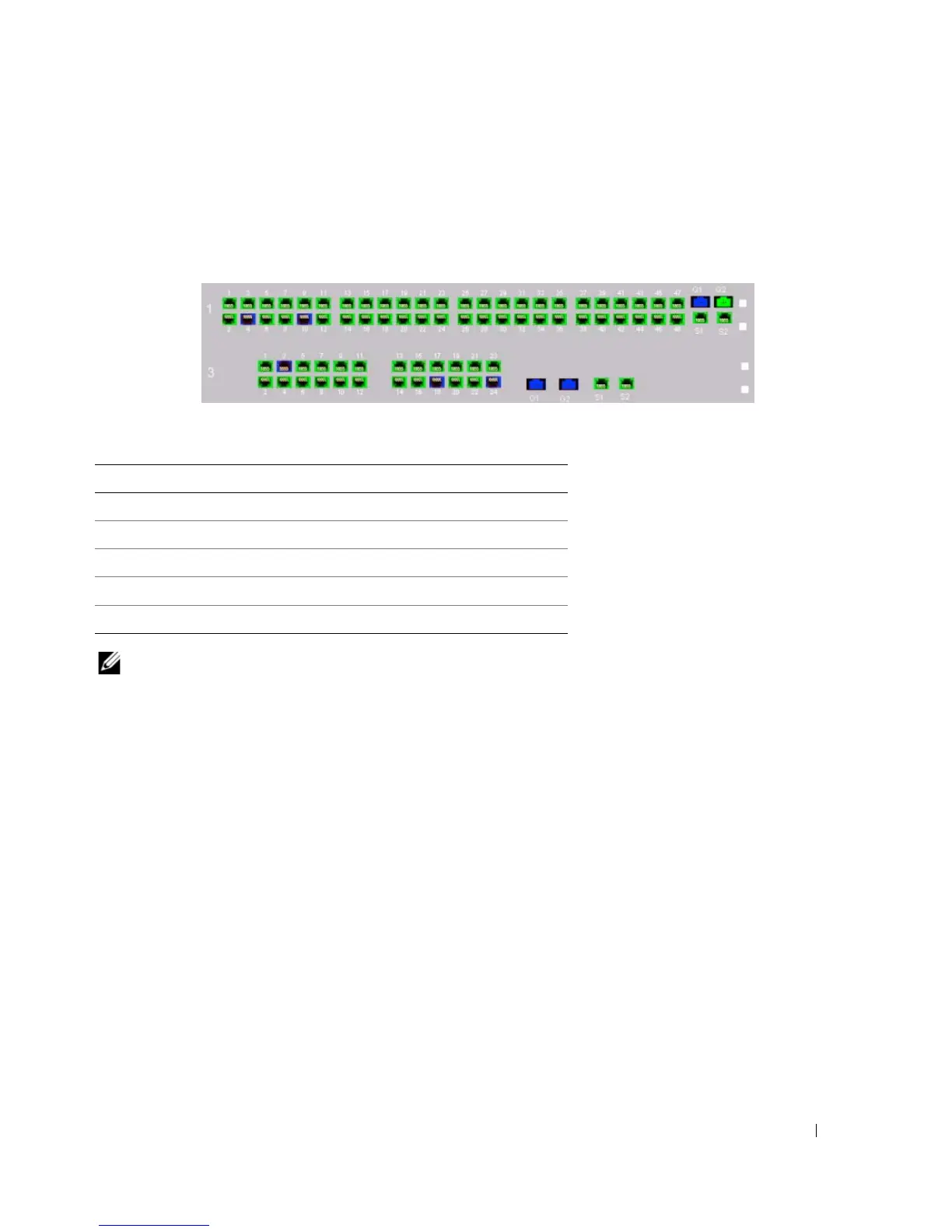

The home page contains a graphical representation of the device front panel.
Figure 5-2. Dell PowerConnect™ Device Port Indicators
The port coloring indicates if a specific port is currently active. Ports can be the following colors:
Table 5-2. PowerConnect Port and Stacking Indicators
NOTE: The Port LEDs are not reflected in PowerConnect™ front panel in the OpenManage Switch Administrator.
LED status can only be determined by viewing the actual device. However, the Stacking LEDs reflect the Stacking
port status. For more information about LEDs, see LED Definitions.
Component Description
Port Indicators
Green The port is currently enabled.
Red An error has occurred on the port.
Blue The port is currently disabled.
Red The device is not currently linked in a stack.

Dell PowerConnect 3524P Specifications

General

MAC address table	8000 entries
Maximum data transfer rate	0.1 Gbit/s
Supported data transfer rates	10/100 Mbps
10G support	-
Number of VLANs	256
Flow control support	Yes
Networking standards	IEEE 802.1D, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1w, IEEE 802.3ad
Dimensions (WxDxH)	440 x 387 x 43.2 mm
Power requirements	100-240VAC, 50-60Hz
Networking features	Gigabit Ethernet, Fast Ethernet
Authentication method	RADIUS, TACACS+
Connectivity technology	Wired
Switch type	Managed
Switch layer	L2
Data link protocols	Ethernet
Supported network protocols	HTTP, HTTPS/SSL, SSH
Power connector	DC-in jack
SFP/SFP+ slots quantity	2
Basic switching RJ-45 Ethernet ports quantity	24
Product color	Black
Storage temperature (T-T)	-20 - 70 °C
Operating temperature (T-T)	0 - 45 °C
Storage relative humidity (H-H)	10 - 95 %
Operating relative humidity (H-H)	10 - 90 %

Weight and Dimensions

Weight	8000 g
