30 Hardware Description
Physical Dimensions
The PowerConnect 3524/P and PowerConnect 3548/P devices have the following physical dimensions:
PoE Model:
•
Width
— 440 mm (17.32 inch)
•
Depth
— 387 mm (15.236 inch)
•
Height
— 43.2 mm (1.7 inch)
Non-PoE Device:
•
Width
— 440 mm (17.32 inch)
•
Depth
— 257 mm (10.118 inch)
•
Height
— 43.2 mm (1.7 inch)
LED Definitions
The front panel contains light emitting diodes (LED) that indicate the status of links, power supplies,
fans, and system diagnostics.
Port LEDs
Each 10/100/1000 Base-T port and 10/100 Base-T port has two LEDs. The speed LED is located on the
left side of the port, while the link/duplex/activity LED is located on the right side.

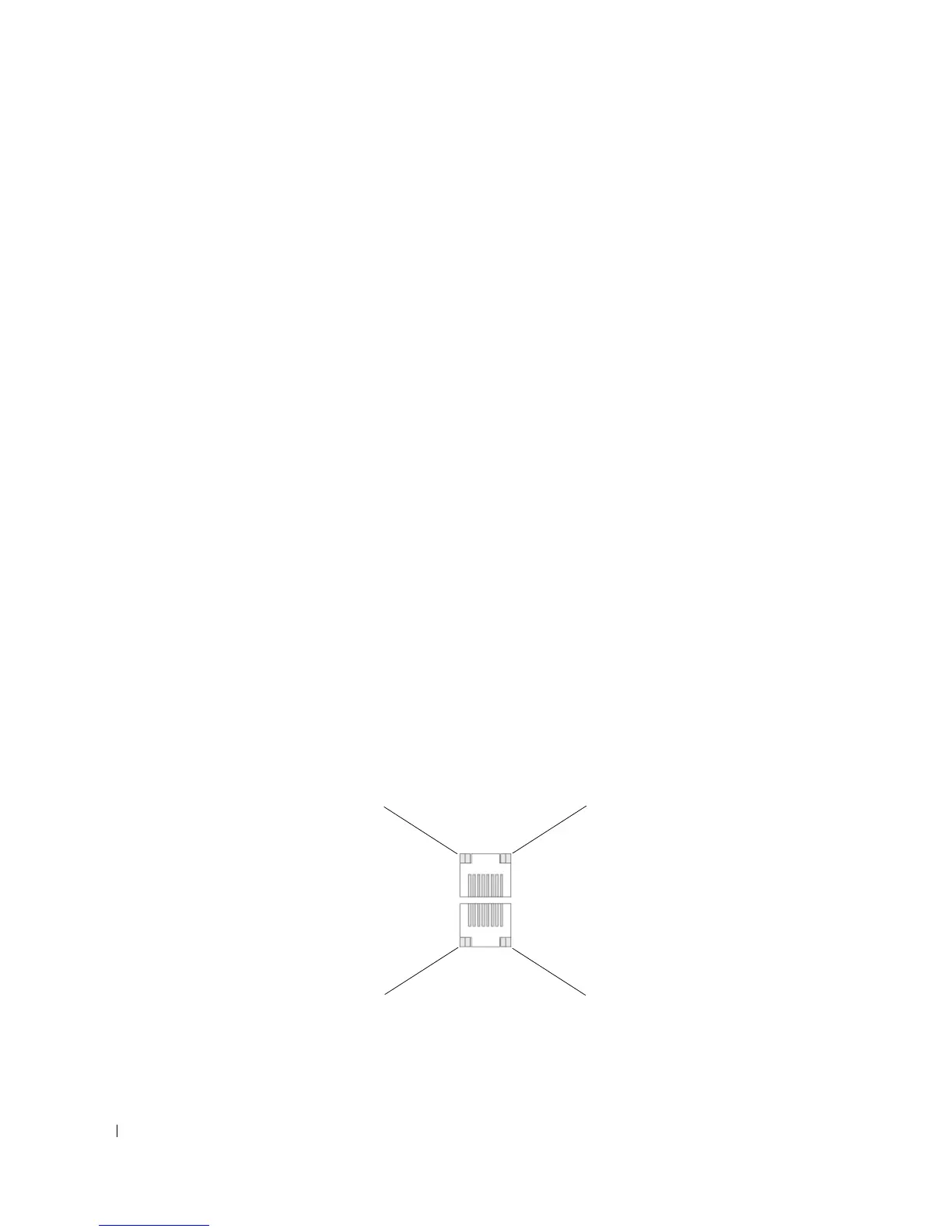

The following figure illustrates the 10/100 Base-T port LEDs on The PowerConnect 3524 /P and
PowerConnect 3548/P switches:
Figure 2-6. RJ-45 Copper Based 10/100 BaseT LEDs
The RJ-45 100 Base-T port on the PowerConnect 3524 /P and PowerConnect 3548/P has two LEDs
marked as LNK/ACT.
Speed/LNK/ACT
FDX
Speed/LNK/ACT
FDX
