Defining VLAN Protocol Groups Using CLI Commands
The following table summarizes the equivalent CLI commands for configuring Protocol Groups.
Table 7-30. VLAN Protocol Groups CLI Commands
The following example maps ip-arp protocol to group "213":
Adding Interfaces to Protocol Groups
The Protocol Port page adds interfaces to Protocol groups.
To open the Protocol Port page, click Switch → VLAN → Protocol Port in the tree view.

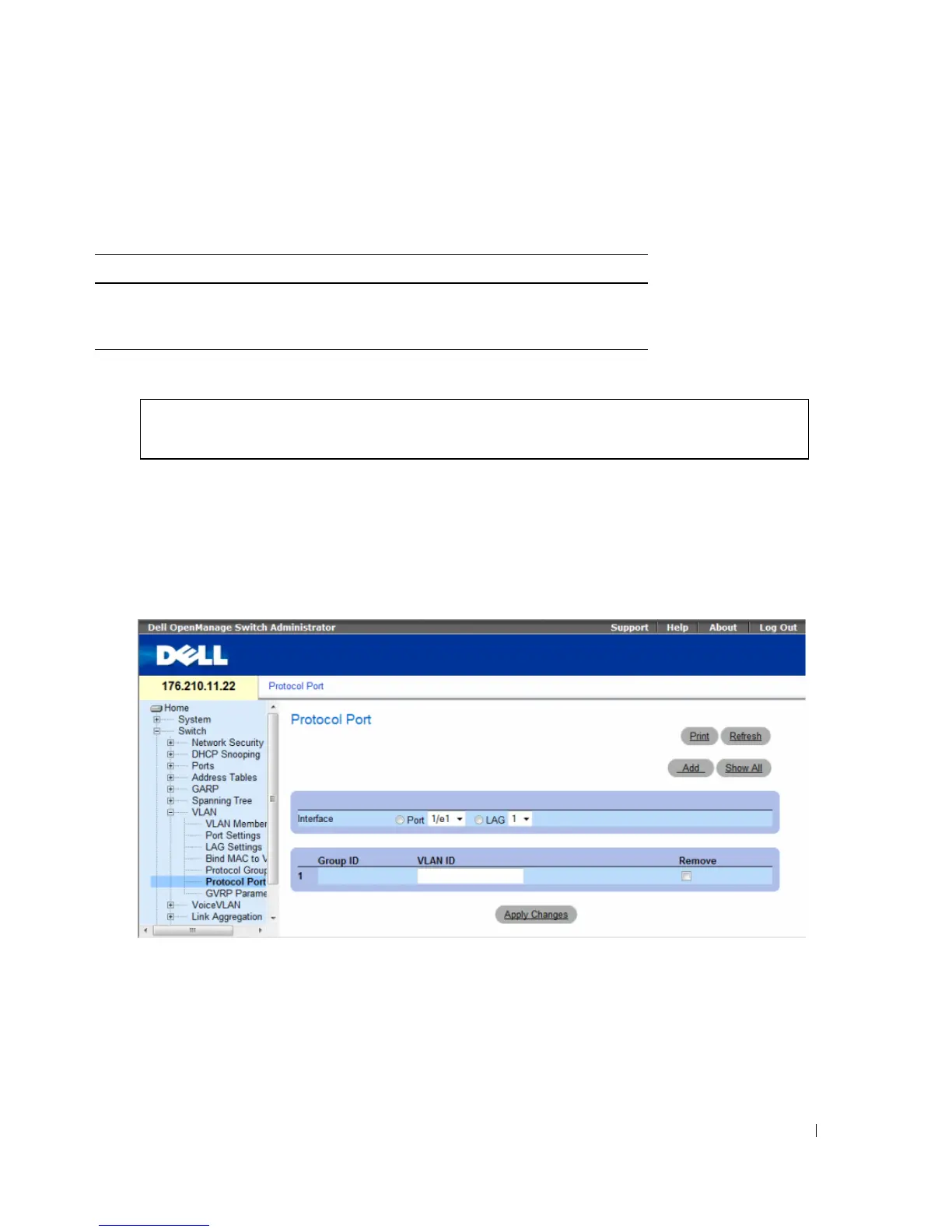

Figure 7-57. Protocol Port
•
Interface
— Port or LAG number added to a protocol group.
•
Group ID
— Protocol group ID to which the interface is added. Protocol group IDs are defined in the
Protocol Group Table.
CLI Command Description
map protocol protocol [encapsulation]
protocols-group group
Maps a protocol to a protocol group.
Protocol groups are used for protocol-
based VLAN assignment.
Console (config)# vlan database
Console (config-vlan)# map protocol ip-arp protocols-group 213
