• VLAN ID — Attaches the interface to a user-defined VLAN ID. The VLAN ID is defined on the
Create a New VLAN page. Protocol ports can either be attached to a VLAN ID or a VLAN name.
The possible values are 1-4095. VLAN 4095 is the discard VLAN.
•
Remove — Indicates whether to remove the selected interface from its protocol group.
–
Checked — Removes the selected interface.
–
Unchecked — Maintains the selected interface.
Adding a New Protocol Port to a VLAN
Protocol ports can be defined only on ports that are defined as General in the VLAN Port Settings page.
1
Open the Protocol Port page.
2 Click Add .
The
Assign Protocol Port To VLAN page opens.

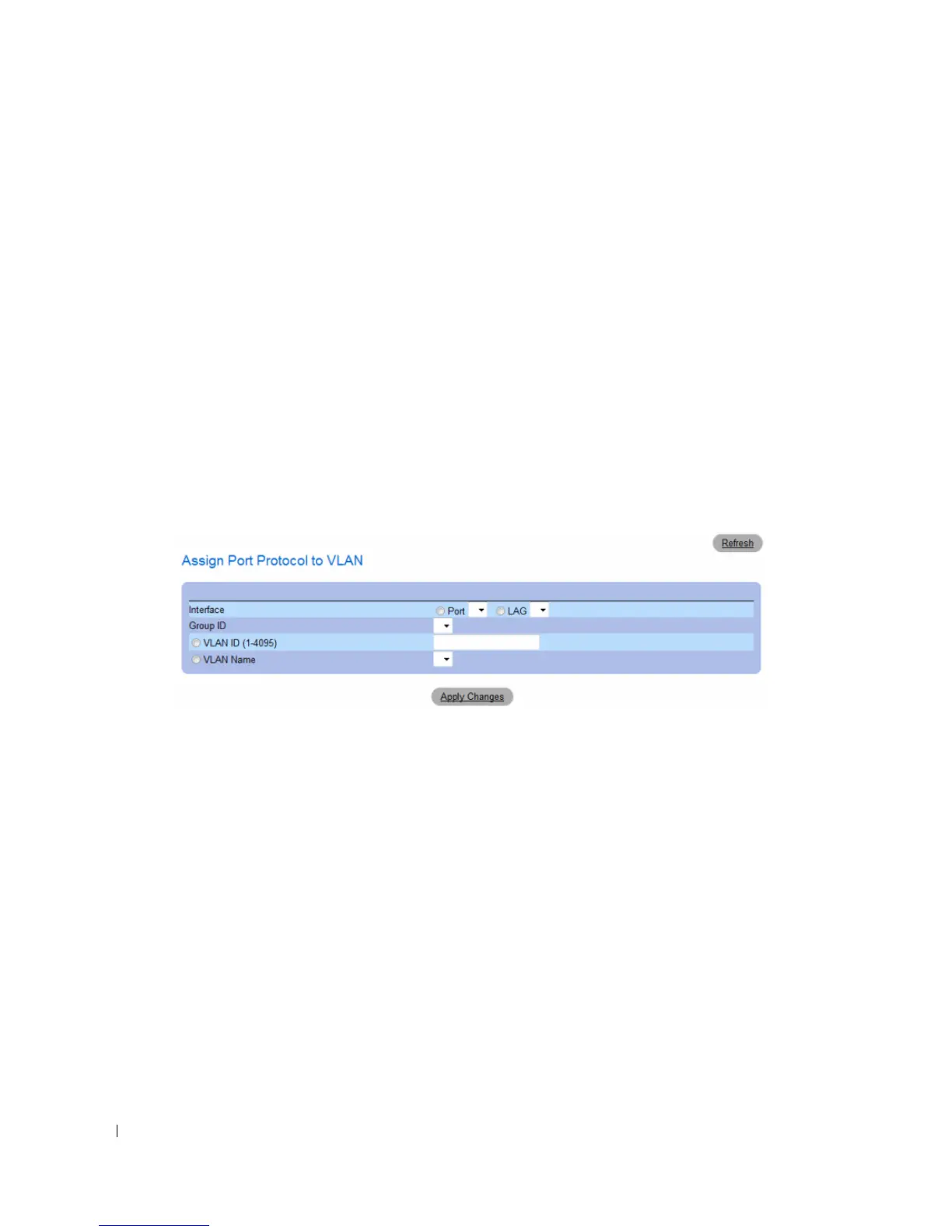

Figure 7-58. Assign Protocol Port To VLAN
3 Complete the fields in the dialog.
4 Click Apply Changes .
The new VLAN protocol group is added to the
Protocol Port Table , and the device is updated.
