Dell PowerConnect 3524P

Configuring System Information 209

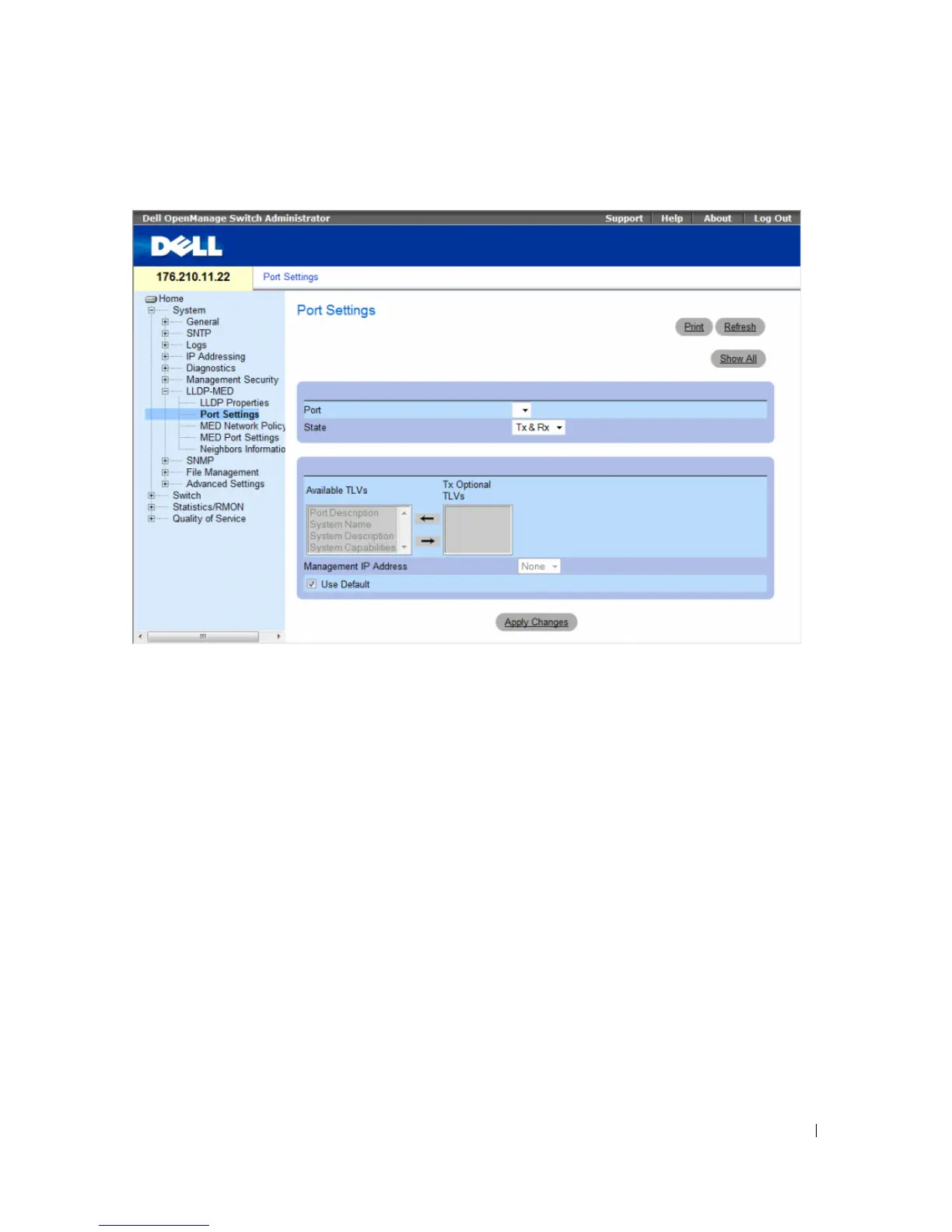

Figure 6-77. Port Settings
• Port — Contains a list of ports on which LLDP is enabled.
•
State — Indicates the port type on which LLDP is enabled. The possible field values are:
–
Tx Only — Enables transmitting LLDP packets only.
–
Rx Only — Enables receiving LLDP packets only.
–
Tx & Rx — Enables transmitting and receiving LLDP packets. This is the default value.
–
Disable — Indicates that LLDP is disabled on the port.
•
Available TLVs — Contains a list of available TLVs that can be advertised by the port. The possible
field values are:
–
Port Description — Advertises the port description.
–
System Name — Advertises the system name.
–
System Description — Advertises the system description.
–
System Capabilities — Advertises the system capabilities.
