Dell PowerConnect 3524P

212 Configuring System Information
• VLAN Type — Indicates the VLAN type for which the network policy is defined. The possible field
values are:
–
Tagged — Indicates the network policy is defined for tagged VLANs.
–
Untagged — Indicates the network policy is defined for untagged VLANs.
•
User Priority — Defines the priority assigned to the network application. The range is 0-7.
•
DSCP Value — Defines the DSCP value assigned to the network policy. The range is 0-63.
Adding an MED Network Policy
1 Open the MED Network Policy page.
2 Click Add .
The
Add Network Policy page opens.

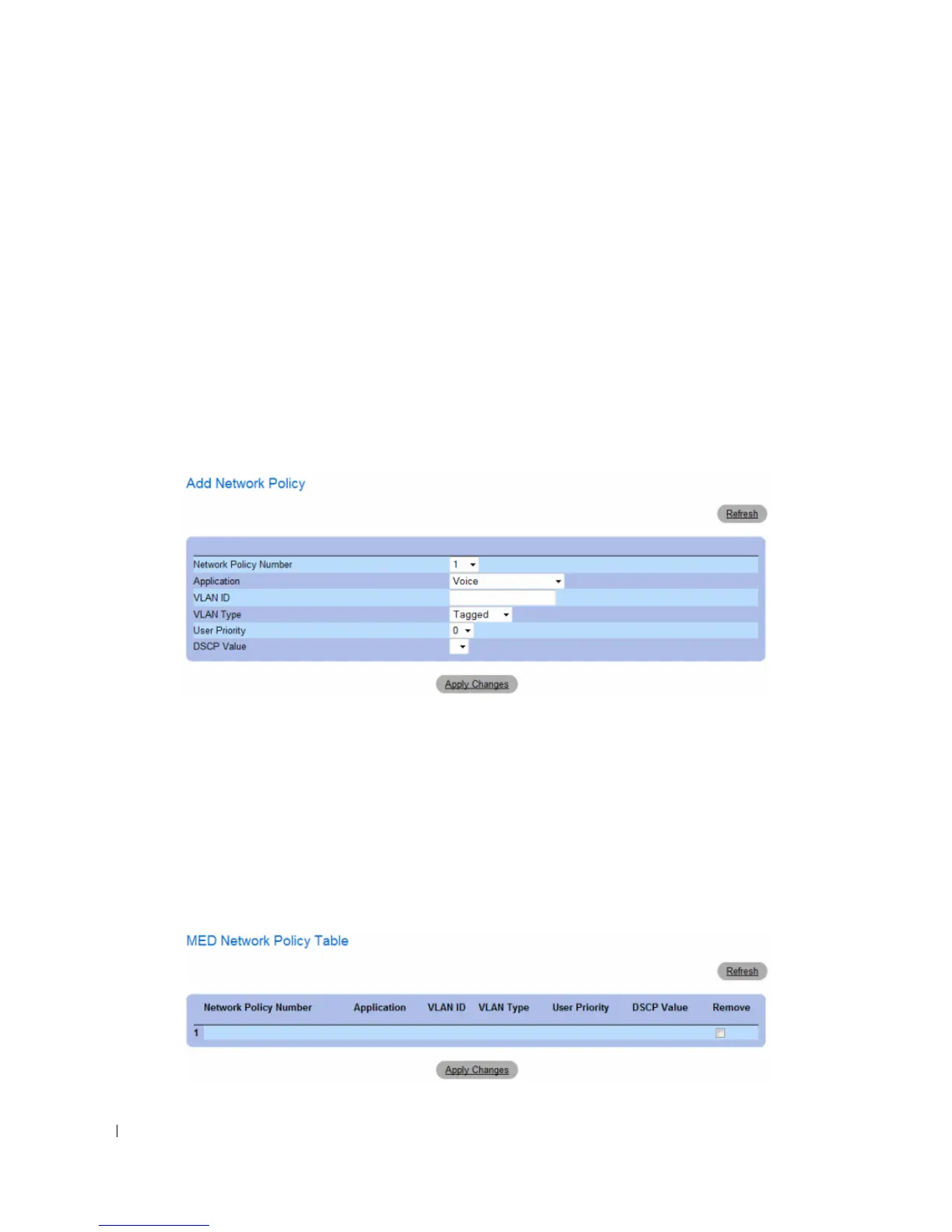

Figure 6-80. Add Network Policy
3 Define the fields.
4 Click Apply Changes .
The new network policy is added, and the device is updated.
Displaying the MED Network Policy Table:
1
Open the MED Network Policy page.
2 Click Show All .
The
MED Network Policy Table opens.
Figure 6-81. MED Network Policy Table
